TRANSMISSION AND GEARCASES
Transmission / Gearcase Specification Chart
Transmission Lubrication
The transmission lubricant levels should be checked and
changed in accordance with the maintenance schedule.
• Be sure vehicle is positioned on a level surface
wh
en checking or changing fluid.
• Check vent hose to be sure it is routed properly
and
unobstructed.

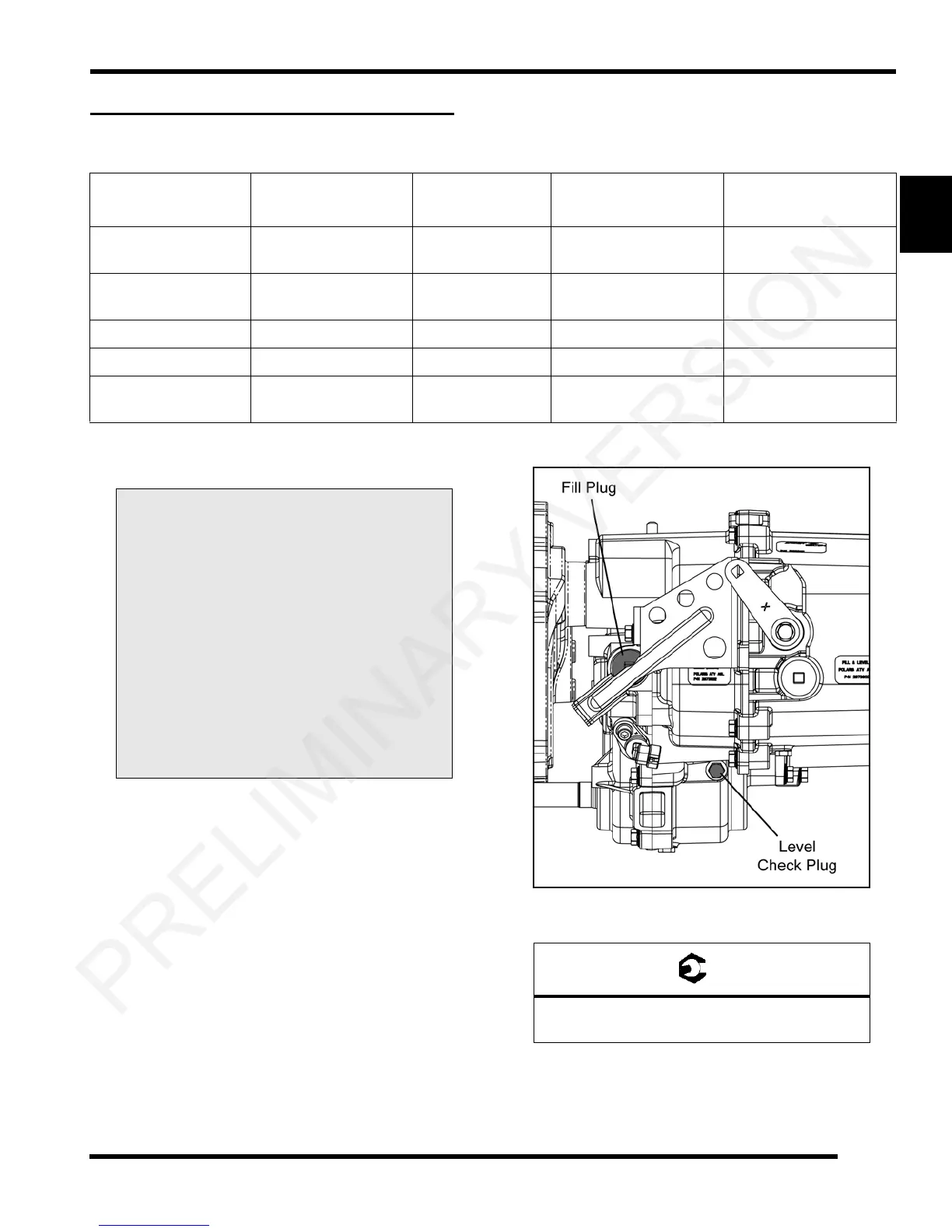

Transfer Case - Lubricant Level Check:
1. Position vehicle on a level surface.
2. Remove the fill plug.
3. Remove the level check plug.
4. Add the recommended fluid through the fill plug
hole
until it begins to flow out the level check plug hole.
5. Reinstall level check plug and
torque to specification.
Gearcase Lubricant Capacity Fill Plug Torque
Drain / Level Check
Plug T
orque
Transmission
(M
ain Gearcase)
AGL Plus
Gearcase Lubricant
24 oz. (710 ml) 40-50 ft-lbs (54-68 Nm) 30-45 in-lbs (3-5 Nm)
Transmission
(T
ransfer Case)
AGL Plus
Gearcase Lubricant
14 oz. (414 ml) 40-50 ft-lbs (54-68 Nm) 30-45 in-lbs (3-5 Nm)
Front Gearcase Demand Drive Plus 6.75 oz. (200 ml) 8-10 ft-lbs (11-14 Nm) 8-10 ft-lbs (11-14 Nm)
Rear Gearcase ATV Angle Drive Fluid 26 oz. (769 ml) 40-50 ft-lbs (54-68 Nm) 30-45 in-lbs (3-5 Nm)
Rear Gearcase
Dif
ferential (INT’L)
ATV Angle Drive Fluid 22 oz. (650 ml) 40-50 ft-lbs (54-68 Nm) 30-45 in-lbs (3-5 Nm)
Transmission Specifications
Specified Lubricant:
AGL Plus Gearcase Lubricant (PN 2878068)
Approximate Capacity at Change:
Main Gearcase - 24 oz. (710 ml)
Transfer Case - 14 oz. (414 ml)
Drain / Level Plug Torque:
30-45 in-lbs (3-5 Nm)
Fill Plug Torque:
40-50 ft-lbs (54-68 Nm)
= T
Level Check Plug:
30-45 in-lbs (3-5 Nm)
