4.36
ELECTRONIC FUEL INJECTION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
IGNITION COIL
Operation Overview
The ignition coil is used to provide high voltage to fire the
spark plugs. When the ignition key is on, DC voltage is
present in the primary side of the ignition coil windings.
During engine rotation, an AC pulse is created within the
crankshaft position sensor for each passing tooth on the
flywheel. The two-tooth gap creates an “interrupt” input
signal, corresponding to specific crankshaft position. This
signal serves as a reference for the control of ignition
timing. The ECU then calculates the time interval between
the consecutive pulses, and determines when to trigger
the voltage spike that induces the voltage from the primary
to the secondary coil windings to fire the spark plugs.
Ignition Coil / HT Lead Replacement
NOTE: Mark or note which ignition coil wire goes to
which cylinder and ignition coil post. The engine will
misfire if the spark plug wires are installed
incorrectly. The spark plug wires are marked with
PTO and MAG from the factory and should be
installed to the corresponding cylinder and ignition
coil post.
1. Remove rear service panel to access the ignition coil.
2. Disconnect the ignition coil harness and remove the
h
igh tension leads from the coil.
3. Remove the fastener retaining the ignition coil and
re
move it from the vehicle. If replacing the high
tension lead(s), remove the other end of the lead(s)
from the spark plug.
4. Install the new ignition coil and/or high tension lead(s).

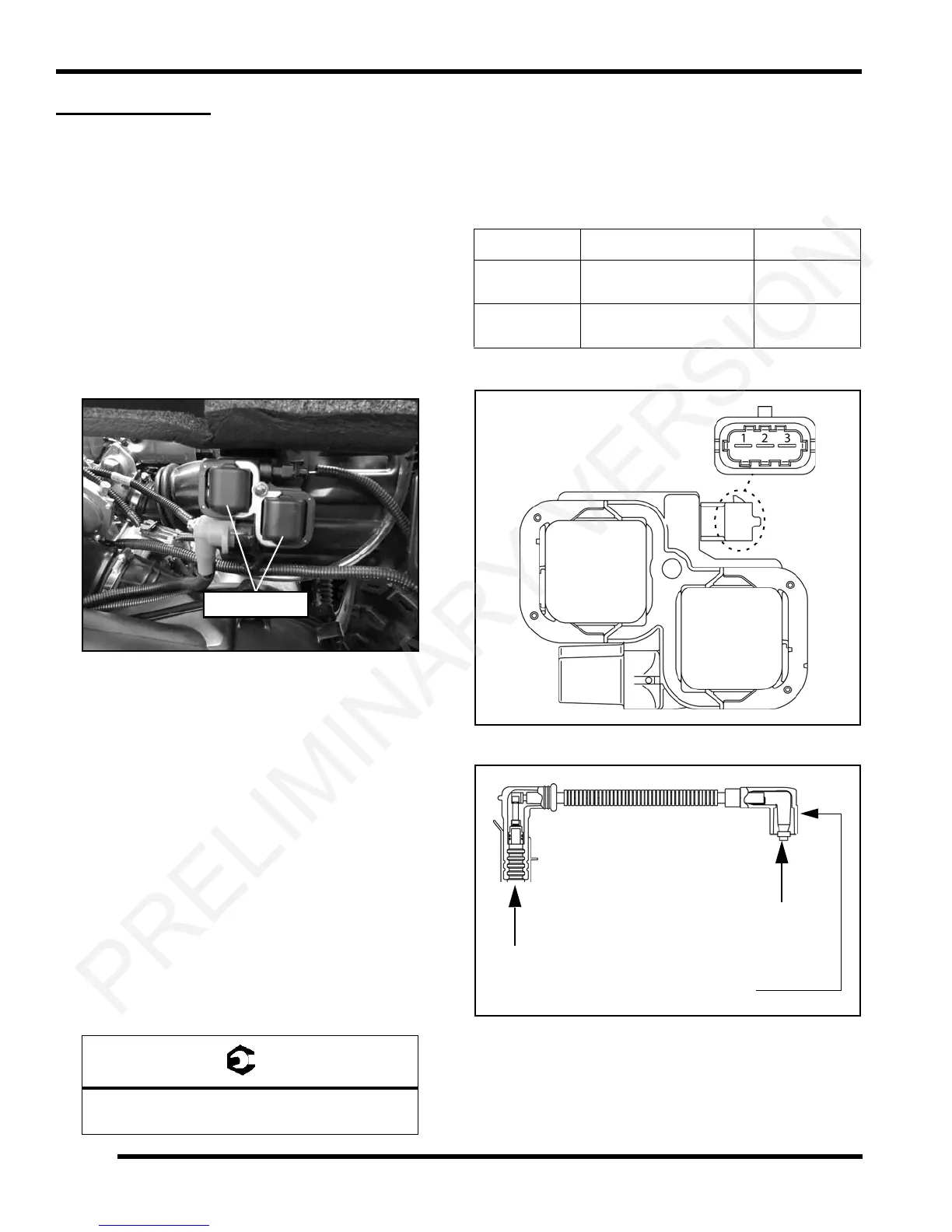

Ignition Coil Tests
The ignition coil can be tested by using an ohm meter. Use
the following illustration and specification table to test the
ignition coil resistance.
Primary Test
Secondary Test
Ignition Coil Retaining Bolt:
75 in-lbs (8.5 Nm)
Ignition Coil Resistance Readings
Test Pin Connection Resistance
Primary
Between 1 & 2
Be
tween 2 & 3
0.4
Secondary
Between High Tension
Lea
d End Caps
6.7k ± 5%
Measure Between
Connector Pins
0.4
Measure Between End Caps
6.7k ± 5%
