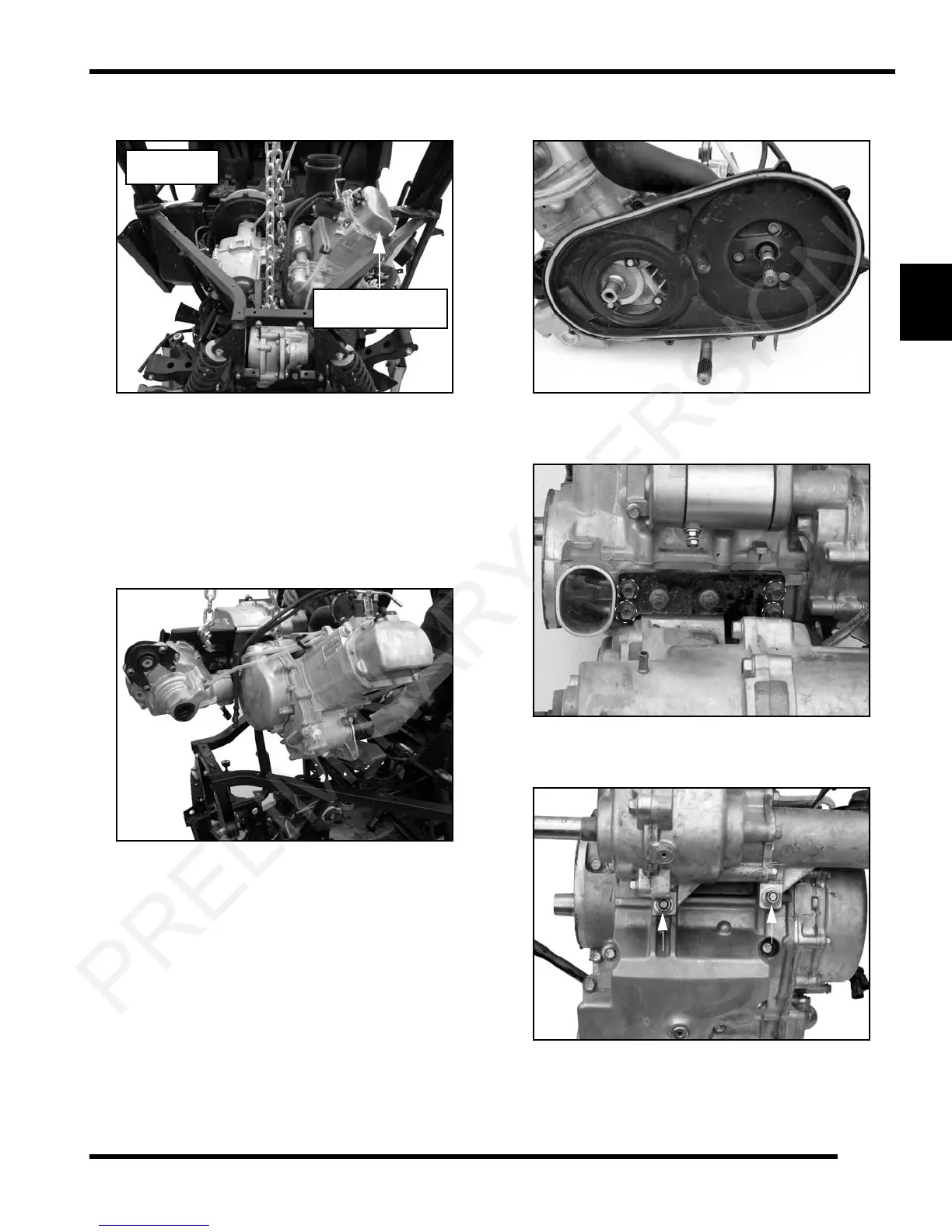

48. Lift the front portion of the assembly out first to allow
the engine valve cover to clear the vehicle frame.
49. Remove propshaft from the transmission output shaft.
50. Then move assembly towards the front of the vehicle
while lifting
it out to allow the rear gearcase to clear
the rear portion of the frame.
51. Then lift assembly high enough to clear vehicle frame
a
nd completely remove it from the vehicle to a work
bench.
Engine / Transmission Separation
Once the engine / transmission / rear gearcase assembly
has been removed from the vehicle, the engine and
transmission will need to be separated to allow engine
servicing. Use the following procedure to separate the
engine from the assembly.
1. Remove the drive belt, drive clutch and driven clutch
(
see Chapter 6).
2. Remove the (6) fasteners retaining the inner clutch
co
ver to the engine and transmission.
3. Remove only the (4) outer fasteners retaining the
e
ngine to the transmission bracket.
4. Tilt the assembly up and remove the remaining (2)
nuts that
retain the transmission to the engine.
5. Carefully separate the engine and perform the
r
equired service (see “Engine Disassembly and
Inspection”).
Allow valve cover
to clear frame
Standard RZR
Shown
