Polaris 2013 RANGER RZR S User Manual

5.49
BODY / STEERING / SUSPENSION
5
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
FOX™ 1.5 PODIUM ‘Piggyback - General Service Information
Recommended Service Intervals
FOX™ Racing Shocks will perform the best if
serviced at regular intervals:
• Every ride - Wash and dry the vehicle and suspension
• Every 100 hours - Visually inspect shock seals
• Every 1500 miles or annually - Change shock oil and replace seals

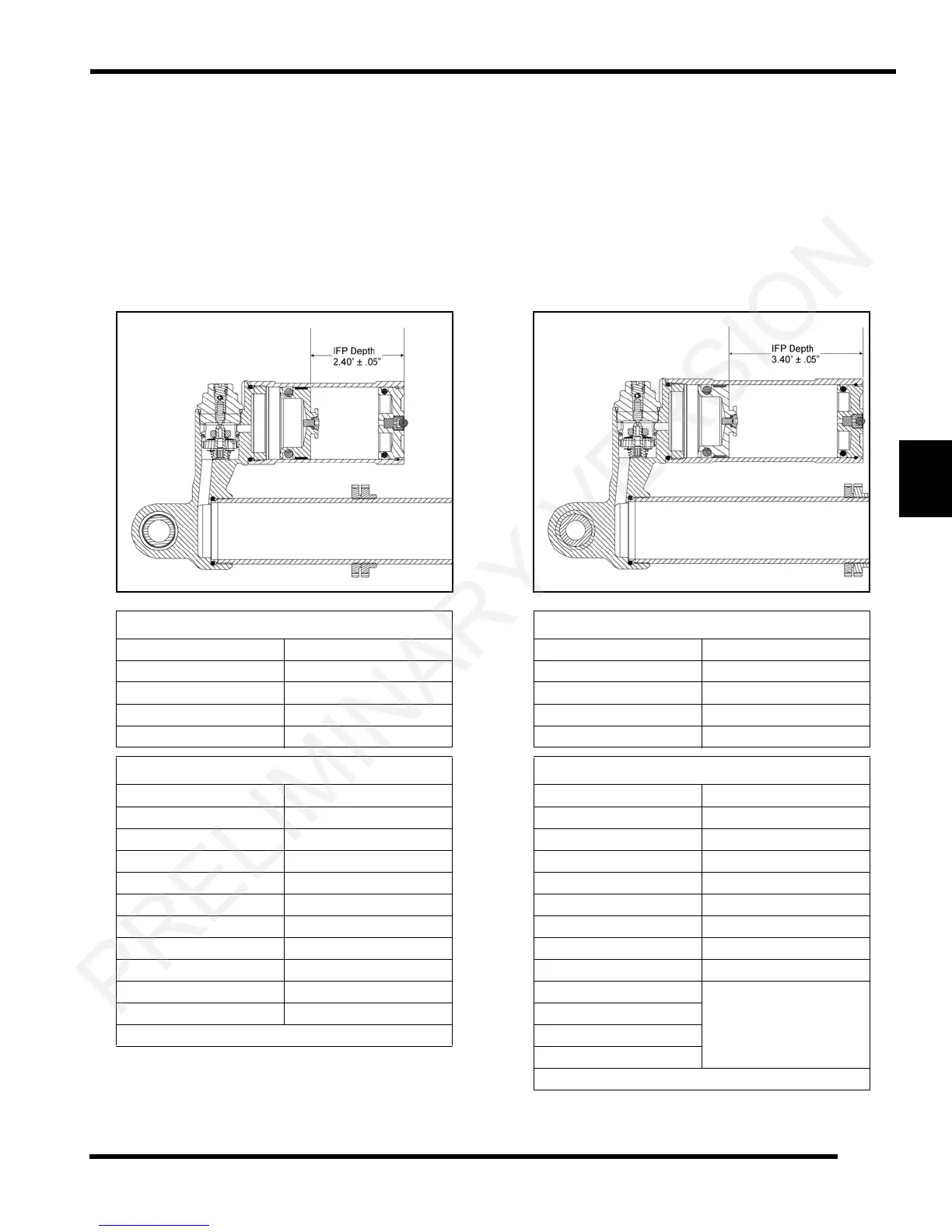

Front Shock Service (RZR S) Rear Shock Service (RZR S)
SHOCK DESIGN DETAILS
Travel 6.22”
Extended Length 19.66”
IFP Location 2.40”
Nitrogen Pressure 150 psi
Gas Shock Oil 2870995 (qt.)
SHOCK VALVING
COMPRESSION REBOUND
1.300 x 0.008 1.250 x 0.006
1.300 x 0.008 1.250 x 0.006
0.800 x 0.004 1.250 x 0.008
1.250 x 0.008 1.100 x 0.006
1.100 x 0.006 1.000 x 0.006
1.000 x 0.006 0.900 x 0.008
0.900 x 0.010 0.800 x 0.010
0.800 x 0.010 0.700 x 0.010
0.700 x 0.010 0.620 x .093 Back-Up
1.125 x .093 Top-Out
Piston Orifice: 0.098
SHOCK DESIGN DETAILS
Travel 6.22”
Extended Length 21.34”
IFP Location 3.40”
Nitrogen Pressure 150 psi
Gas Shock Oil 2870995 (qt.)
SHOCK VALVING
COMPRESSION REBOUND
1.300 x 0.012 1.250 x 0.010
1.250 x 0.008 (R) 1.250 x 0.008
1.100 x 0.006 (C) 1.100 x 0.012
0.800 x 0.008 1.000 x 0.012
1.300 x 0.012 0.900 x 0.010
1.250 x 0.012 0.800 x 0.010
1.100 x 0.012 0.700 x 0.015
1.100 x 0.012 0.620 x .093 Back-Up
1.000 x 0.015
0.900 x 0.015
0.800 x 0.015
1.125 x .093 Top-Out
Piston Orifice: 0.081
PRELIMINARY VERSION
