Polaris 2013 RANGER RZR S User Manual

7.35
FINAL DRIVE
7
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

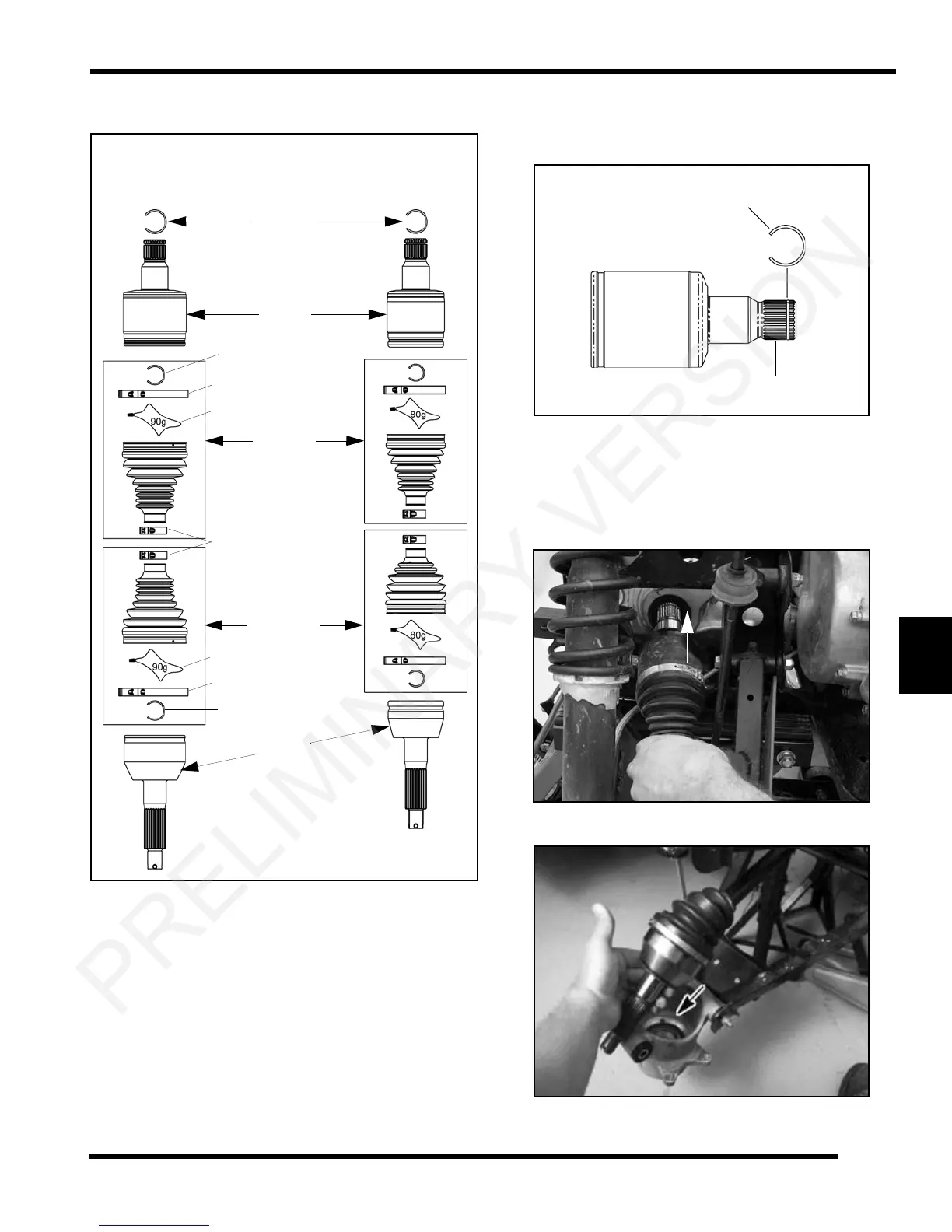

Drive Shaft Exploded View Drive Shaft Installation
1. Install new spring ring on drive shaft. Apply anti-seize
compound to splines.
2. Align splines of drive shaft with rear gearcase and
re
install the drive shaft. Use a soft faced hammer to
tap on the outboard end of the drive shaft if necessary.
NOTE: Take care when installing the drive shaft to
prev
ent damaging the seal.
3. Slide the rear drive shaft into the rear bearing carrier.
REAR SHAFT
CV Joint
Plunging
Spring Ring
Gear Side
Boot Kit
Wheel Side
Boot Kit
Joint
Spring Ring
Large Clamp
Grease Pack
Small Clamp
Spring Ring
Large Clamp
Grease Pack
RZR
RZR S / RZR 4
Apply
Anti-Seize
NEW
Spring Ring
PRELIMINARY VERSION
