6.12
CLUTCHING
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

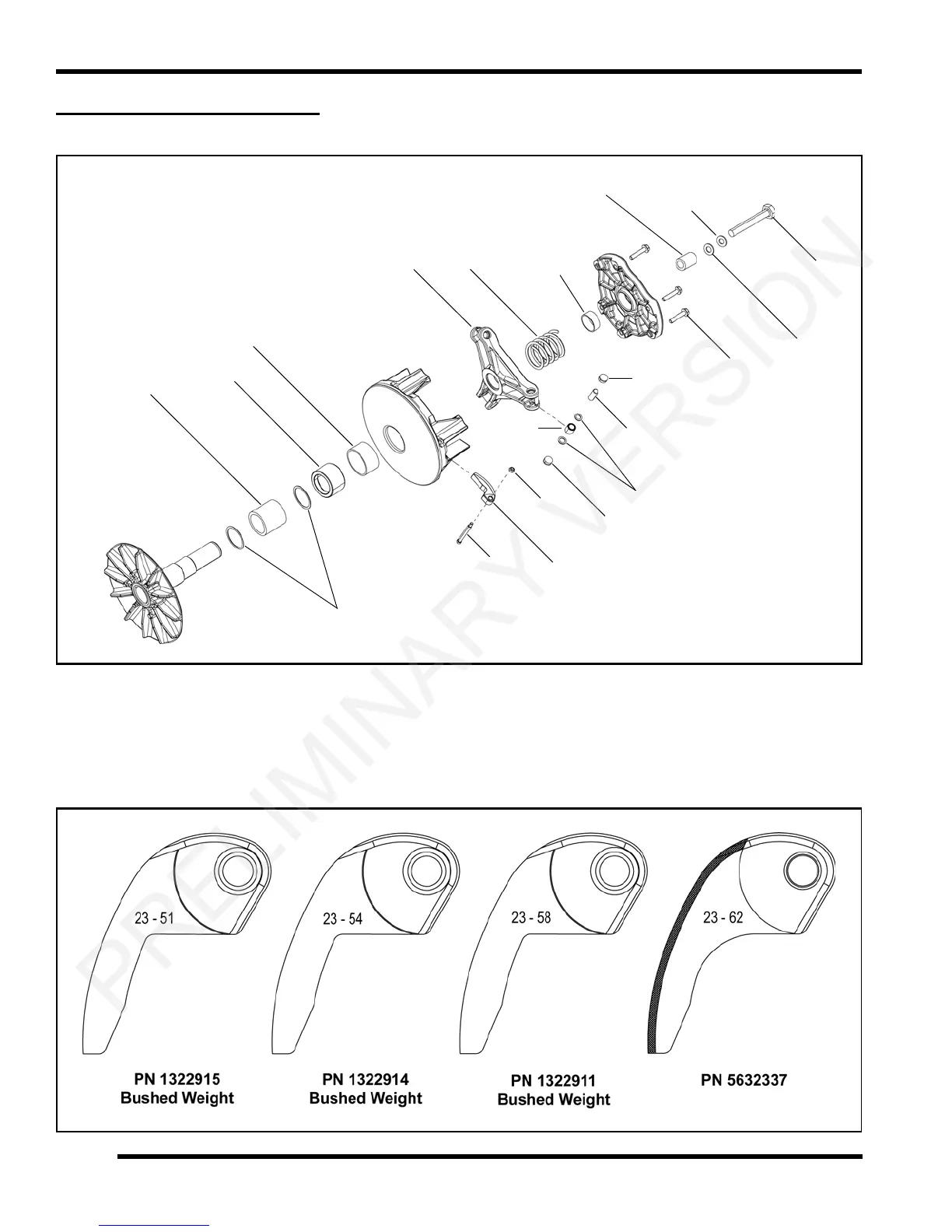

DRIVE CLUTCH SERVICE
Exploded View
Shift Weights
Shown below are the shift weights which have been designed for the PVT system. These shift weights have many factors
designed into them for controlling engagement RPM and shifting patterns. Shift weights should not be changed or altered
without first having a thorough understanding of their positioning and the effects they may have on belt to sheave
clearance, clutch balance and shifting pattern.
Washers
Bearing
Spring
Cover
Bearing
Bushing
Lock
Washer
Bolt
Flat
Washer
Cover
Screws
Button
Pin
Washers
Roller
Nut
Shift
Weight
Bolt
Non-EBS
Spacer
Button
Bearing
Non-Braking
EBS
One-Way
Bearing
200 ft-lbs
(271 Nm)
Spider
90 in-lbs
(10 Nm)
47 ft-lbs
(64 Nm)
