Polaris 2013 RANGER RZR S - Front Caliper Service; Caliper Exploded View (Rzr; Rzr S; Rzr S Intl); Caliper Exploded View (Rzr 4)

9.11
BRAKES
9
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
FRONT CALIPER SERVICE

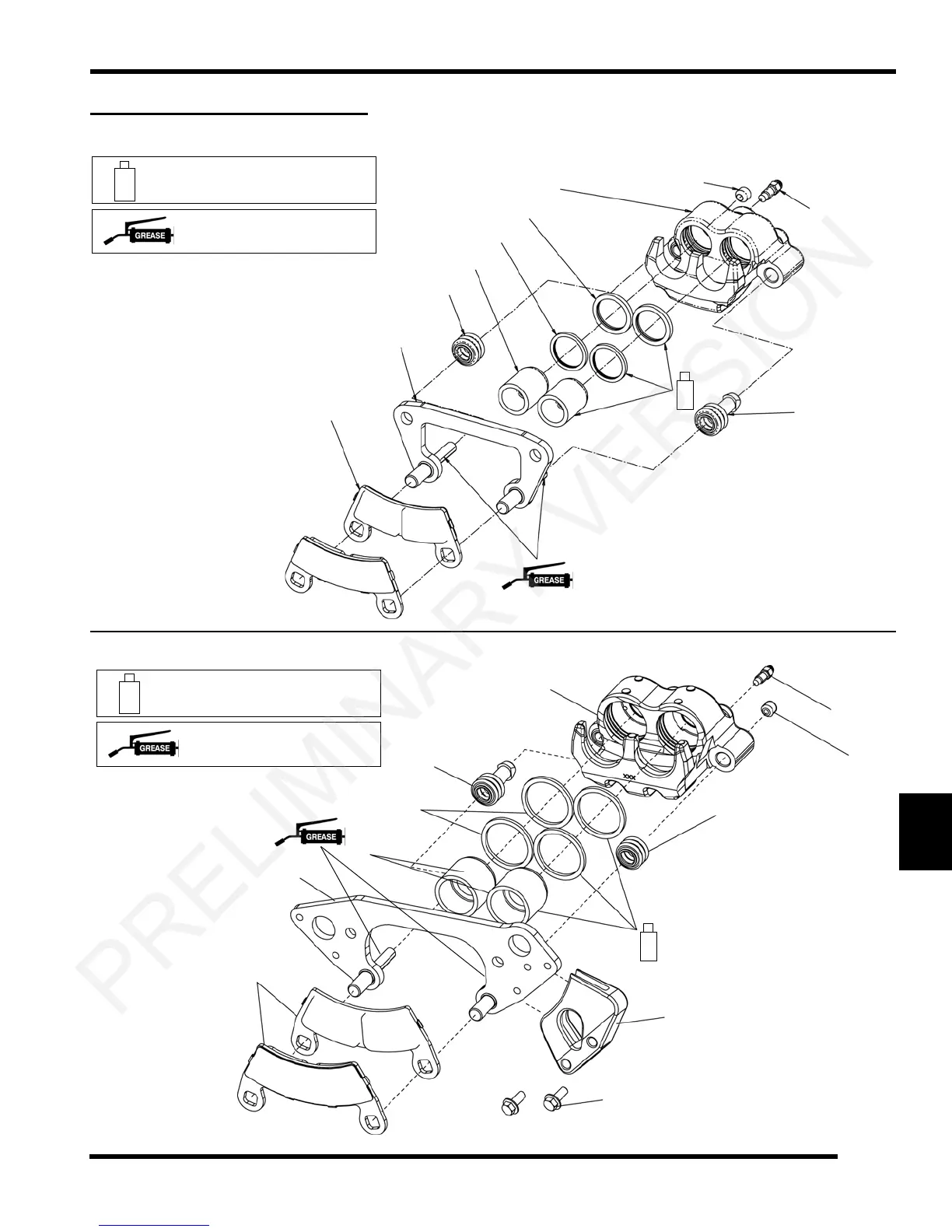

Caliper Exploded View (RZR / RZR S / RZR S INT’L)
Caliper Exploded View (RZR 4)
A. Socket Set Screw 
B. Bleeder Screw 
C. Caliper Assy. 
D. Boot 
E. Square O-ring (thick)
F. Square O-ring (thin) 
G. Piston 
H. Caliper Mount 
I. Brake Pads
A
B
C
D
E
F
G
H
Apply Silicone Grease
Apply Polaris DOT 4 Brake
Fluid to Component
I
47 in-lbs
(5.3 Nm)
D
A
B
C
D
47 in-lbs
(5.3 Nm)
A. Socket Set Screw 
B. Bleeder Screw 
C. Caliper Assy. 
D. Boots 
E. Square O-rings
F. Pistons 
G. C a l i p e r M o u n t 
H. Brake Pads
I. Brake Scraper
J. Bolts
F
G
H
Apply Silicone Grease
Apply Polaris DOT 4 Brake
Fluid to Components
D
I
E
J
PRELIMINARY VERSION
