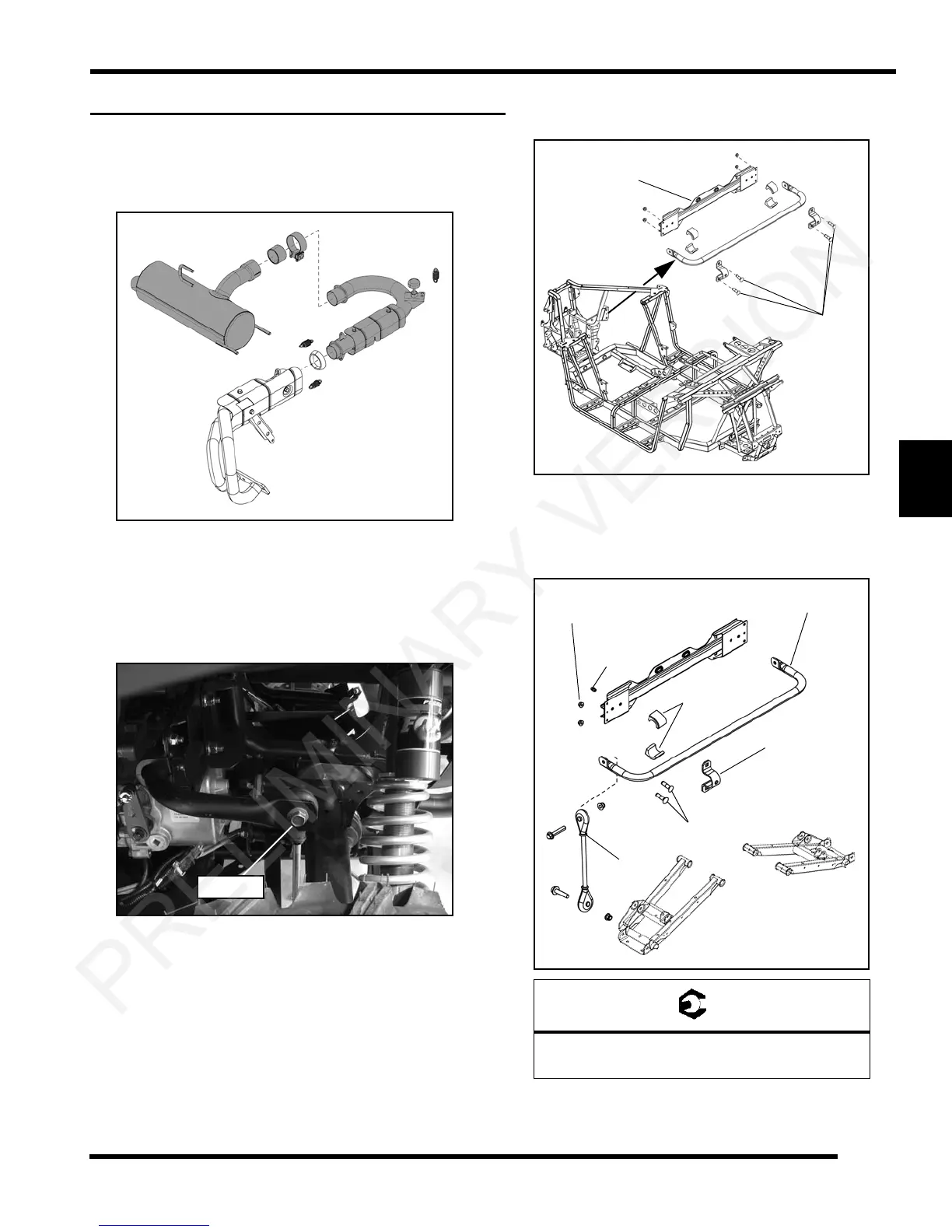

REAR STABILIZER BAR (RZR S / RZR 4)
Removal / Installation
1. Remove the exhaust pipe and exhaust silencer from
the vehicle.
NOTE: The exhaust silencer can be removed
through the side of the vehicle after the exhaust pipe
is detached from the header pipe.
2. Remove the fastener retaining the stabilizer bar
to the
linkage on each side of the vehicle.
3. Remove the (4) fasteners retaining the stabilizer bar
to the br
acket.
4. Remove the stabilizer bar from
the bracket (bracket
can remain attached to the frame).
5. Inspect the stabilizer bar for straightness
. Inspect the
bushings and replace if needed.
6. Reverse the procedure for installation. Torque the
stabiliz
er bolts to specification.
Remove
= T
Stabilizer Mounting Bolts:
18 ft-lbs (24 Nm)
Remove
Fasteners
Leave bracket
attached to frame.
RZR S Shown
Stabilizer Bar
Grease
Zerk
Bushings
Bracket
Linkage
18 ft-lbs
(24 Nm)
Nuts
