BODY / STEERING / SUSPENSION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

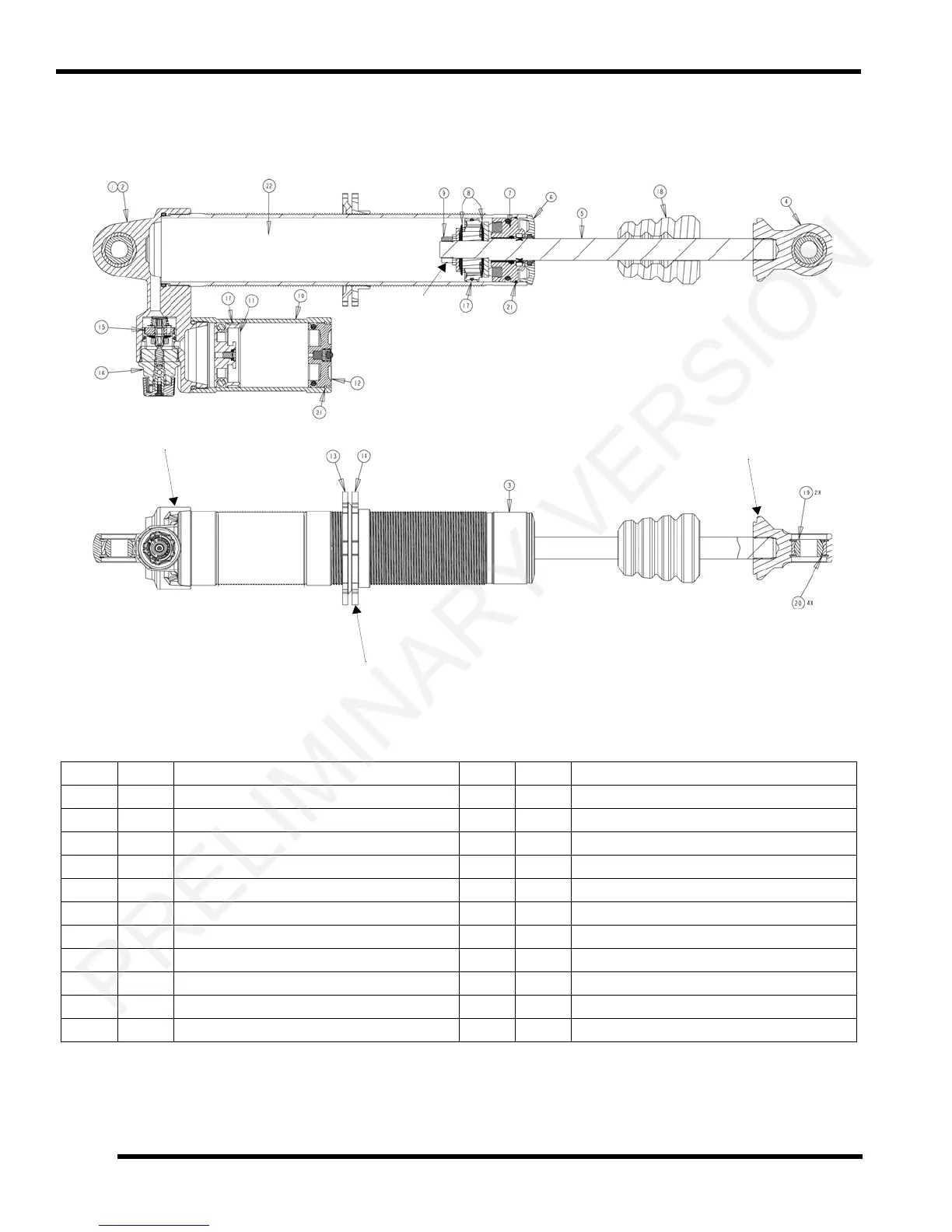

FOX™ 2.0 PODIUM ‘Piggyback’ Shock (RZR 4 L.E. Models)
Ref. Qty Description Ref. Qty Description
1. 1 Body Cap Asm. 12. 1 Reservoir End Cap Asm.
2. 1 Body Cap 13. 1 Preload Ring, Jam Nut
3. 1 Body 14. 1 Preload Ring
4. 1 Eyelet 15. 1 Damping Adjust Asm., Piston
5. 1 Shaft 16. 1 Damping Adjust Asm
., Concentric
6. 1 Bearing Cap Asm. 17. 2 Bearing, External
7. 1 Bearing Asm. 18. 1 Bumper
8. 1 Valving Asm. 19. 2 Bearing, Spherical
9. 1 Lock Nut 20. 4 Retaining Ring
10. 1 Reservoir 21. 2 Retaining Ring
11. 1 Piston Asm, Floating (IFP) 22. - Shock Oil (2870995)
Preload Ring
10 ft-lbs (14 Nm)
18 ft-lbs
Loctite
®
638™ / Primer N™
100 ft-lbs (136 Nm)
(24 Nm)
Loctite
®
638™ / Primer N™
50 ft-lbs (68 Nm)
PRELIMINARY VERSION
