9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

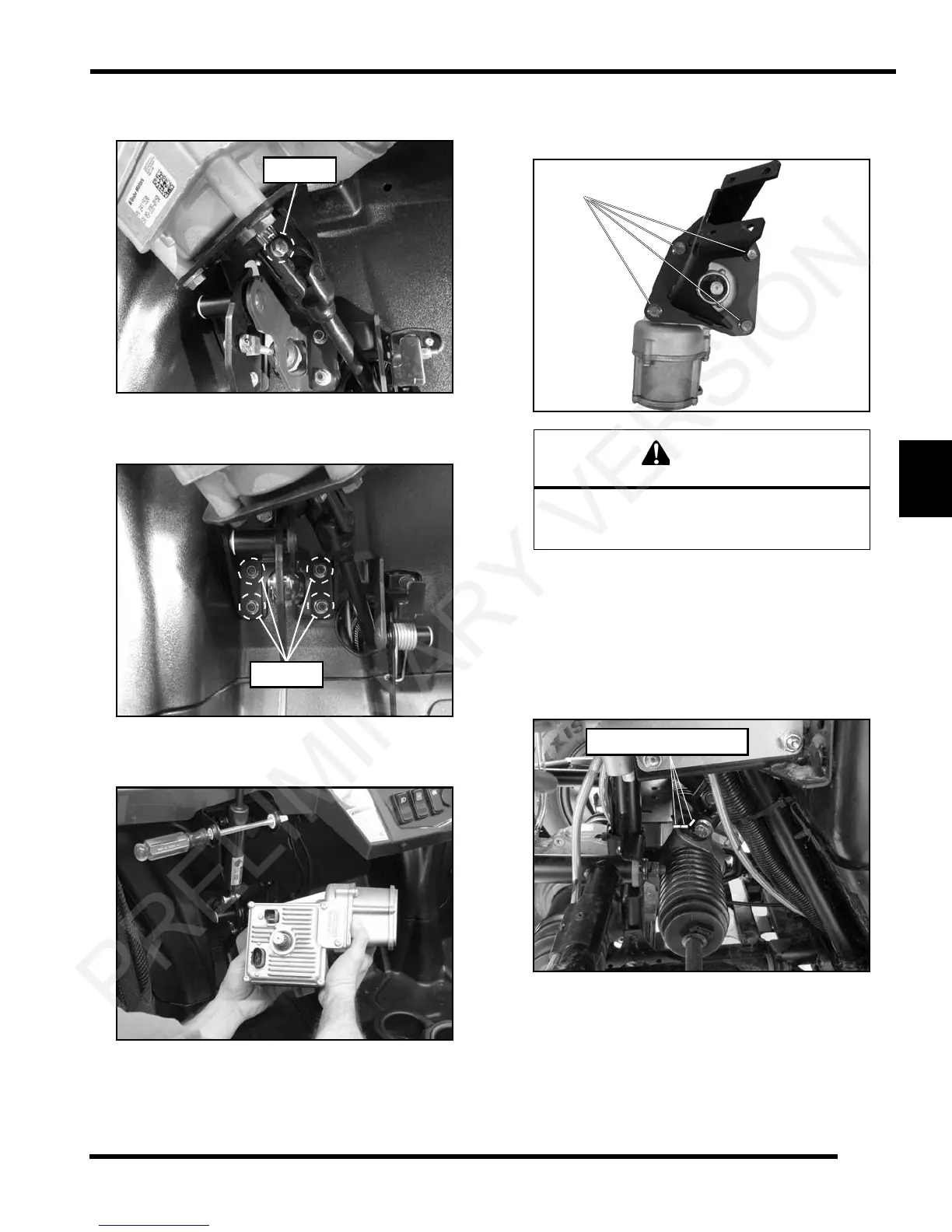

3. Remove the pinch bolt retaining the lower steering
shaft to the power steering unit.
4. While supporting the power steering unit, remove the
(4)
nuts from the mount bracket.
5. Carefully remove the power steering unit and mount
br
acket from the vehicle as an assembly.
6. If replacing the power steering unit, remove the (4)
bo
lts that retain the power steering unit to the mount
bracket.
Lower Steering Shaft Removal (EPS Models)
1. Use the steering wheel to position the front wheels so
they point straight ahead.
2. Locate the lower steering shaf
t through the left front
wheel well. Mark the lower steering shaft, gear box
stub shaft and gear box to aid installation.
3. Remove the power steering unit (see “Power Steering
Un
it Removal” procedure).
Electronic Power Steering (EPS) units are
programmed to be vehicle specific and are not
interchangeable between product lines.
To Next Page
