Polaris 2013 RANGER RZR S - Engine to Frame Ground

2.32
MAINTENANCE
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
7. Clean with electrical contact cleaner or a glass bead
spark plug cleaner only. CAUTION: A wire brush or
coated abrasive should not be used.
8. Measure gap with a wire gauge. Adjust gap if
n
ecessary by carefully bending the side electrode.
9. If necessary, replace spark plug with proper type.
CAU
TION: Severe engine damage may occur if the
incorrect spark plug is used.
10. Apply anti-seize compound to the spark plug threads.
11. Install spark plugs and torque to specification.
12. Install the plug caps to the appropriate cylinder by
r
eferencing the MAG and PTO spark plug cap decals.

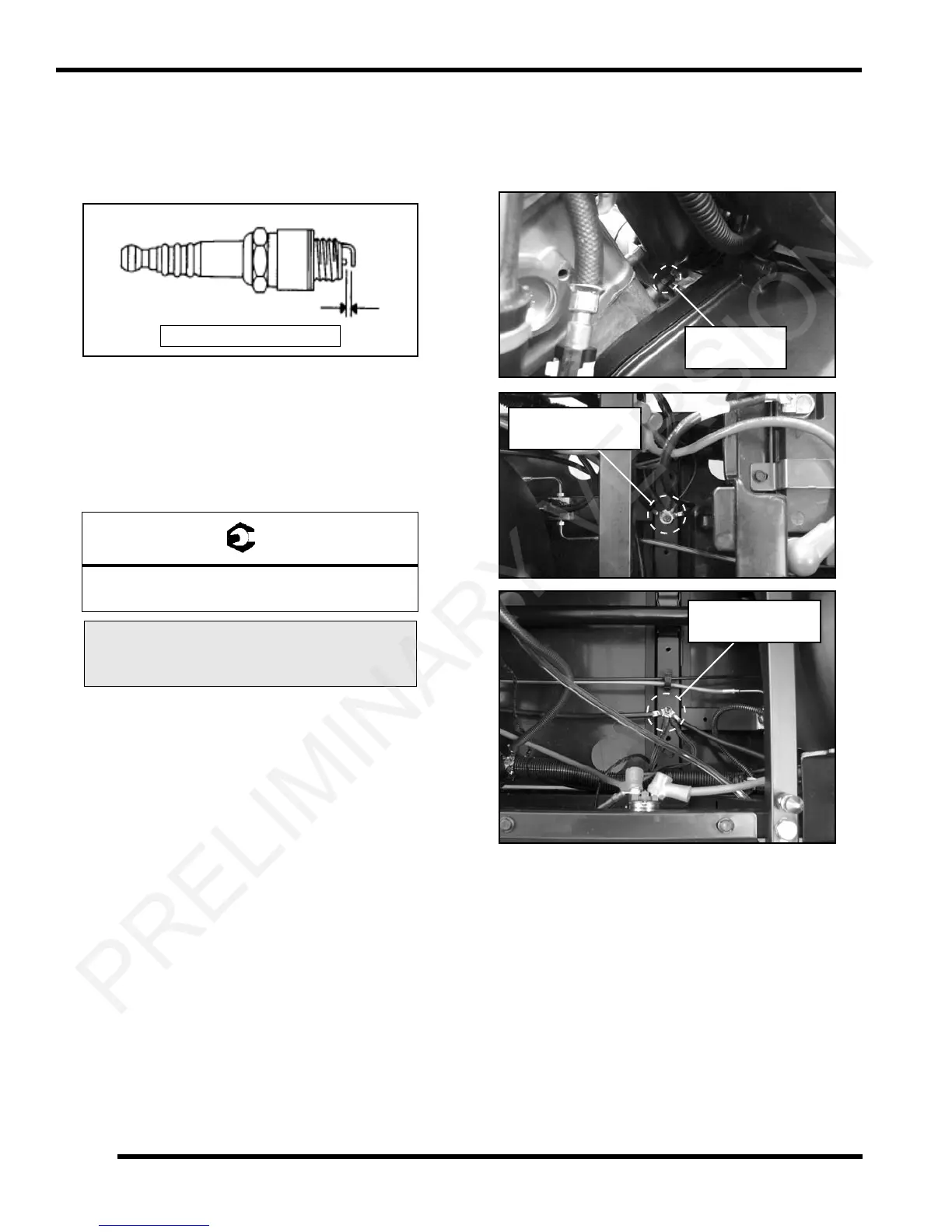

Engine To Frame Ground
Inspect ground cable connections. Be sure they are clean
and tight. The engine ground cable runs from the starter
motor to the chassis ground terminal.
= T
Spark Plug:
18 ft-lbs (24 Nm)
Recommended Spark Plug:
Champion RC7YC3
Gap - .035" (0.90 mm)
Spark Plug Gap
Engine
Ground Strap
RZR / RZR S
Ground Terminal
RZR 4
Ground Terminal
PRELIMINARY VERSION
