Polaris 2013 RANGER RZR S User Manual

5.60
BODY / STEERING / SUSPENSION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
FOX™ PODIUM TOP FILL SHOCK SERVICE

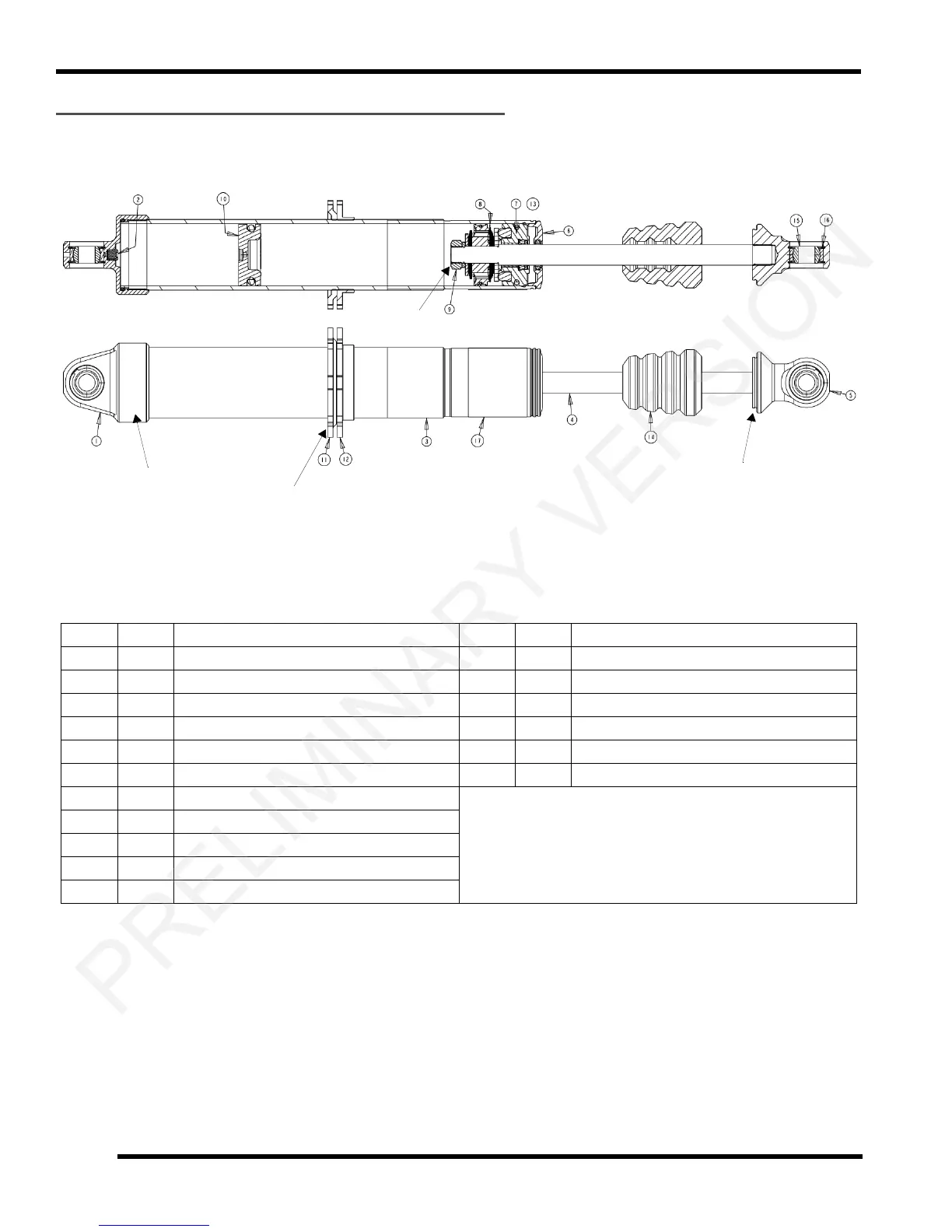

FOX™ 2.0 PODIUM Top Fill Shock (RZR 4 Base Models)
Ref. Qty Description Ref. Qty Description
1. 1 Body Cap Asm. 12. 1 Preload Ring
2. 1 Air Valve Asm. 13. 1 Retaining Ring
3. 1 Body 14. 1 Bumper
4. 1 Shaft .620” O.D. 15. 2 Spherical Bearing
5. 1 Eyelet 16. 1 Spiral Retaining Ring
6. 1 Bearing Cap Asm. - - Shock Oil (2870995)
7. 1 Bearing Asm.
8. 1 Valving Asm.
9. 1 Lock Nut
10. 1 Piston Asm. Floating
11. 1 Preload Ring
Preload Ring
10 ft-lbs (14 Nm)
18 ft-lbs
Loctite
®
638™ / Primer N™
75 ft-lbs (101 Nm)
(30 Nm)
Loctite
®
638™ / Primer N™
50 ft-lbs (68 Nm)
PRELIMINARY VERSION
