7.13
FINAL DRIVE
7
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

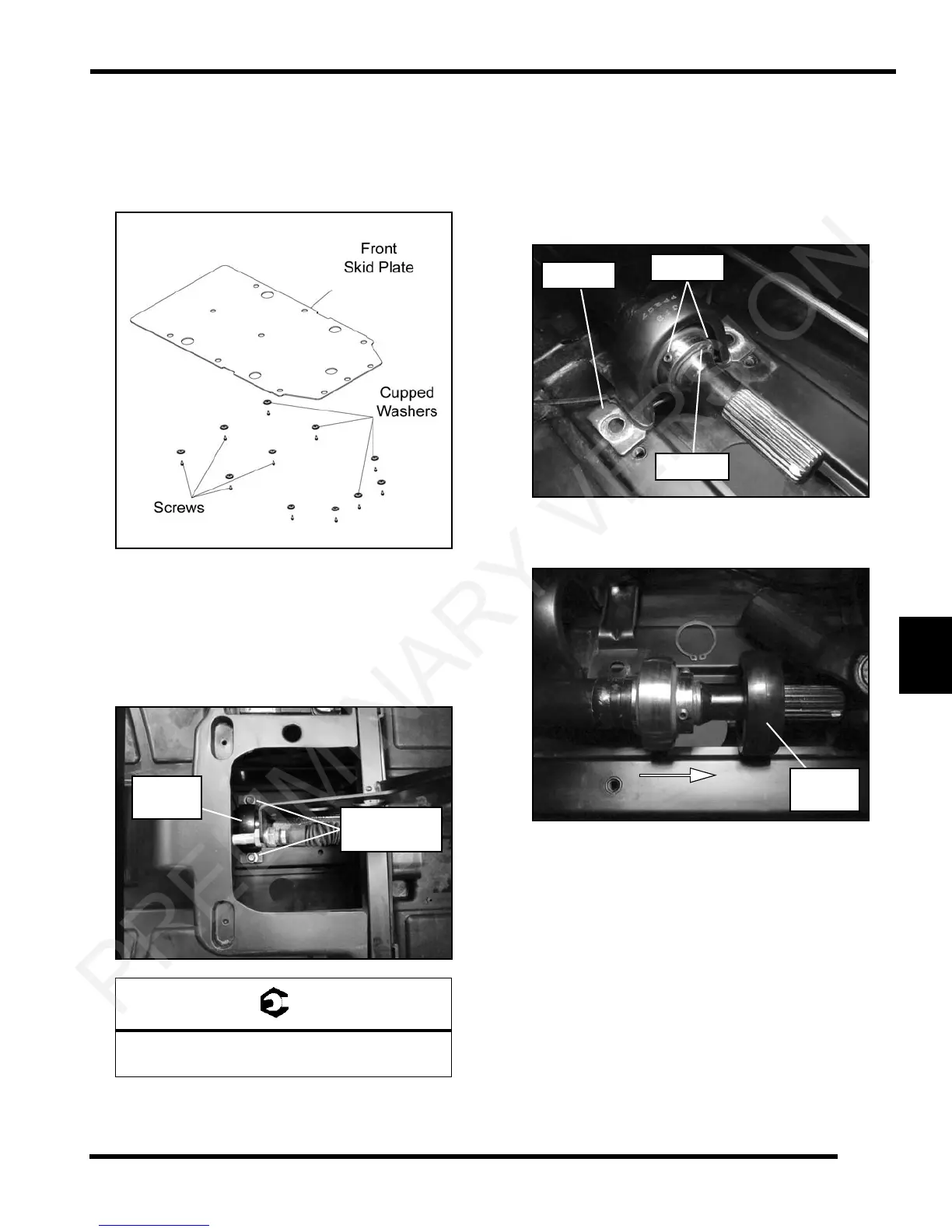

9. If removing the rear portion of the propshaft, remove
the bearing support (upper & lower half) from the
shaft.
10. Remove the fasteners retaining the front plastic skid
p
late to allow for propshaft removal.
11. Using care, slide the rear portion of the propshaft out
thr
ough the bottom of the vehicle.
12. Reverse this procedure to reinstall and assemble the
fr
ont and rear portions of the propshaft.
13. Torque the support bearing fasteners to specification.
14. When installing the front portion of the propshaft,
use
a NEW roll pin.
Support Bearing Replacement (RZR 4)
1. Follow steps 1-8 of the “Removal / Installation (RZR
4)” procedure.
2. Remove the bearing support (upper and lower half)
an
d the retaining ring. Loosen the (2) set screws
retaining the bearing to the shaft.
3. Remove the rubber isolator from the bearing and slide
the be
aring off the end of the shaft.
NOTE: If bearing is seized on the shaft, remove the
re
ar portion of the shaft from the vehicle. Refer to
“Removal / Installation (RZR 4)”.
4. Clean the mounting surface of the shaft and install the
ne
w bearing.
5. Install a new retaining ring and slide the bearing tight
ag
ainst the retaining ring.
Support Bearing Fasteners:
16-18 ft-lbs (22-24 Nm)
Support
Bearing
16-18 ft-lbs
(22-24 Nm)
