Polaris 2013 RANGER RZR S User Manual

7.55
FINAL DRIVE
7
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
WHEEL HUBS

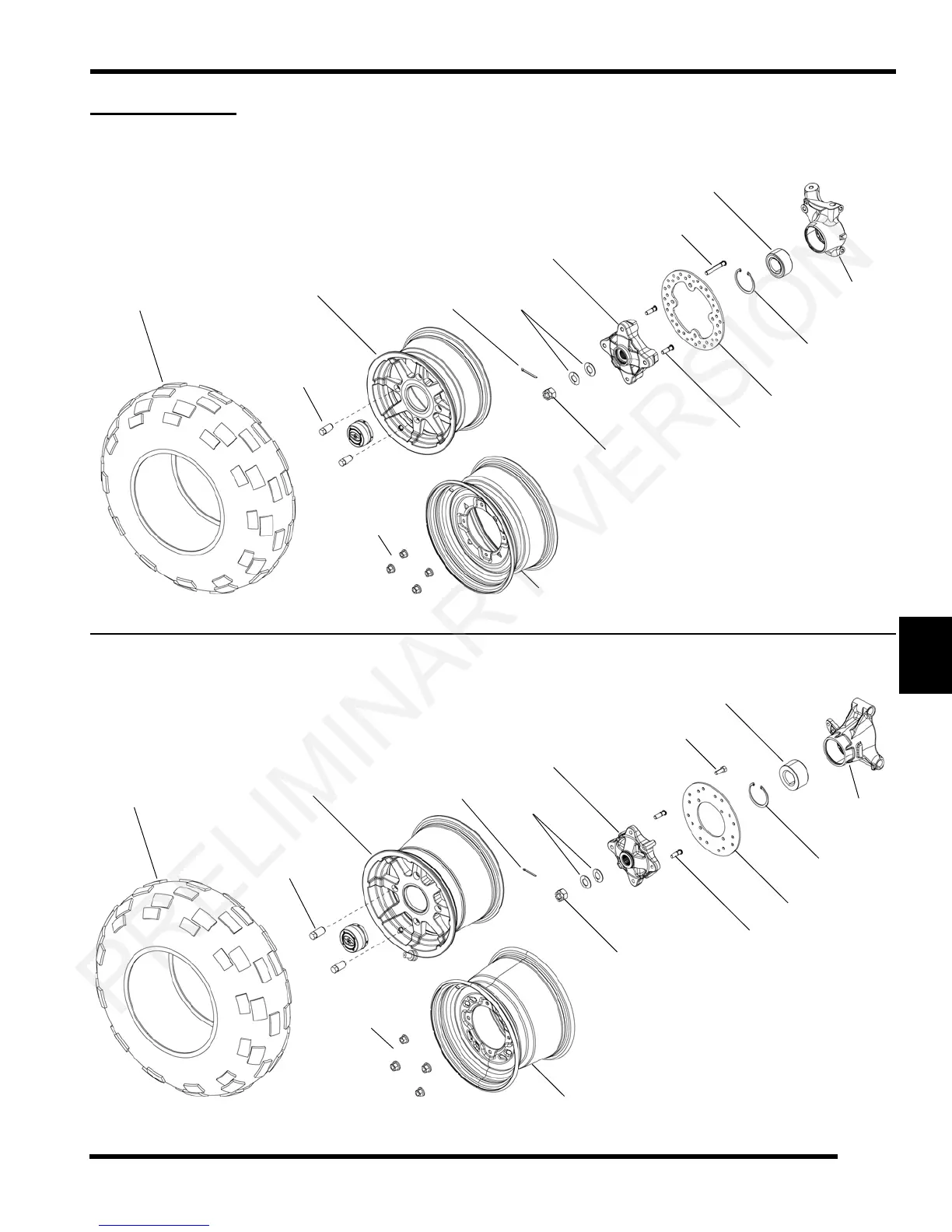

Front Hub Exploded View
Rear Hub Exploded View
Wheel Nuts
Front Rim
Castle Nut
Cotter Pin
Cone
Wheel Hub
Brake Disc
Bolts
Retaining
Sealed
Ball Bearing
Bearing
Front Tire
Washers
27 ft-lbs
(37 Nm)
80 ft-lbs
(108 Nm)
Ring
Carrier
(Steel)
Front Rim
(Aluminum)
Wheel Nuts
30 ft-lbs
+ 90° (1/4 turn)
Studs
Wheel Nuts
Rear Rim
Castle Nut
Cotter Pin
Cone
Wheel Hub
Brake Disc
Bolts
Retaining
Sealed
Ball Bearing
Bearing
Rear Tire
Washers
27 ft-lbs
(37 Nm)
80 ft-lbs
(108 Nm)
Ring
Carrier
(Steel)
Rear Rim
(Aluminum)
Wheel Nuts
30 ft-lbs
+ 90° (1/4 turn)
Studs
PRELIMINARY VERSION
