9.20
BRAKES
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
REAR CALIPER SERVICE

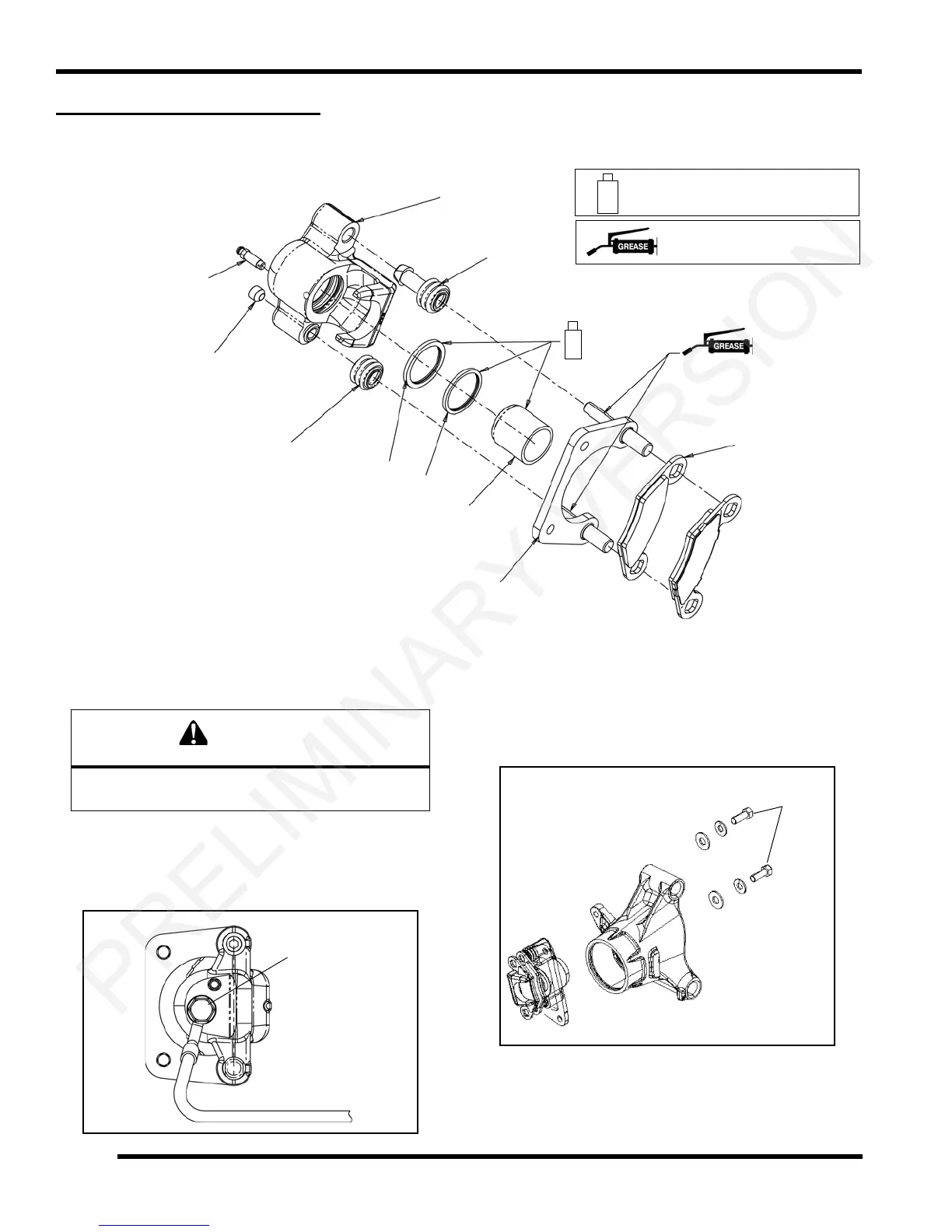

Caliper Exploded View
Caliper Removal
1. Elevate and safely support the rear of the vehicle.
2. Remove the (4) wheel nuts and rear wheel.
3. Clean caliper area before removal.
4. Place a container below the caliper to catch the brake
fluid
. Remove brake line from caliper.
5. Loosen the brake pad adjustment set screw to allow
bra
ke pad removal after the caliper is removed.
6. Remove the two caliper mounting bolts and remove
the c
aliper.
A
B
C
D
E
F
G
H
I
K
Apply Polaris DOT 4 Brake
Fluid to Component
Apply Silicone Grease
47 in-lbs
(5.3 Nm)
A. Brake Pad
B. Mount Bracket
C. Piston
D. Caliper Assy.
E. Square Ring (thick)
F. Square Ring (thin)
G. Boot, Pin Bushing
H. Boot, Pin Seal
I. Bleeder Screw
K. Set Screw
Use care when supporting vehicle so that it does not
tip or fall. Severe injury may occur.
