6.6
CLUTCHING
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

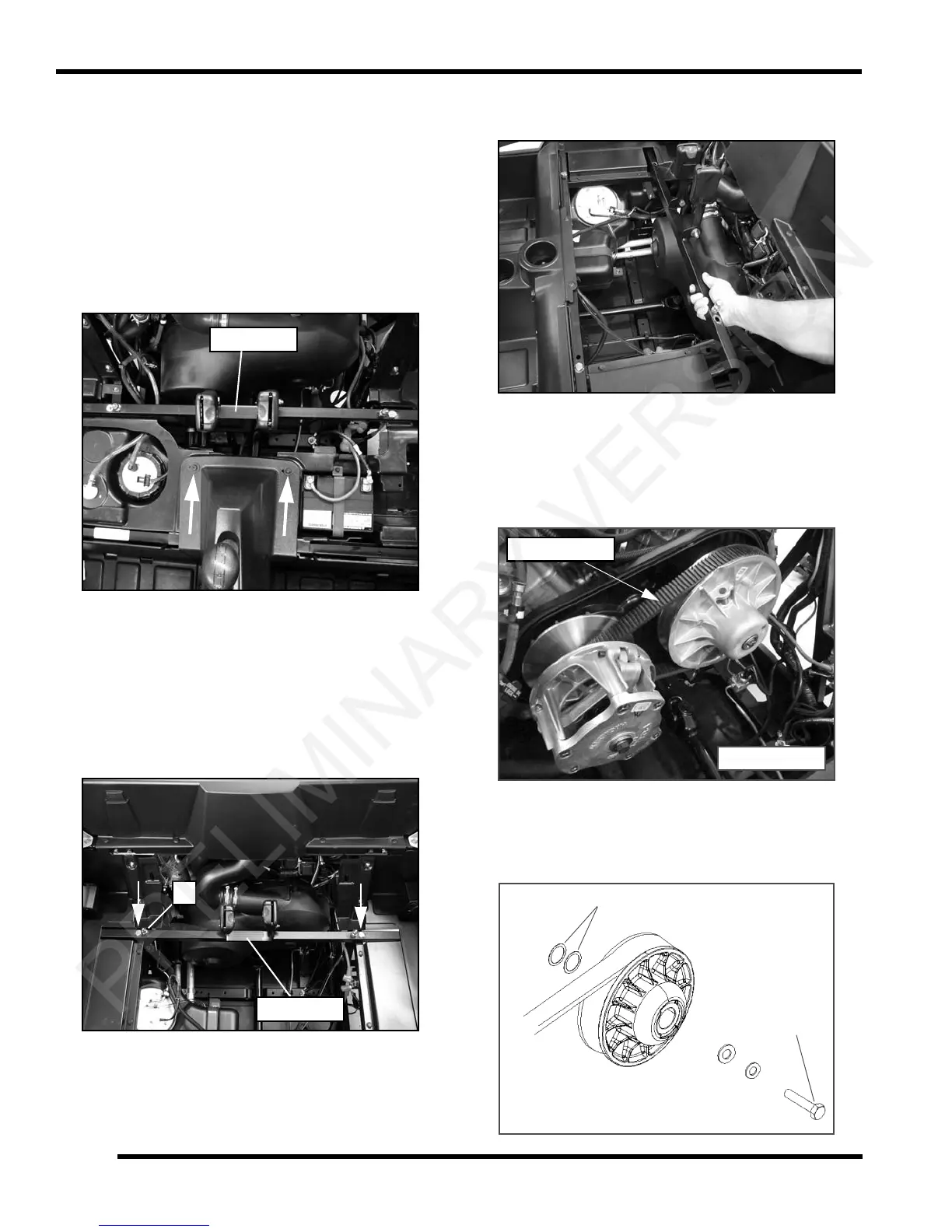

PVT Disassembly
Some fasteners and procedures will vary. Refer to the
Electronic Parts Catalog for proper fastener placement.
1. Remove the driver’s seat (RZR / RZR S only).
2. Remove passenger seat(s) and rear service panel to
gain access
to the outer clutch cover (see Chapter 5).
3. Remove the (2) screws from the rear of the center
cons
ole (RZR / RZR S only).
4. Remove the rear seat base assembly from the vehicle
to allow
outer clutch cover removal:
• RZR / RZR S:
Remove the (2) fasteners from the
rear seat base as shown and remove it from the
vehicle.
• RZR 4:
Remove the (2) fasteners and seat latch
plunger (A).
• RZR 4: Slide
rear seat base towards left side of
the vehicle to free it from the plastic and remove it.
5. Loosen the hose clamp on the clutch outlet duct.
6. Remove outer clutch cover
screws and clutch cover.
7. Mark the drive belt direction of rotation and remove
dr
ive belt (see “DRIVE BELT - Belt Removal”).
8. Remove driven clutch retaining bolt and driven clutch.
9. Remo
ve driven clutch offset spacers from the
transmission input shaft if present.
Seat Base
A
Seat Base
Mark Rotation
Non-EBS Shown
Keep Spacers In Order (Note Thickness)
Retaining
Bolt
PRELIMINARY VERSION
