Polaris 2013 RANGER RZR S - Bearing Carrier Installation

7.28
FINAL DRIVE
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

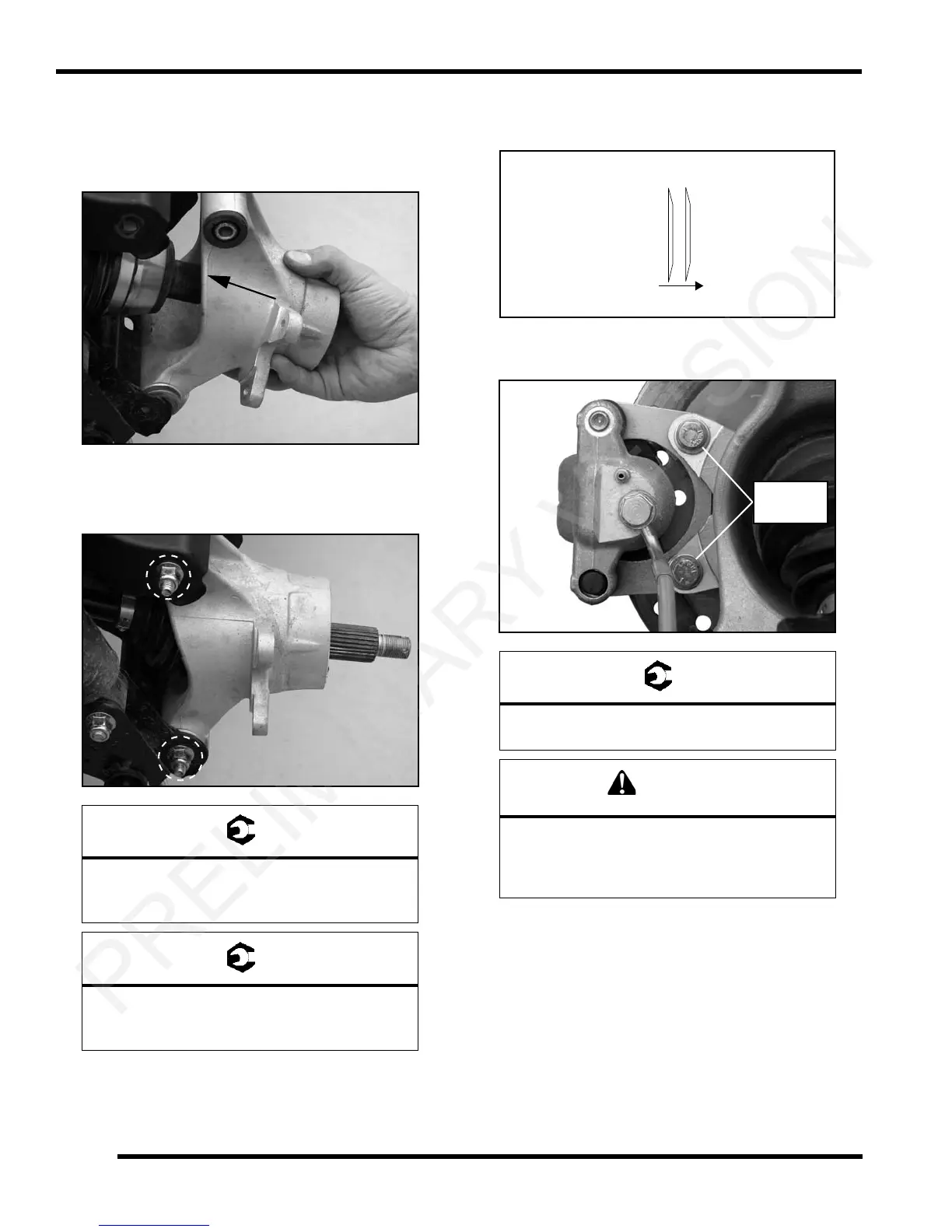

Bearing Carrier Installation
1. Install drive shaft axle through the backside of the
bearing carrier. Be sure bushings and pivot tubes are
installed.
2. Install the fasteners that attach the rear bearing carrier
to th
e upper and lower A-arms. Torque bolts to
specification.
3. Apply grease to drive shaft axle splines.
4. Install rear wheel hub assembly, cone washers, and
han
d tighten the castle nut. Install washers with
domed side out.
5. Install brake caliper mounting bolts and torque to 18
ft-lbs (24 Nm).
= T
Upper Rear Bearing Carrier Bolts:
RZR: 33 ft-lbs (45 Nm)
RZR S / RZR 4: 40 ft-lbs (54 Nm)
= T
Lower Rear Bearing Carrier Bolts:
RZR: 38 ft-lbs (52 Nm)
RZR S / RZR 4: 40 ft-lbs (54 Nm)
= T
Rear Caliper Mounting Bolts:
18 ft-lbs (24 Nm)
CAUTION
New bolts have a pre-applied locking agent
which is destroyed upon removal. Always use
new brake caliper mounting bolts
upon assembly.
Out
Cone Washers
Wheel
Hub
18 ft-lbs
24 (Nm)
PRELIMINARY VERSION
