4.42
ELECTRONIC FUEL INJECTION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

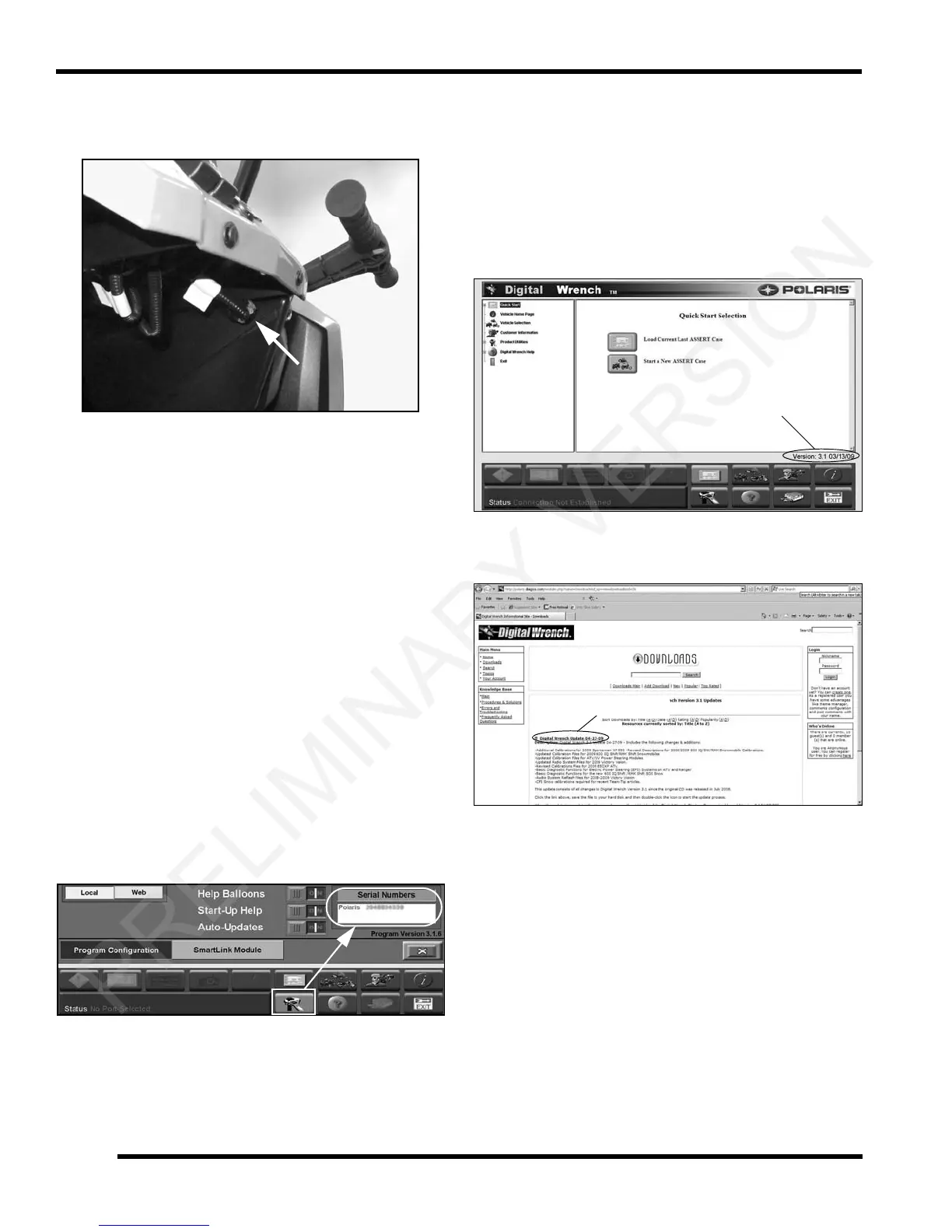

Digital Wrench™ - Diagnostic Connector
Located under the dash connected to a sealed plug.
Follow these steps to connect the diagnostic interface
cab
le to the vehicle to allow Digital Wrench™ use:
1. Assemble the SmartLink Module and attach the PC
Inter
face Cable to your laptop (see page 4.3).
2. Remove the protective cap from the Digital Wrench™
con
nector.
3. Connect the Vehicle Interface Cable to the Digital
Wre
nch™ diagnostic connector.
4. Turn the ignition key to the ‘ON’ position, select the
a
ppropriate vehicle and wait for the status to display
‘Connected’ in the lower left corner of the screen.
5. Once connected, proceed with using Digital
Wrench™.
Digital Wrench™ Serial Number Location
Open the configuration screen by clicking on the wrench
icon. The serial number is located on the right side of the
screen.
Digital Wrench™ Version and Update ID
Knowing what Digital Wrench™ version and update is
installed will help determine which updates are required.
NOTE: Versions and updates are subject to change.
1. Open the Digital Wrench™ software. Locate the
ve
rsion ID shown on the lower right side of the Digital
Wrench™ start-up screen.
2. Proceed to ht
tp://polaris.diagsys.com to see if a
newer update is available.
3. If a newer update is available, it should be
downlo
aded before using Digital Wrench™ (see
“Digital Wrench™ Updates”).
IMPORTANT: Always operate with the latest update.
