BODY / STEERING / SUSPENSION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

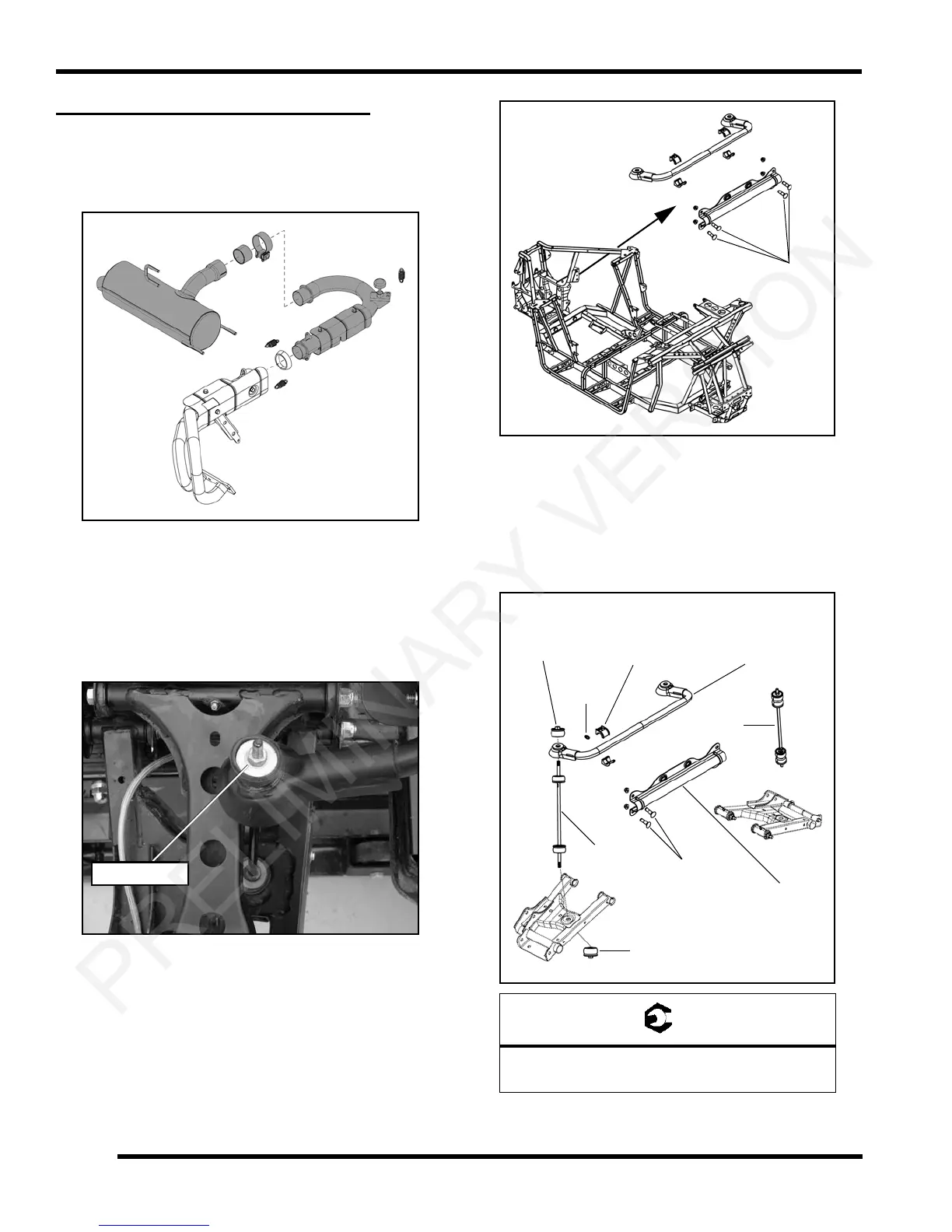

REAR STABILIZER BAR (RZR)
Removal / Installation
1. Remove the exhaust pipe and exhaust silencer from
the vehicle.
NOTE: The exhaust silencer can be removed
through the side of the vehicle after the exhaust pipe
is detached from the header pipe.
2. Remove the retaining nut from the upper portion of the
stabilizer bar linkage bushing on each side of the
ve
hicle.
3. Remove the (4) fasteners retaining the stabilizer bar
br
acket to the frame.
4. Remove the stabilizer bar and bracket
from the frame
as an assembly.
5. Inspect the stabilizer bar for
straightness. Inspect the
bushings and replace if needed.
6. Inspect the rubber bushings on the linkage rod and
rep
lace if needed.
7. Reverse the procedure for installation. Torque the
s
tabilizer bolts to specification.
Remove Nut
= T
Stabilizer Mounting Bolts:
18 ft-lbs (24 Nm)
Remove
Fasteners
Stabilizer Bar
Grease
Zerk
Bushing
Bracket
Linkage
Bushing
Linkage
18 ft-lbs
(24 Nm)
Bushing
17 ft-lbs
(23 Nm)
17 ft-lbs
(23 Nm)
