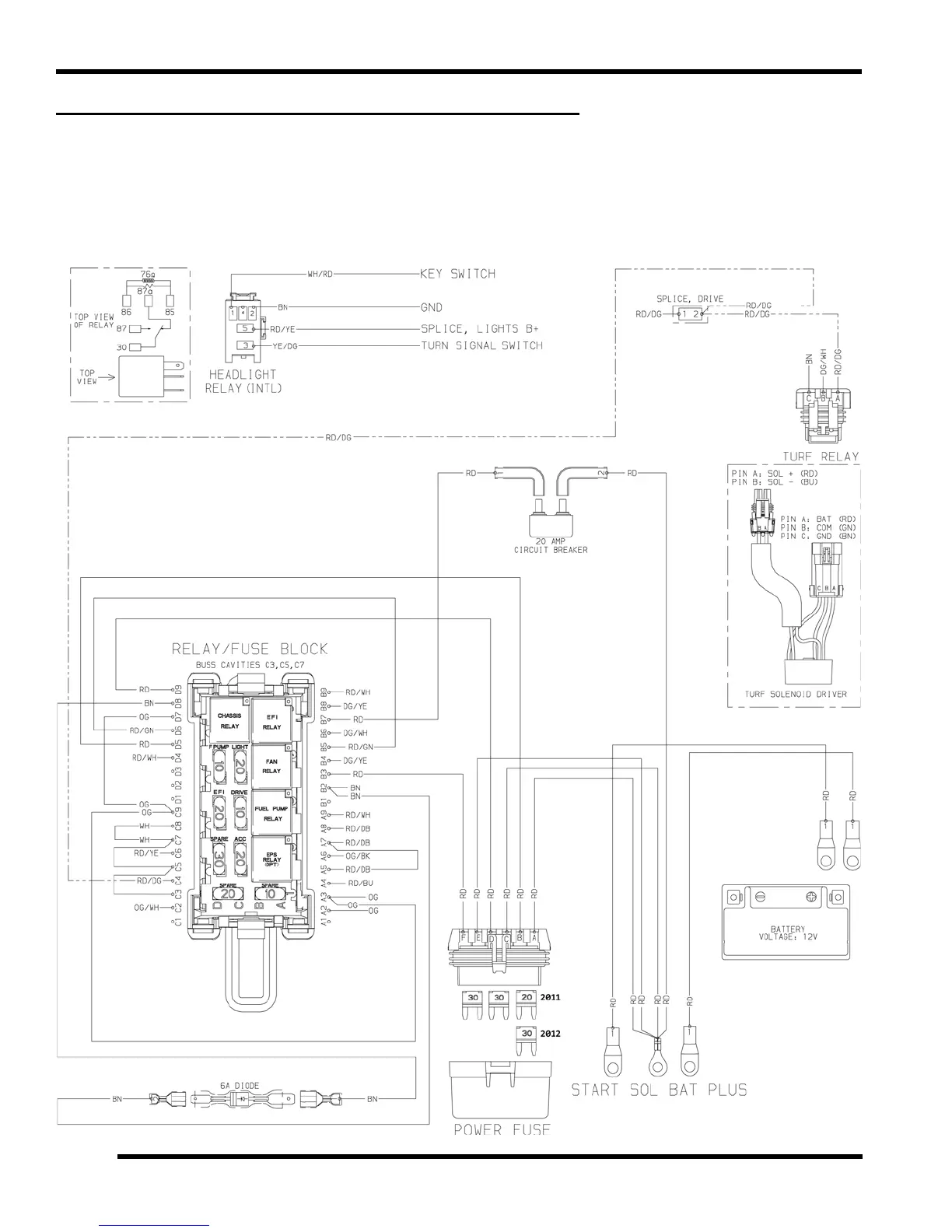

FUSE BOX: FUSES / RELAYS / CIRCUIT BREAKER
Overview / Operation
Located in the fuse box under the dash, the fuses provide overload protection for wiring and components such as the
instrument cluster, ECU, EFI system, main harness, lights, accessories and power steering. The relays assist with
component operation like the cooling fan, fuel pump, EFI system, drive system and electronic power steering. A separate
20-amp circuit breaker protects the fan motor circuit. A separate relay located under the dash, operates the high beam
and low beam headlights on INT’L models.
