Polaris 2013 RANGER RZR S User Manual

6.21
CLUTCHING
6
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
DRIVEN CLUTCH SERVICE (NON-EBS)

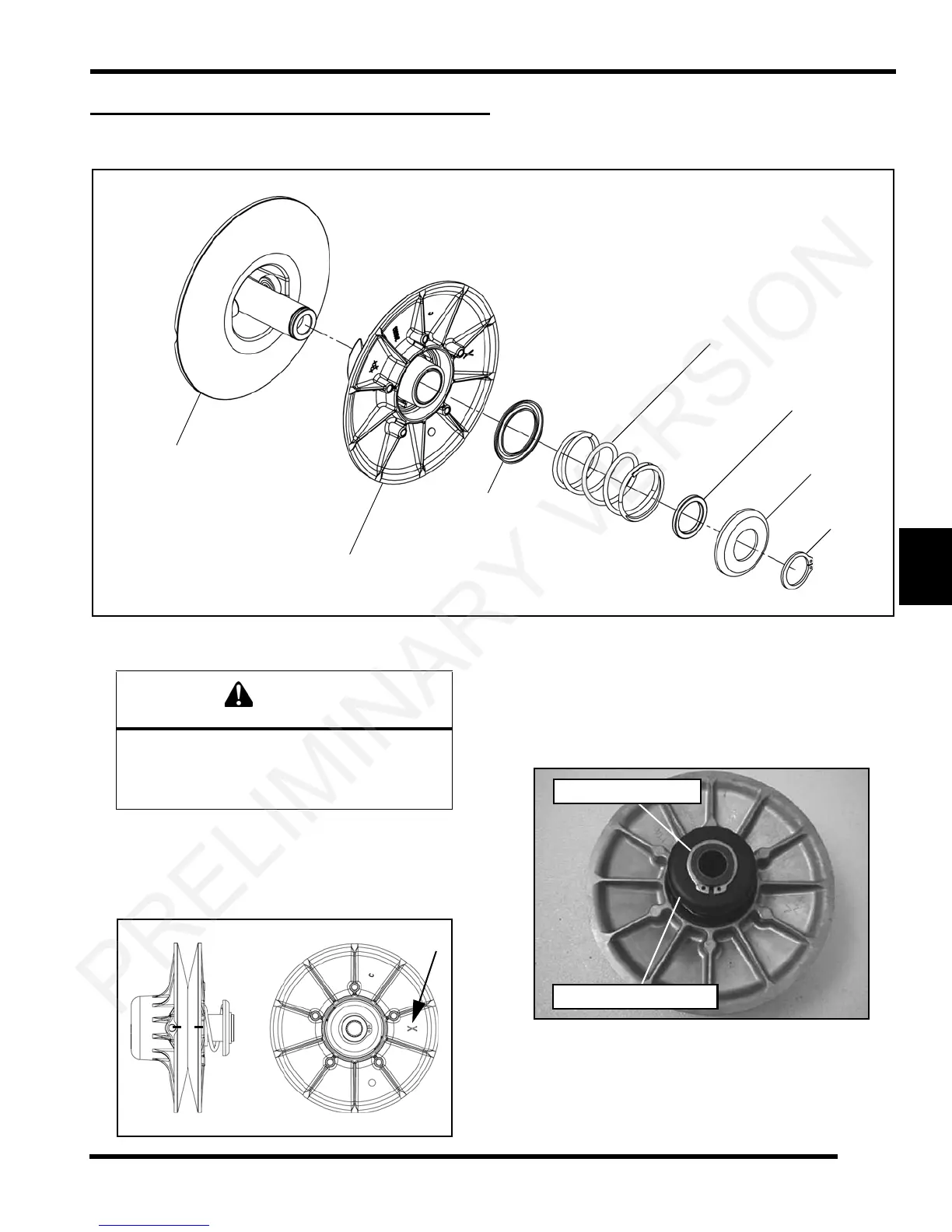

Exploded View
Clutch Disassembly / Inspection
1. Remove driven clutch from transmission input shaft.
2. Mark the position of the clutch sheaves before
dis
assembly or use the X’s on the sheaves for
reference. This aids in reassembly and maintains
clutch balance after reassembly.
3. Place the driven clutch into the
Universal Clutch
Compressor PU-50518. Apply and hold downward
pressure on the outer spring retainer. Carefully
remove the snap ring. Remember the outer spring
retainer contains strong spring pressure.
NOTE: Spring is compression only and has no
tors
ional wind.
Stationary
Moveable
Inner
Compression Spring
Outer
Retaining
Spring Retainer
Ring
Spacer
Spring Retainer
Secondary Sheave
Secondary Sheave
CAUTION
Wear eye protection when removing snap ring to
prevent serious personal injury.
Use caution when removing, the snap ring
pressure is loaded by the compression spring.
Remove Snap Ring
Outer Spring Retainer
PRELIMINARY VERSION
