5.19
BODY / STEERING / SUSPENSION
5
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

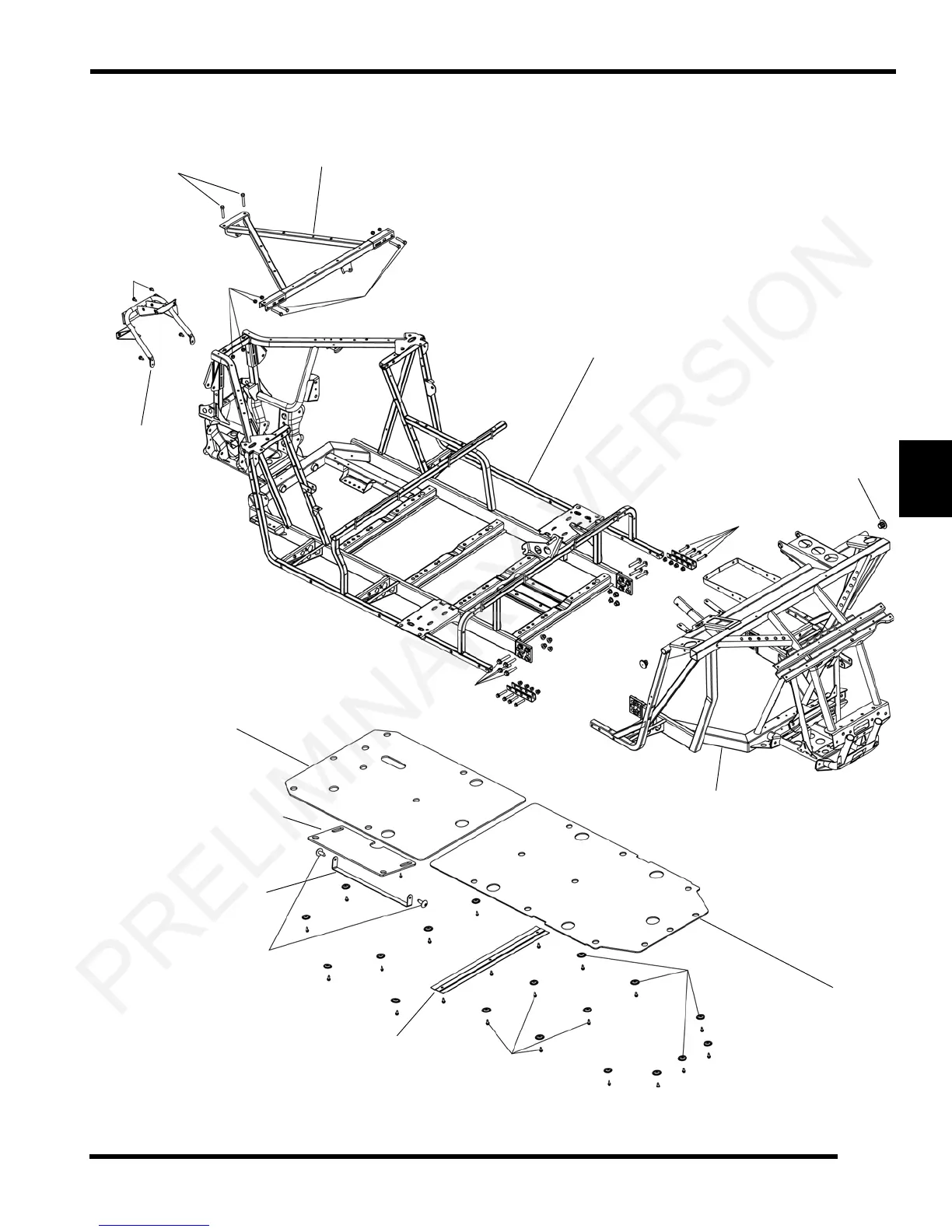

Chassis / Main Frame (RZR 4)
Main Frame
Bolt-In Brace
Rear
Rear Bumper
Support
15 ft-lbs
(20 Nm)
15 ft-lbs
(20 Nm)
17 ft-lbs
(23 Nm)
6-8 ft-lbs
(8-11 Nm)
Front Frame
Washers
Self-Tapping
Screws
Nylok Nuts
Plug
38 ft-lbs
(52 Nm)
17 ft-lbs
(23 Nm)
Skid Plate
Front
Skid Plate
Fuel Tank
Skid Plate
Coupler
Bracket
