Polaris 2013 RANGER RZR S User Manual

7.14
FINAL DRIVE
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

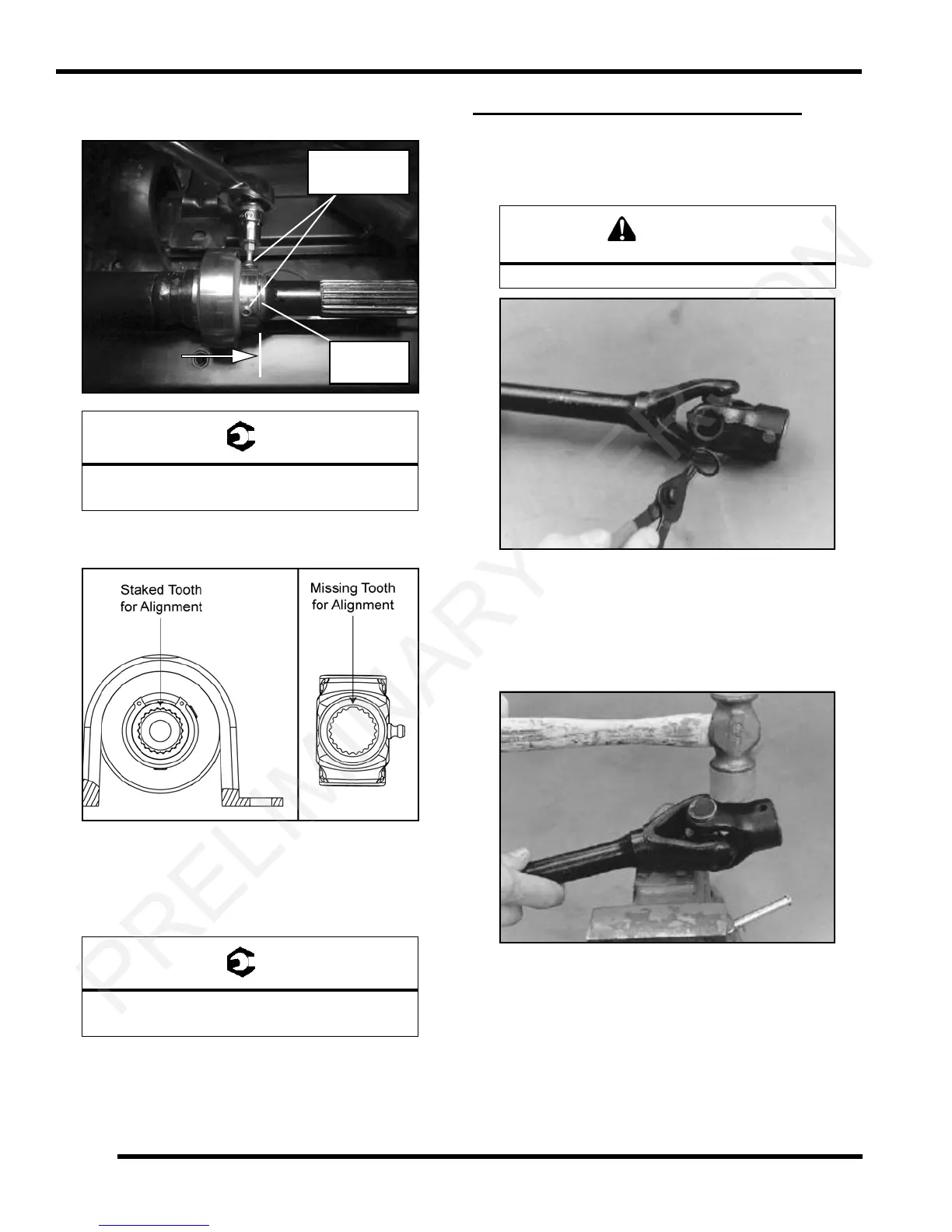

6. Apply Loctite
®
242
™
to the set screw threads and
torque the (2) bearing set screws to specification.
7. Align the front and rear portions of the propshaft as
sho
wn below and slide them together.
8. Install the rubber isolator over the bearing.
9. Install the upper and lower halves of the bearing
sup
port along with the (2) fasteners. Torque the
support bearing fasteners to specification.
10. Install the front portion of the propshaft onto the front
gearcase and install
a NEW roll pin.
11. Reinstall the center console, selector handle and front
seat
s.
PROPSHAFT U-JOINT SERVICE
Disassembly
1. Remove internal or external snap ring from bearing
caps.
NOTE: If yoke or bearing is removed, cross bearing
mu
st be replaced. Note orientation of grease fitting
and mark inner and outer yoke for correct re-
positioning during installation.
2. Support inner yoke as shown and drive outer yoke
down (
bearing cap out) with a soft face hammer.
= T
Bearing Set Screws:
30-35 in-lbs (3.4-4.0 Nm)
= T
Support Bearing Fasteners:
16-18 ft-lbs (22-24 Nm)
30-35 in-lbs
(3.4-4.0 Nm)
Retaining
Ring
CAUTION
Always wear eye protection.
PRELIMINARY VERSION
