9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

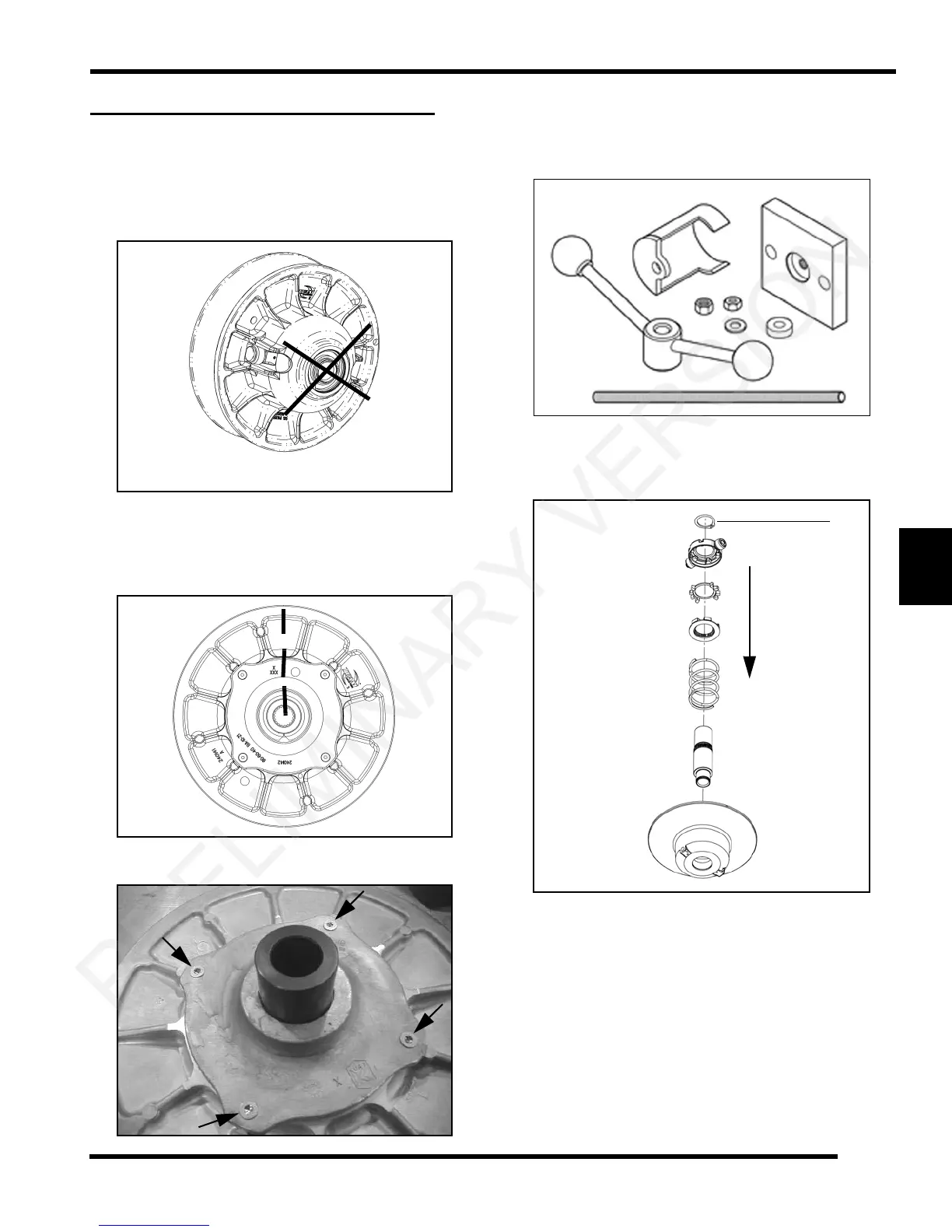

DRIVEN CLUTCH SERVICE (EBS)
Clutch Disassembly
1. Remove driven clutch from the transmission input
shaft. Do not attempt disassembly of the driven clutch
from the outside snap ring. The driven clutch must be
disassembled from the helix side.
2. It is important to mark the position of the shaft, cam
cover
and sheave before disassembly or use the X’s
on the components for reference. This will aid in
reassembly and helps to maintain clutch balance after
reassembly.
3. Remove the four screws that secure the cam (helix)
a
ssembly using a T25 Torx driver.
4. Place the driven clutch into the
Universal Clutch
Compressor PU-50518.
5. Press down on the top of the spider assembly,
p
ushing the spider onto the shaft. Remove snap ring
(A) and slowly release the assembly.
Do not disassemble from this side
PU-50518
Press down
on spider
A
