6.26
CLUTCHING
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

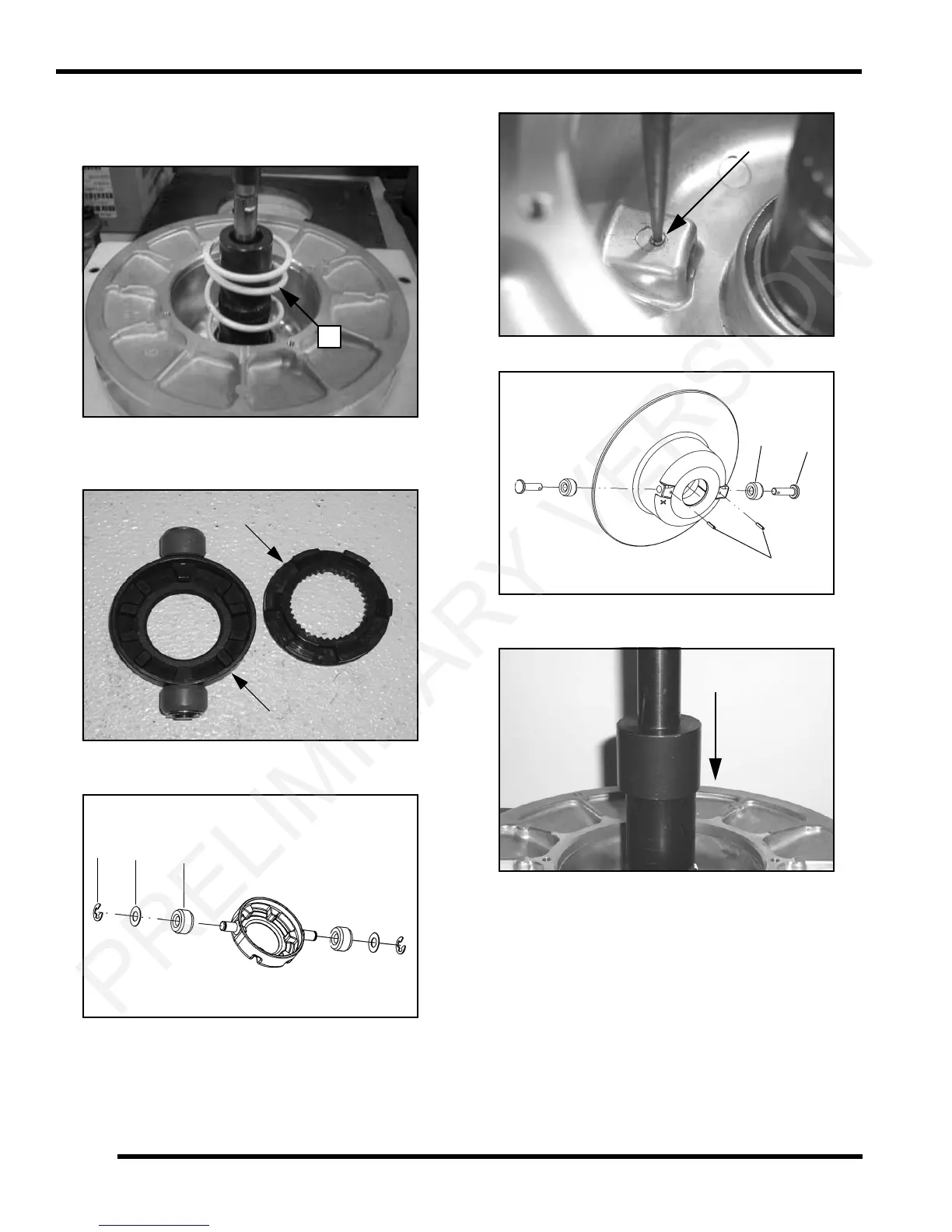

6. Remove the spider assembly and spring (B).
NOTE: Spring is compression only and has no
torsi
onal wind.
7. Remove the inside spider plate (D) and spider
d
ampener (E). Inspect the spider dampener (E) for
wear and replace if needed.
8. Remove the E-clips (F), washers (G), and the clutch
r
ollers (H). Inspect the rollers for wear; replace if worn.
9. Remove the clutch assembly from the holding tool.
10. Press out the spring pins (I) in the inner sheave.
11. Pull out the clutch roller pins (J) and rollers (K).
12. Press the shaft and bearing out of the outer sheave
using
an arbor press.
B
E
D
H
G
F
I
I
K
J
PRELIMINARY VERSION
