FINAL DRIVE
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

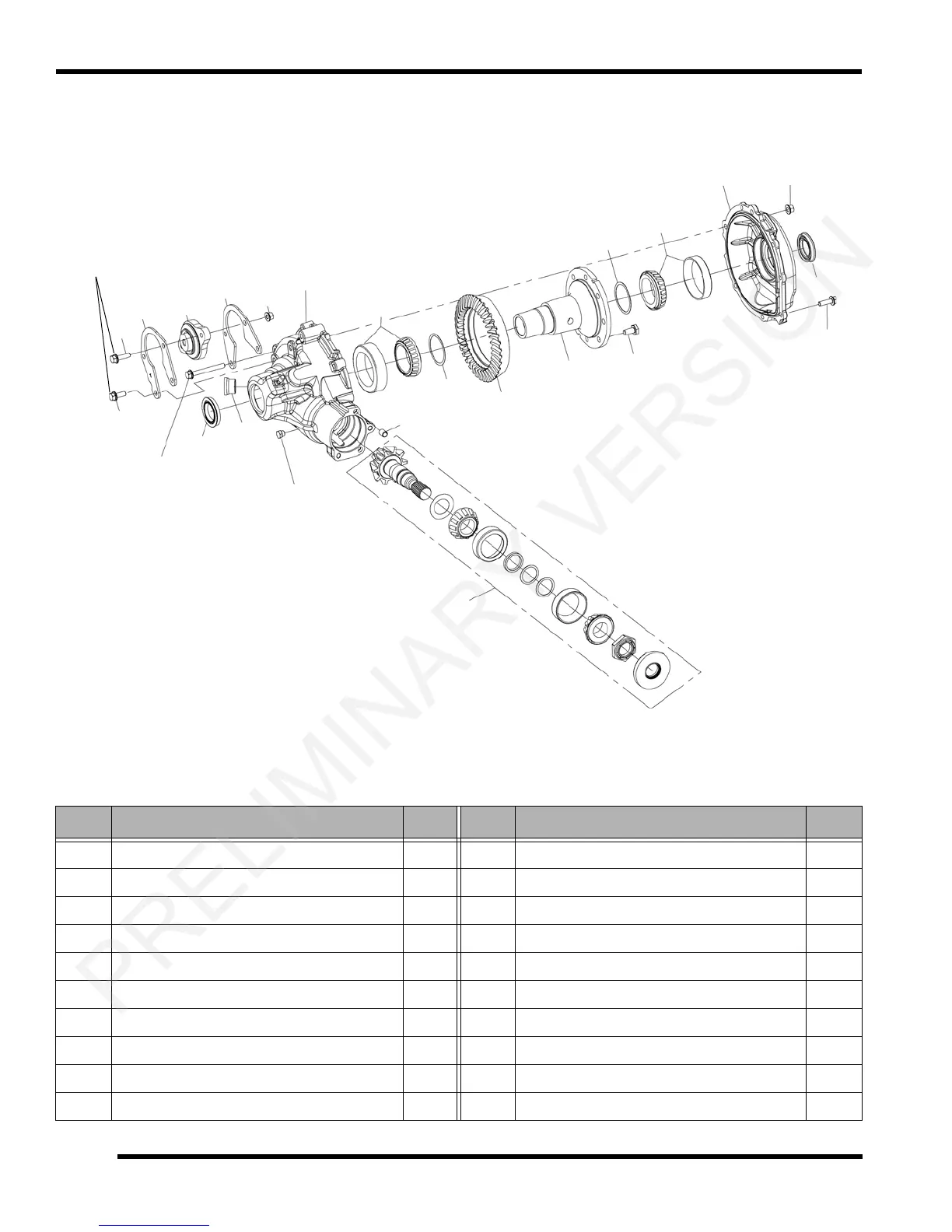

Gearcase Exploded View
REF# DESCRIPTION QTY REF# DESCRIPTION QTY
1 Screw 2 11 N/A 1
2 Screw 2 12 Axle, Spool 1
3 Bracket, Rear Mount, RH 1 13 Housing, Rear, LH 1
4 Bracket, Rear Mount, LH 1 14 Screw, Flange Head 2
5 Mount, Rear 1 15 Seal, Oil 2
6 Nut, Flanged 4 16 Screw, Flange Head 4
7 Assembly, Rear Housing, RH 1 17 Screw 8
8 N/A 1 18 Dowel 2
9 Assembly, Tapered Roller Bearing 2 19 Plug, Drain w/O-Ring 1
10 Shim 2 20 Plug, Fill w/O-Ring 1
1
2
3
4
5
6
7
9
10
7
13
14
15
16
17
18
19
12
20
30-45 in-lbs
(3-5 Nm)
40 ft-lbs
(54 Nm)
23-27 ft-lbs
(31-37 Nm)
10
9
6
16
7
70-80 ft-lbs
(95-108 Nm)
23-27 ft-lbs
(31-37 Nm)
23-27 ft-lbs
(31-37 Nm)
