10.17
ELECTRICAL
10
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
6. To exit the diagnostic mode, press and hold the
MODE button or turn the ignition key OFF once the
codes are recorded.
NOTE: If there is a diagnostic problem with the
power steering system, the power steering MIL will
illuminate and blink in place of the check engine MIL.

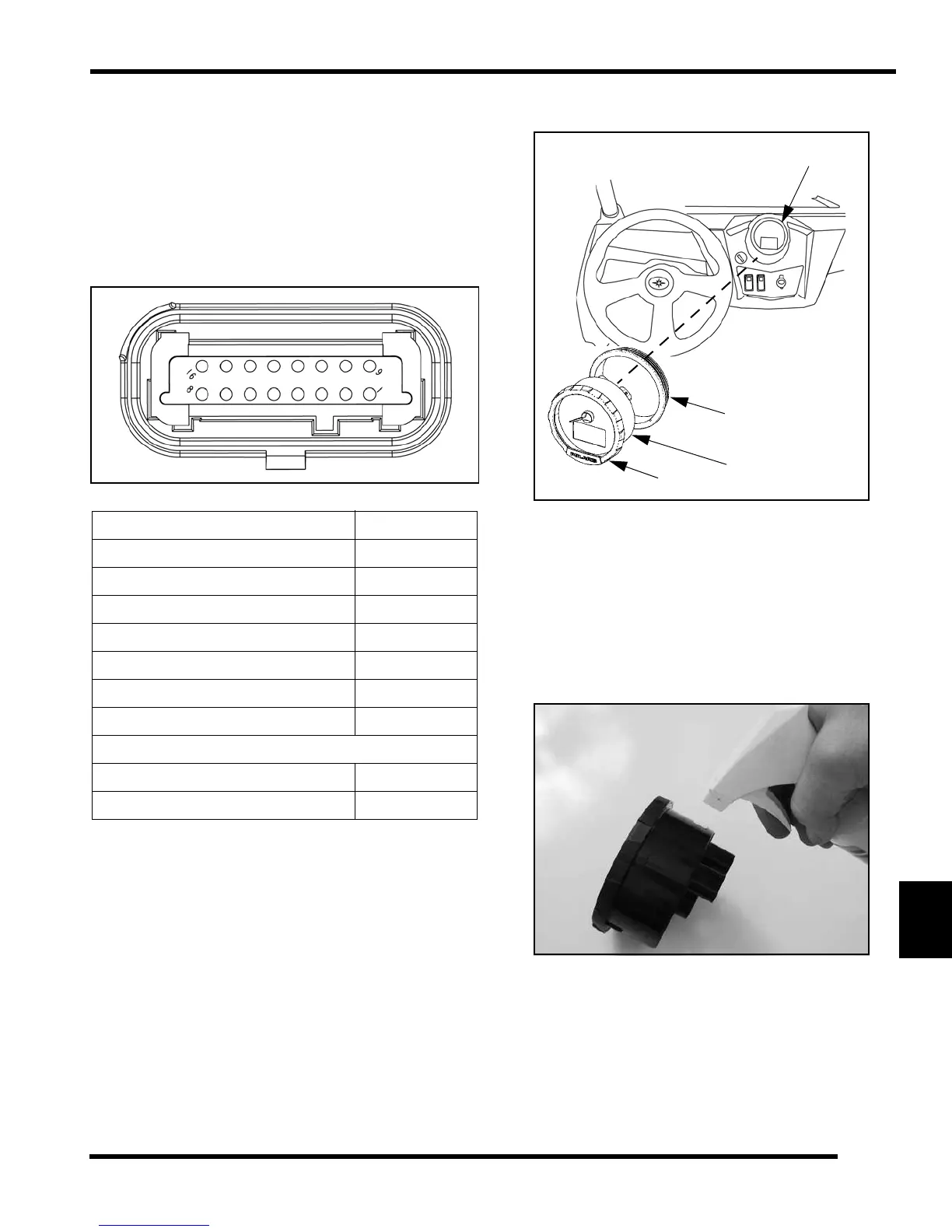

Instrument Cluster Pinouts
Instrument Cluster Removal
NOTE: Do not allow alcohol or petroleum products
to come in contact with the instrument cluster lens.
1. Disconnect the wire harness connector from the back
side of the instrument cluster.
2. Push instrument cluster out from back side of the dash
while securely holding the dash and rubber mount.
NOTE: Do not remove the rubber mount from the
dash panel. Only remove the rubber mount if
necessary. The bezel is a snap-on assembly and is a
serviceable part.
Instrument Cluster Installation
1. Spray a soap and water mixture onto outer surface
area of instrument cluster. This will help the
instrument cluster slide into the rubber mount easily.
2. Be sure the rubber mount inside the dash is fully
installed and that the indexing key on the rubber
mount is lined up with the keyway in the dash.
3. Hold dash securely and insert the instrument cluster
into the dash. Twist the instrument cluster gently in a
clockwise motion to properly seat the instrument
cluster into the rubber mount. Apply pressure on the
bezel while pressing down on the instrument cluster.
FUNCTION PIN
CAN High 1
CAN Low 2
Switched Power (Vdc) 3
Constant Power (Vdc) 4
Ground 5
High Beam Input 8
Fuel Level Sensor 11
International Models Only
Turn Signal Input, LH 6
Turn Signal Input, RH 7
Rubber Mount
Instrument Cluster
Bezel
Push Instrument
Cluster Outward
Dash Panel
To Next Page
