3.26
ENGINE / COOLING
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
ENGINE DISASSEMBLY AND INSPECTION

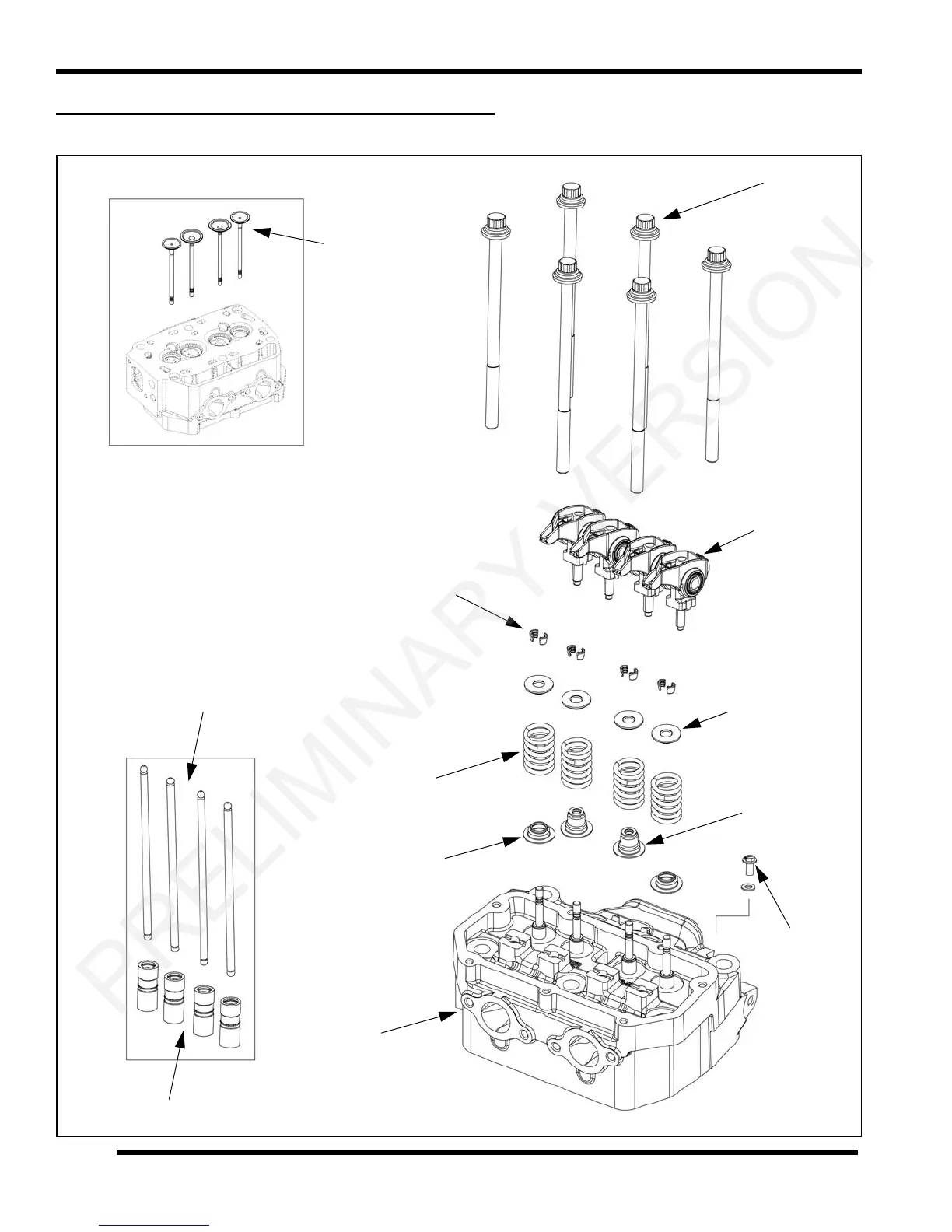

Cylinder Head Assembly Exploded View
Push Rods
Hydraulic Lifters
Valves
Cylinder Head
Coolant Bleeder
Springs
Spring Retainers
Rocker Arms
Retainer Locks (keepers)
Valve Spring Seats (2)
Valve Seals (2)
Head Bolts
PRELIMINARY VERSION
