4.27
ELECTRONIC FUEL INJECTION
4
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

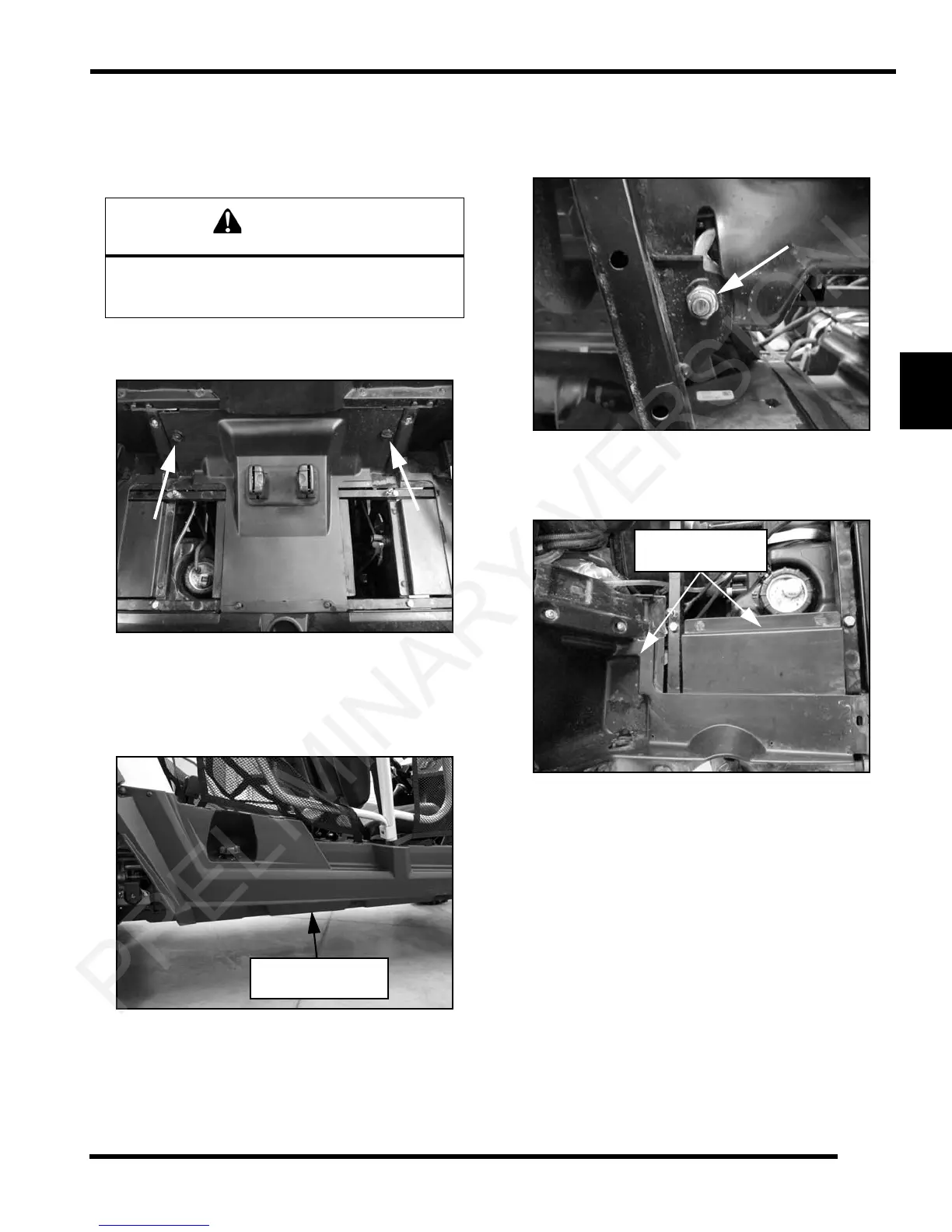

Fuel Tank Removal (RZR 4)
IMPORTANT: Syphon as much fuel from the tank as
possible before attempting to remove it from the
vehicle.
1. Remove the rear passenger seats along with the rear
serv
ice panel.
2. Remove the driver’s seat and disconnect the negative
b
attery cable from the battery.
3. Remove the push rivets and T27 Torx screws
r
etaining the RH rocker panel.
NOTE: Remove the fuel tank cap and carefully lift
t
he rocker panel up over the fuel tank filler neck.
Reinstall fuel tank cap once rocker panel is removed.
4. Remove the rocker panel from the vehicle.
5. Remove the lower bolt r
etaining the seat belt
mechanism near the rear RH portion of the fuel tank.
Once removed, place the mechanism in the rear
cargo box to keep it out of the way.
6. Remove the (3) Torx fasten
ers and (2) push rivets
from the rear RH panel divider. Remove the panel
divider from the vehicle (see Chapter 5).
Always wear safety goggles when working with
high pressure or flammable fluids. Failure to do so
could result in serious injury or complications.
Remove Rear
RH Panel Divider
To Next Page
