ELECTRONIC FUEL INJECTION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
7. Remove the rear seat support by removing the 5/16”
fastener and 7/16” fastener retaining the right side of
the rear seat support. Remove the 7/16” fastener from
the left side of the rear seat support. Remove the rear
seat support from the vehicle.
8. Remove both fuel tank bracket fasteners. Move the
fue
l tank brackets out of the way for removal of fuel
tank.
9. Disconnect the fuel pump electrical harness.
10. Remove fuel tank vent hose clamp with a suitable
plier
s and remove vent line from the tank vent fitting.
11. While holding a shop towel over the fuel line
co
nnector, disconnect the quick connect fuel line from
the fuel pump. Move the fuel line out of the way for
tank removal.
NOTE: A small amount of fuel may come out of the
f
uel line or tank. Properly drain fuel into a suitable
container.

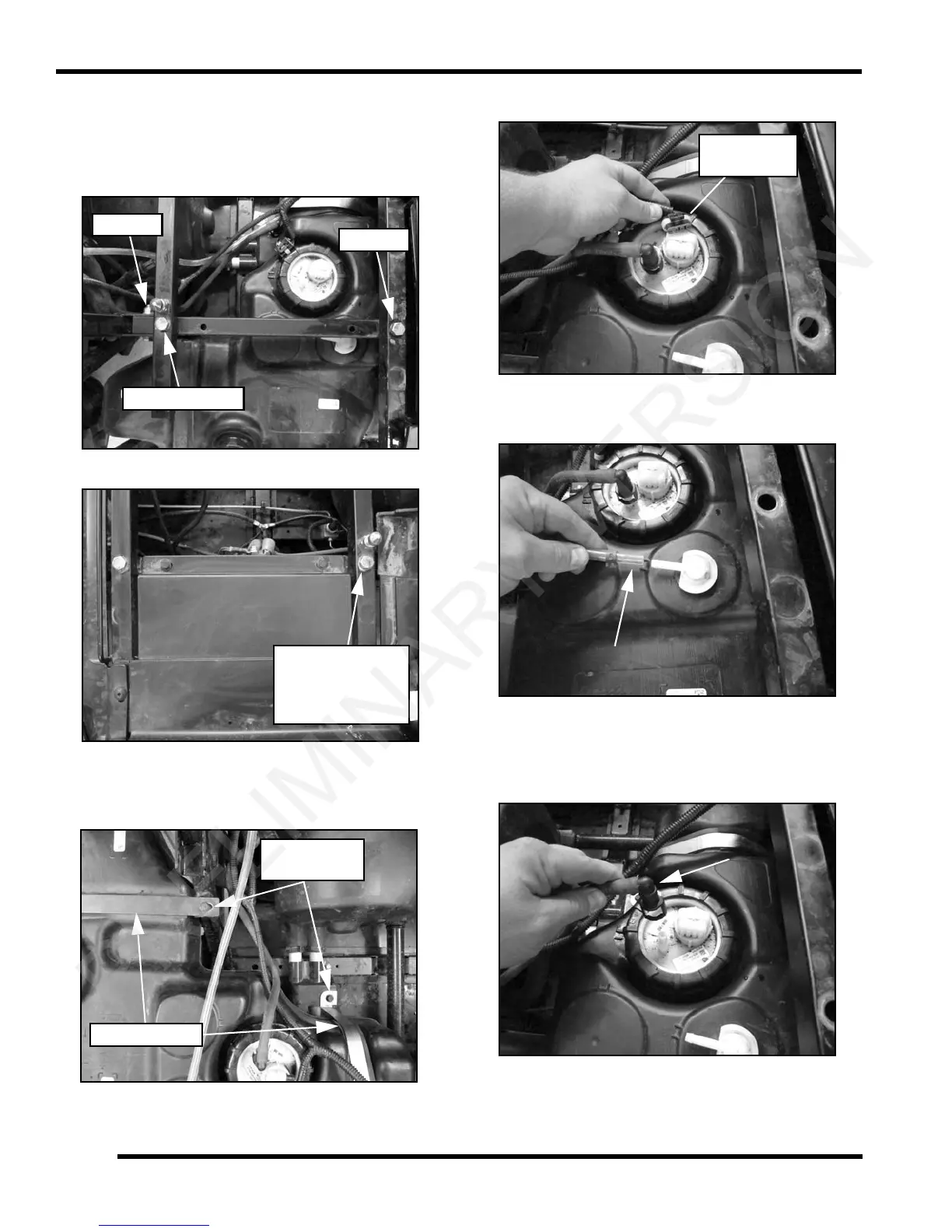

Remove
Do Not Remove
Remove
Only remove this
fastener from the
left side of the
rear seat support
Tank Bracket
Fasteners
Tank Brackets
Disconnect
Here
