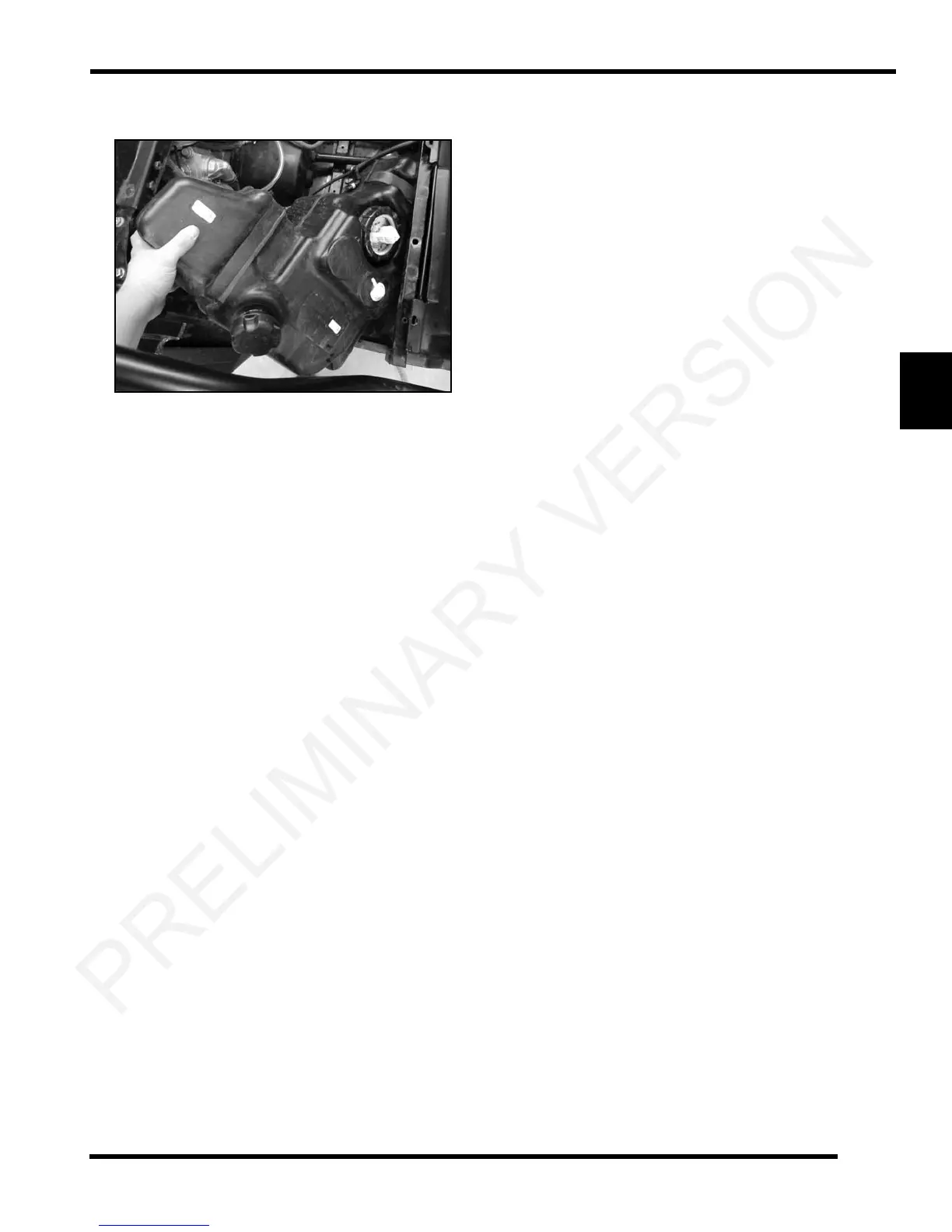

12. Lift the rear of the fuel tank up first and carefully lift the
fuel tank up and out from the vehicle.
Fuel Tank Installation
1. Carefully reinstall the fuel tank assembly.
2. Reinstall the (2) fuel tank brackets and fasteners.
3. Reinstall the (3) shift lever support bracket fasteners
(R
ZR / RZR S).
4. Reinstall the rear RH fender
well and secure with
fasteners (RZR / RZR S only). Reinstall the rear RH
panel divider and secure with fasteners (RZR 4).
5. Reinstall the seat belt mechanism and secure the
lower bolt.
6. Reinstall the RH rocker panel and all previously
r
emoved fasteners.
7. Reinstall the rear seat base / support assembly and
secure
with the fasteners.
8. Reinstall the center console and shift knob (RZR /
RZR S
only).
9. Install the fuel line, vent hose and clamp. Verify they
ar
e secure.
10. Reconnect the fuel pump electrical harness.
11. Reconnect the negative batte
ry cable. Test the fuel
pump by turning the ignition key on and listening for
the pump to activate. Check for leaks.
12. Finally, install the rear s
ervice panel along with the
seats.
