7.2
FINAL DRIVE
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
SPECIAL TOOLS
SPX Corp: 1-800-328-6657 or http://polaris.spx.com/
TORQUE SPECIFICATIONS
Wheel and Hub Torque Table

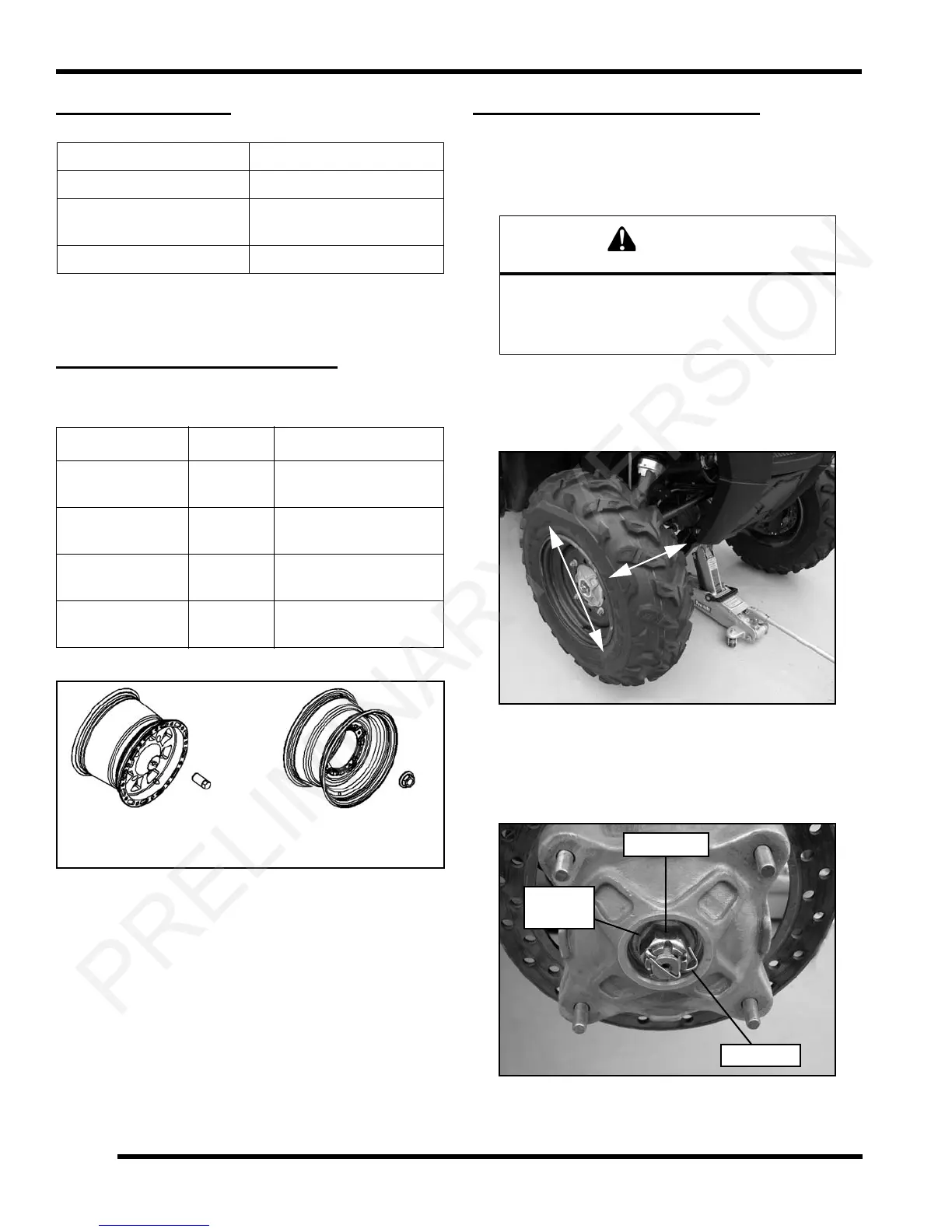

FRONT BEARING CARRIER
Bearing Carrier Inspection / Removal
1. Elevate front of vehicle and safely support machine
under the frame area.
2. Check bearings for side play by grasping the top and
bottom o
f the tire firmly and checking for movement.
The tire should rotate smoothly without binding or
rough spots.
3. Remove the (4) wheel nuts and remove front
wheel.
4. Remove the cotter pin and loosen the front wheel hub
ca
stle nut. Remove the nut, and (2) cone washers
from the front wheel hub assembly.
5. Remove the fastener retaining the steering tie rod end
to
the front bearing carrier.
PART NUMBER TOOL DESCRIPTION
2872608 Roll Pin Removal Tool
8700226
CV Boot Clamp Pliers
(earless
type)
PU-48951 Axle Boot Clamp Tool
ITEM NUT TYPE SPECIFICATION
Aluminum Wheels
(Cast)
Lug Nut
(1
)
30 ft-lbs + 90° (1/4
turn)
Steel Wheels
(Black / Camo)
Flange Nut
(2
)
27 ft-lbs (37 Nm)
Front Hub
Castle Nut
- 80 ft-lbs (108 Nm)
Rear Hub
Castle Nut
- 80 ft-lbs (108 Nm)
#1
#2
Aluminum Wheel
(LE Models)
30 ft-lbs + 90° (1/4 turn)
Steel Wheel
(Standard Models)
27 ft-lbs (37 Nm)
Serious injury may result if machine tips or falls.
Be sure machine is secure before beginning this
service procedure. Wear eye protection when
removing bearings and seals.
Castle Nut
Cotter Pin
Cone
Washers
To Next Page
