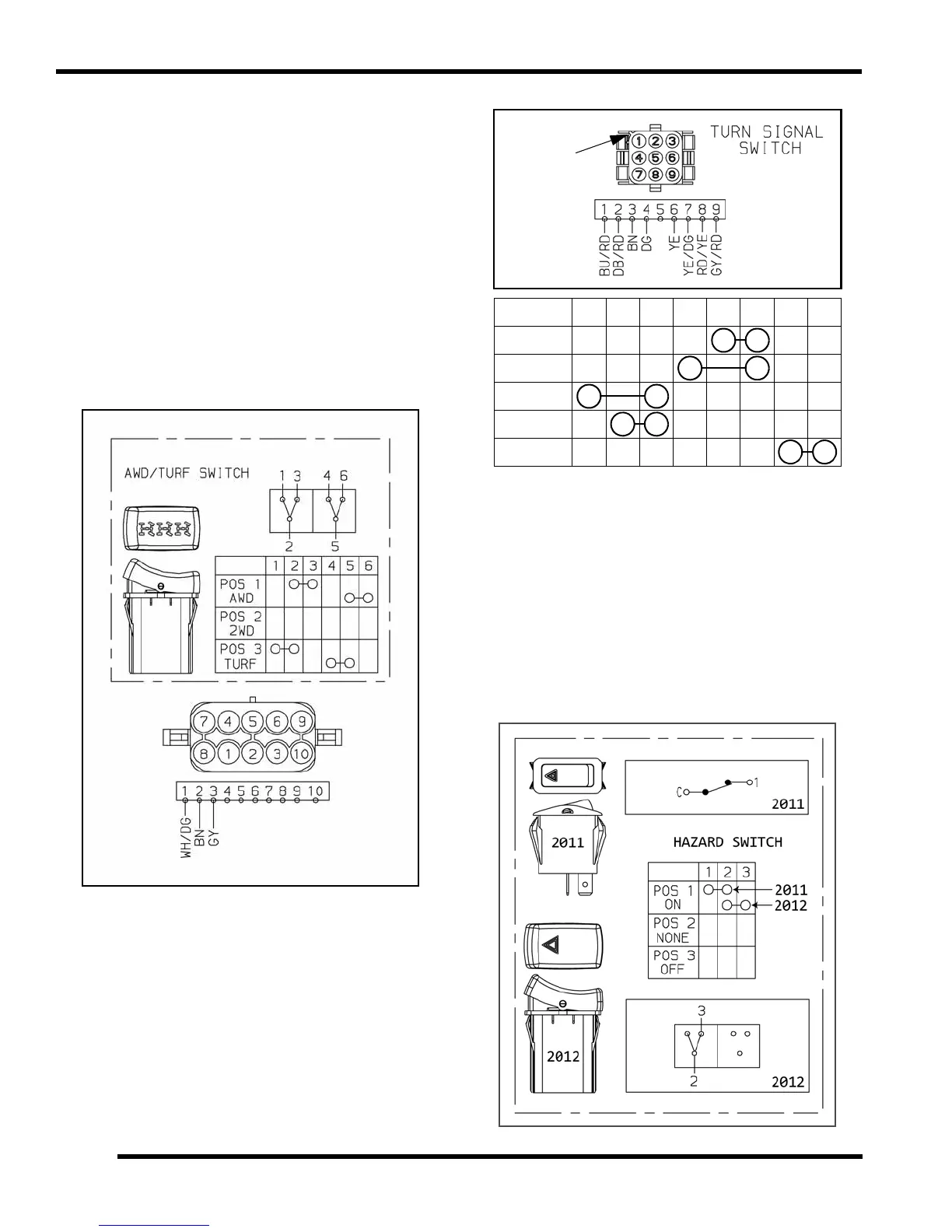

AWD / 2WD / TURF Switch (INT’L)
1. Disconnect the AWD / 2WD / TURF switch harness
by depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 3 sets of outputs (AWD / 2WD /
TURF). If any of the tests fail, replace the switch
assembly.
• Move the switch to AWD. There should be
continuity between switch pins 2 and 3; 5 and 6.
• Move the switch to 2WD. There should be no
continuity between any pins.
• Move the switch to TURF. There should be
continuity between switch pins 1 and 2; 4 and 5.
Turn Signal Switch (INT’L)
1. Disconnect the Turn Signal switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 5 sets of outputs (HI BEAM / LO
BEAM / L-TURN / R-TURN / HORN). If any of the tests
fail, replace the switch assembly.
Hazard Switch (INT’L)
1. Disconnect wires or harness from the Hazard switch.
2. Test between the outputs (ON / NONE / OFF). If any
of the tests fail, replace the switch assembly.
• Move switch to ON. 2011 Models: There should be
continuity between switch legs 1 and 2. 2012
Models: There should be continuity between
switch pins 2 and 3.
• Move switch to NONE / OFF. There should be no
continuity between switch legs or pins.
1 2 3 4 6 7 8 9
HI BEAM
LO BEAM
L - TURN
R - TURN
HORN
