ELECTRONIC FUEL INJECTION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

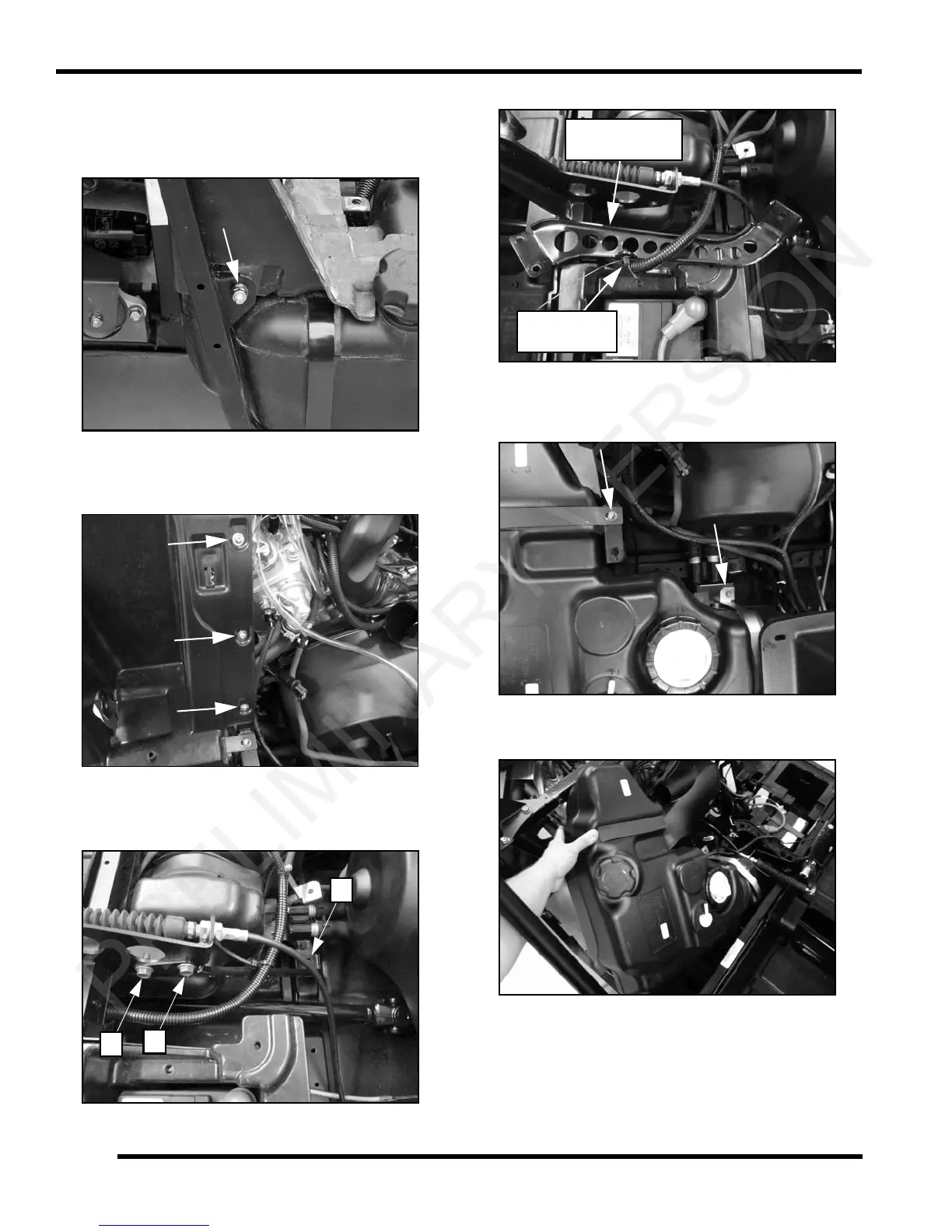

9. Remove the lower bolt retaining the seat belt
mechanism near the rear RH portion of the fuel tank.
Once removed, place the mechanism in the rear
cargo box to keep it out of the way.
10. Remove the (3) Torx fasteners from the rear RH
fen
der well and remove the fender well from the
vehicle (see chapter 5).
11. Remove the (3) shift lever support bracket bolts and
p
lace the bracket out of the way of the fuel tank, but
do not remove or cut the plastic wire harness retainer.
12. Remove the (2) tank bracket fasteners that retain the
fu
el tank in the chassis. Swing the tank brackets clear
of the fuel tank for removal.
13. Lift the rear of the fuel tank up first
and carefully pull
it up and out from the vehicle.
1
2
3
Do not cut
plastic strap
Set bracket by
shift lever
