7.48
FINAL DRIVE
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

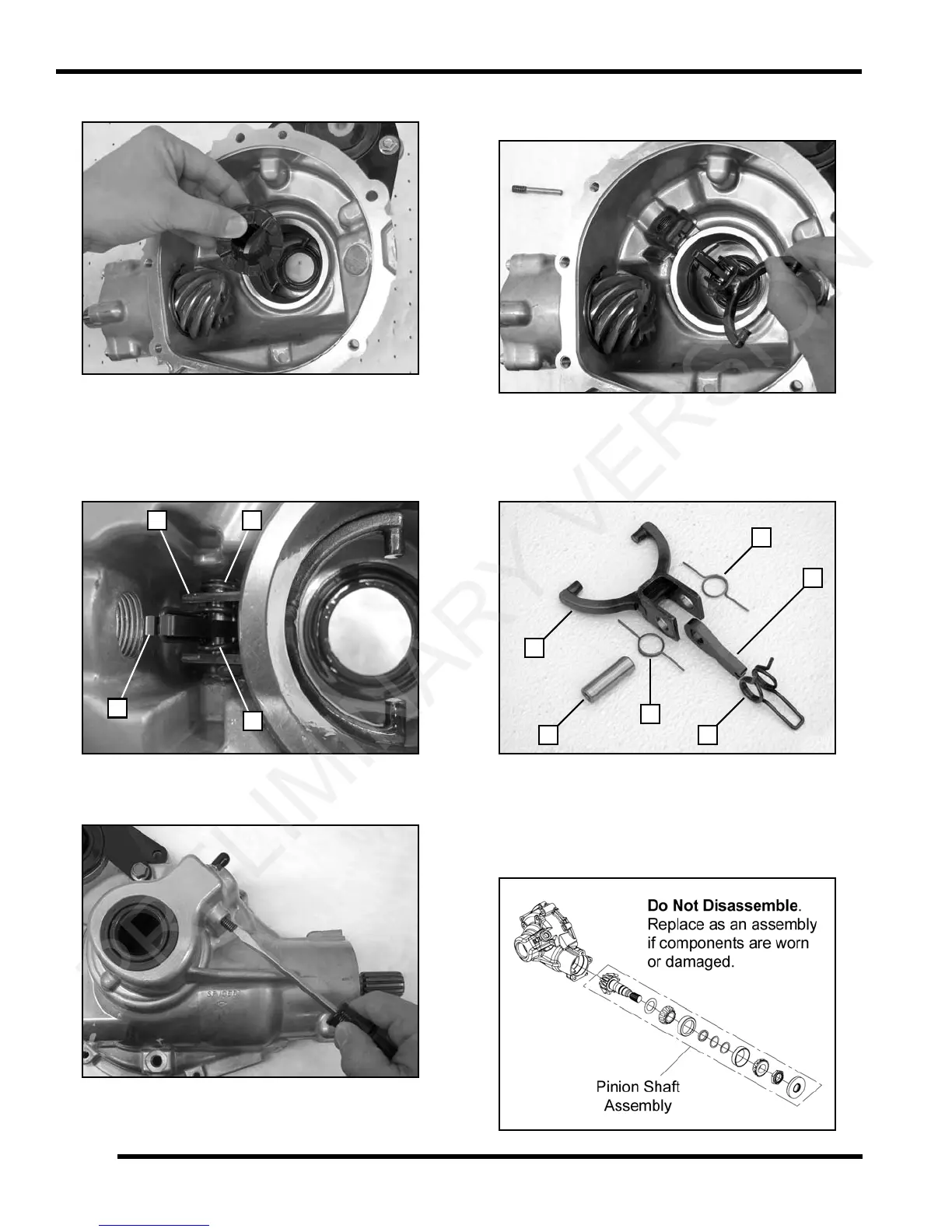

15. Remove the clutch gear from the gearcase.
16. Inspect the shift lever (A), shift lever spring (B), shift
re
turn springs (C), and shift yoke (D) for excessive
wear or damage. If disassembly is required, proceed
to the next step. If no disassembly is required,
proceed to “Gearcase Assembly”.
17. Loosen and remove the lock pin assembly from the
g
earcase housing.
18. Carefully remove the shift yoke
assembly from the
gearcase cover.
19. Inspect the shift lever (A), shift lever spring (B), shift
retu
rn springs (C), shift yoke (D), and lock pin bushing
(E). Inspect the components for excessive wear or
damage and replace as needed.
NOTE: The pinion shaft assembly is NOT intended
to b
e disassembled from the case, as it requires
special OEM tooling in order to properly reassemble.
If there is any damage to the pinion gear, bearings or
case, the gearcase assembly must be replaced.
B
CD
A
A
B
C
C
D
E
PRELIMINARY VERSION
