7.47
FINAL DRIVE
7
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

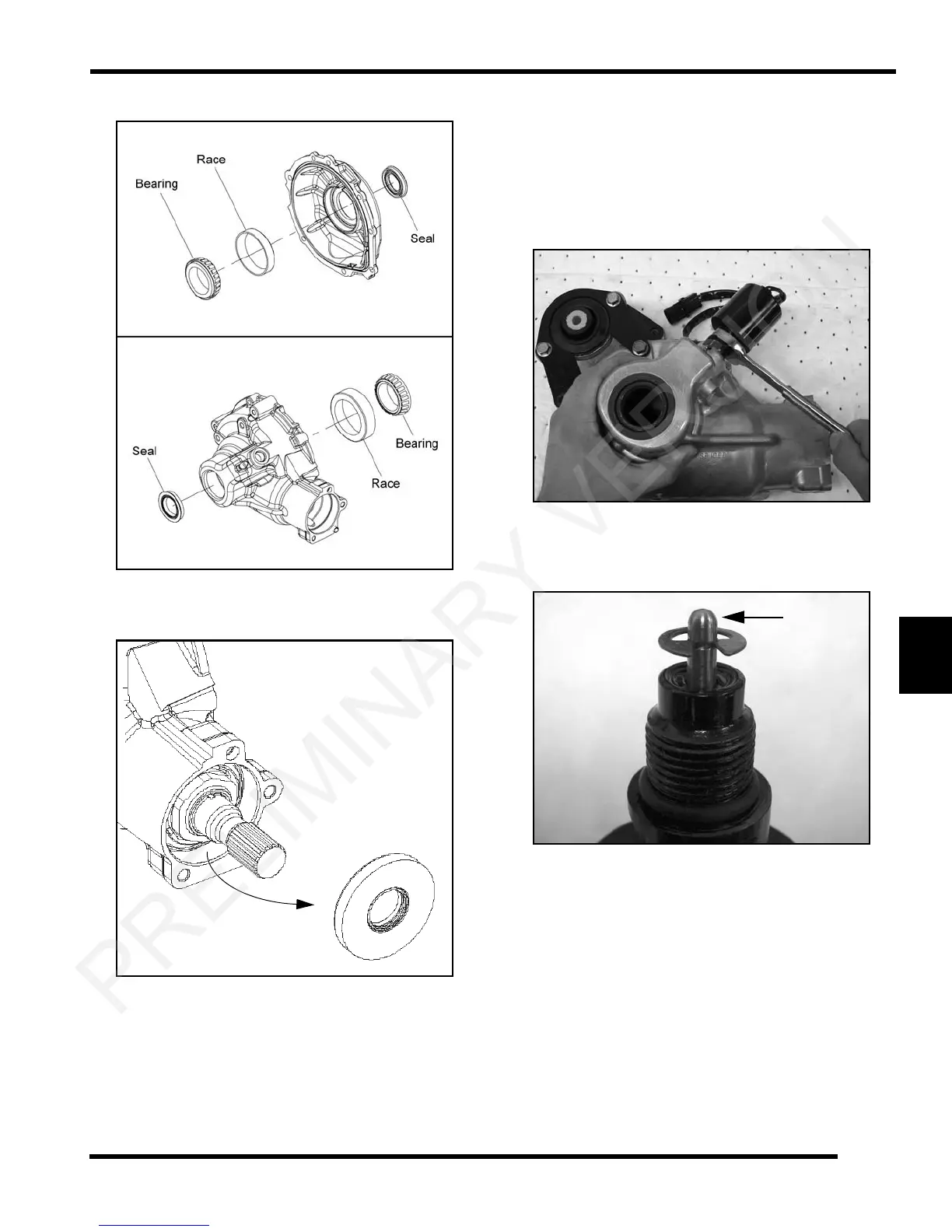

10. Remove seals from the gearcase housing and cover.
11. Remove the pinion shaft seal using a seal puller or
o
ther suitable method.
12. Inspect the pinion shaft by r
otating the assembly in the
gearcase housing while checking for any looseness or
roughness. Inspect the pinion gear for chipped, worn,
or broken teeth. If damaged, replace the gearcase
assembly.
NOTE: In the event damage to the gears, pinion
bear
ings or housing requires replacement, the entire
assembly must be replaced.
13. Remove the differential soleno
id from the gearcase if
servicing the solenoid, shift lever, shift lever spring, or
shift yoke. If none of these items are being serviced,
the solenoid can remain installed in the gearcase.
14. If the solenoid was removed for servicing, inspect the
tip
of the solenoid for wear. If the tip of the solenoid is
flattened, the solenoid must be replaced.
