FINAL DRIVE
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

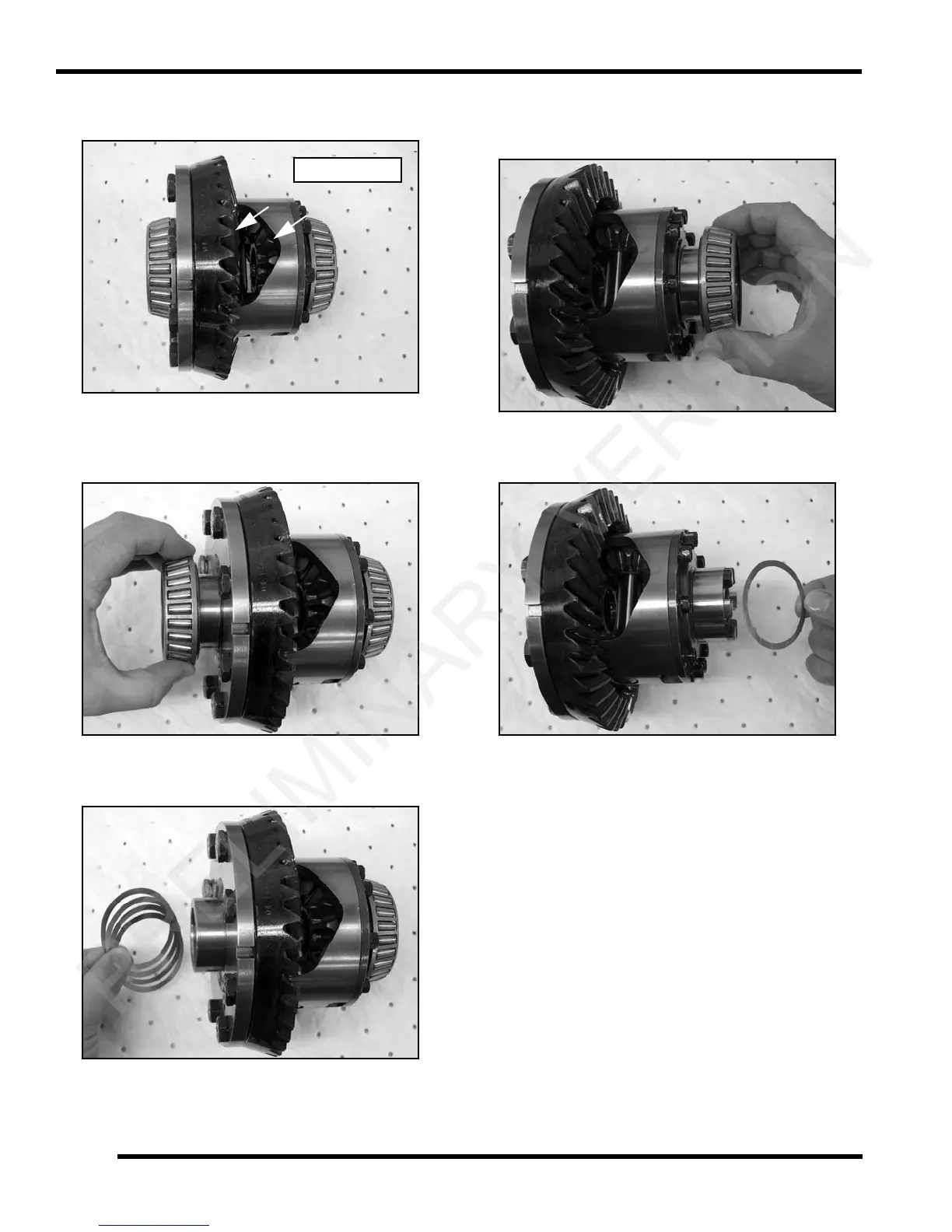

4. Inspect the ring gear and differential gears for
chipped, worn, or broken teeth.
5. Remove the bearing from the top portion of the
d
ifferential assembly. Inspect the bearing for
smoothness and wear.
6. Remove the shim(s) from the differential assembly.
Be sure to k
eep the shims together for reassembly.
7. Remove the bearing from the lower portion of the
diffe
rential assembly. Inspect the bearing for
smoothness and wear.
8. Remove the shim(s) from the differential assembly.
B
e sure to keep the shims together for reassembly.
9. Inspect each differential bearing and race for signs of
we
ar or damage. If bearing replacement is required,
use standard bearing puller tools to remove the
bearing races.
Inspect Teeth
