4.14
ELECTRONIC FUEL INJECTION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

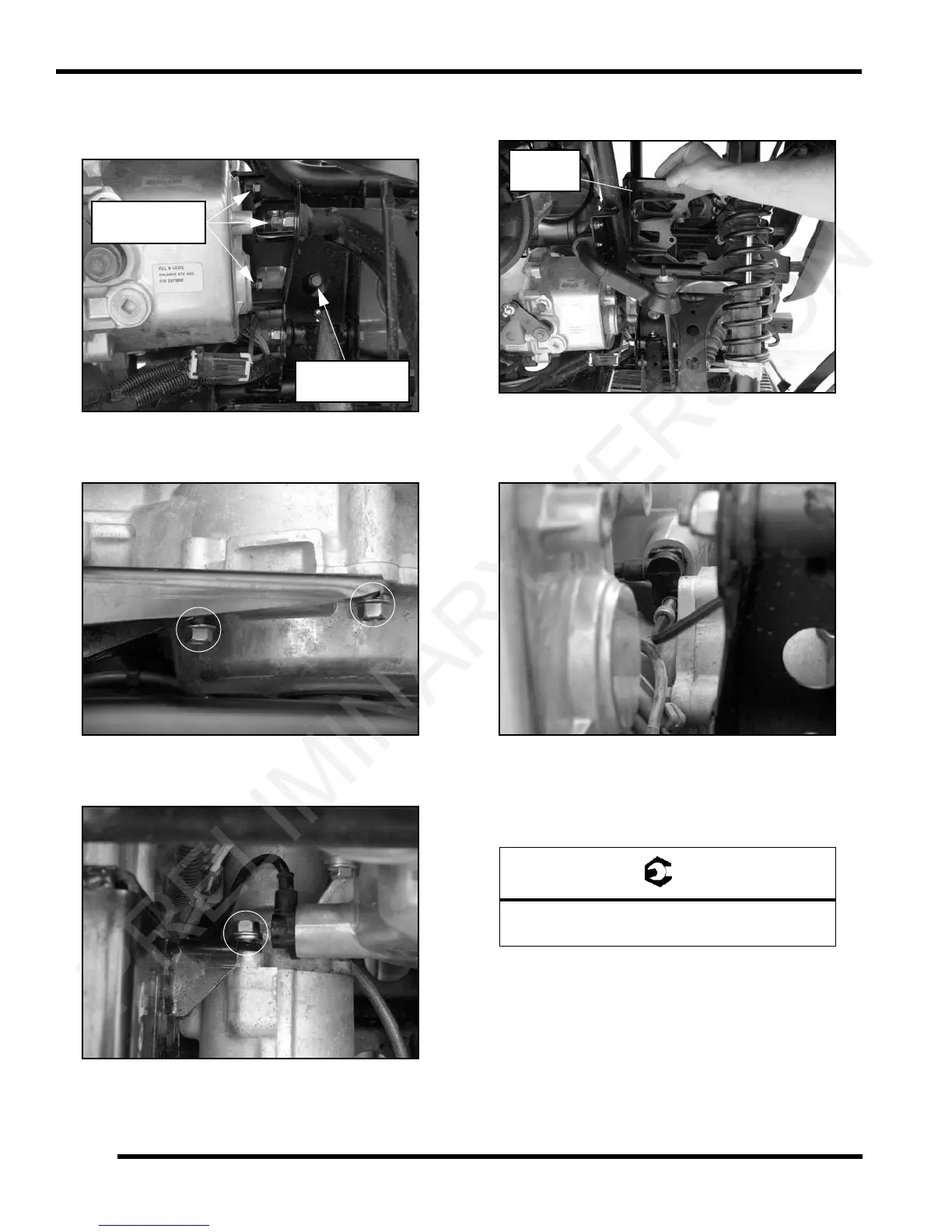

5. Remove the bottom bolt that attaches the bracket to
the rear gearcase through the hole in the frame
support as shown.
6. Remove the (2) remaining fasteners that attach the
b
racket to the side of the rear gearcase.
7. Remove the bolt from the bracket at
the front of the
rear gearcase.
8. Lift the mounting bracket straight up and out from the
ve
hicle.
9. Using a 5 mm hex wrench, remove the CPS retaining
bolt a
nd remove the sensor from the magneto
housing.
10. Install new sensor using a light coating of oil on the
O-r
ing to aid installation.
11. Torque the CPS retaining bolt to specification.
Rear Gearcase
Mounting Bolt
Transmission
Mounting Bolts
= T
CPS Retaining Bolt:
25 in-lbs (2.8 Nm)
Remove
Bracket
PRELIMINARY VERSION
