4.16
ELECTRONIC FUEL INJECTION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

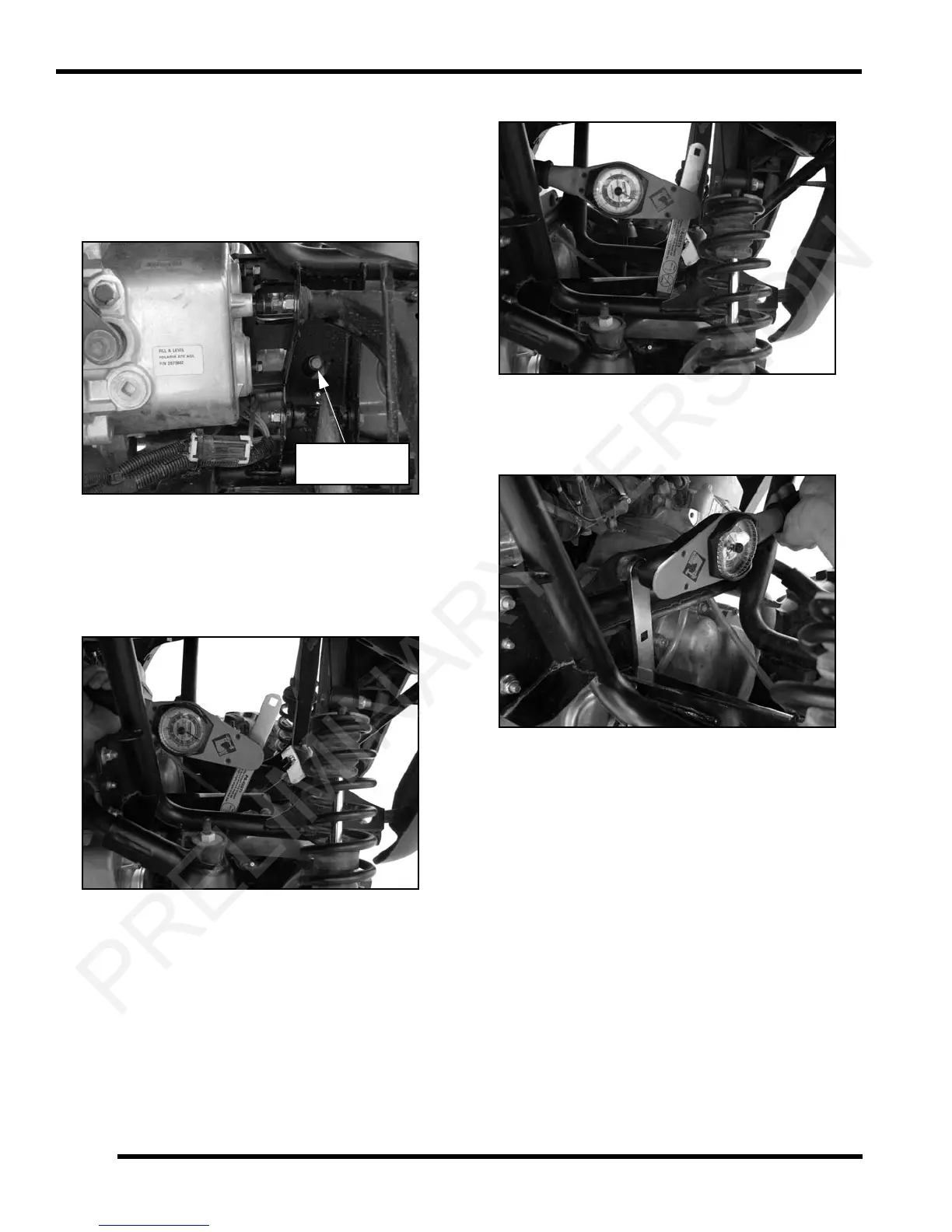

5. Remove the special tool and attach an extension to
the torque wrench. Torque the bottom bolt that
attaches the bracket to the rear gearcase through the
hole in the frame support.
Bottom Rear Gearcase Bolt
NOTE: Special Tool is not required for this torque.
6. Using special tool (PA-48873), torque the upper (2)
b
olts retaining the mounting bracket to the rear
gearcase. Place the torque wrench through the rear
exhaust silencer opening to gain access to the bolts.
Middle Rear Gearcase Bolt
Upper Rear Gearcase Bolt
7. Torque the remaining bolt that attaches the bracket to
th
e front side of the rear gearcase.
Front Rear Gearcase Bolt
NOTE: A multi-directional torque wrench is required
in t
his application because of the limited access to
this bolt. Check with the manufacturer of your torque
wrench to see if it can be used to tighten left-hand
threaded bolts.
Torque with
an extension
PRELIMINARY VERSION
