ELECTRONIC FUEL INJECTION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

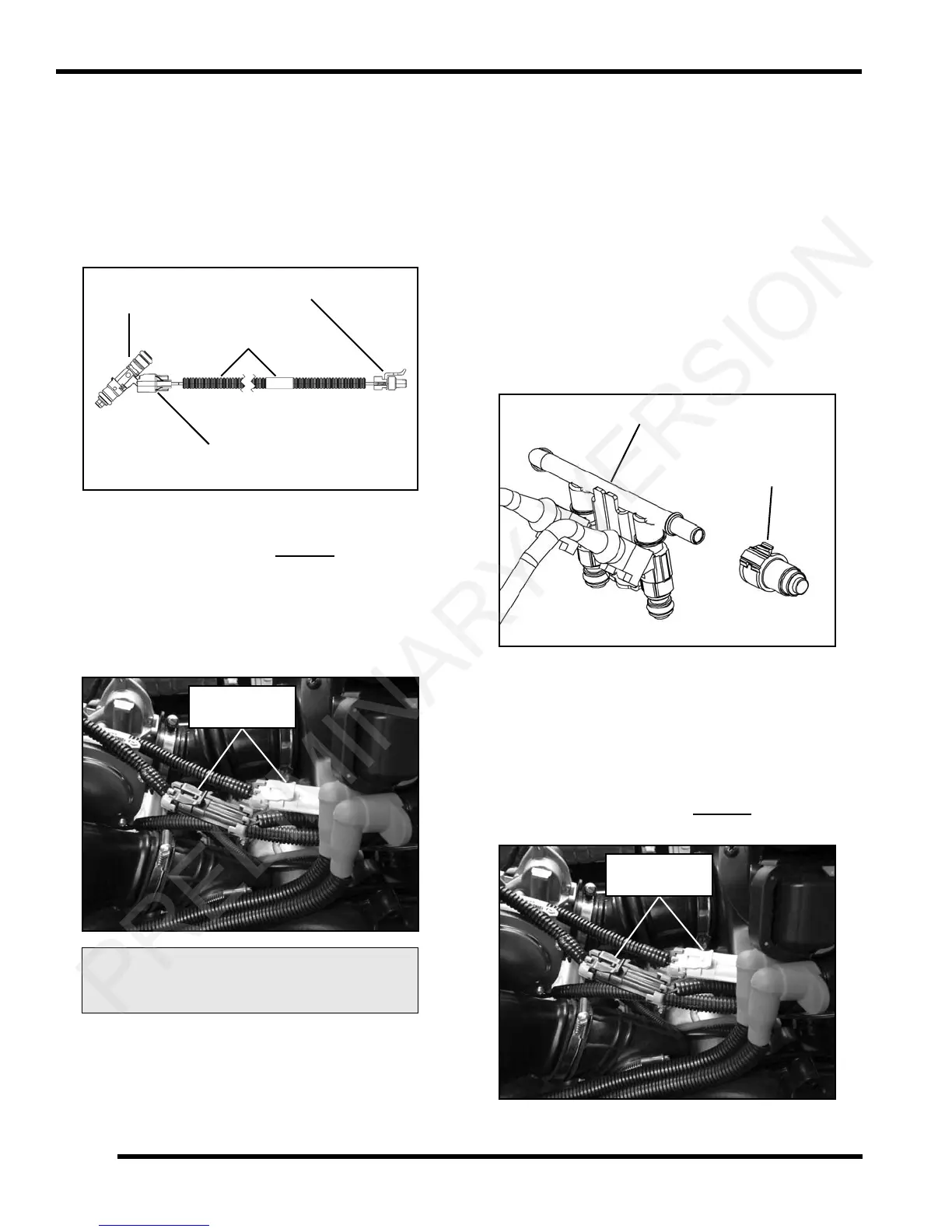

Fuel Injector Test
NOTE: The harness connector and locking spring is
bonded to the fuel injectors with an epoxy. DO NOT
attempt to disconnect the connector from the fuel
injectors. Damage will occur to the injector and/or
harness if attempting to separate at that location.
Separate the fuel injector from the vehicle harness
as shown in the illustration below.
IMPORTANT: Take note of PTO and MAG fuel injector
ha
rness connectors before disconnecting them. The
harnesses are different and
can not be connected
incorrectly (PTO - Gray; MAG - Black).
The fuel injectors are non-serviceable. If diagnosis
in
dicates a problem with either injector, test the resistance
of the fuel injector(s) by measuring between the two
harness pin terminals:
NOTE: Be sure to connect like colored fuel injector
c
onnectors for proper engine function (PTO = GRAY,
MAG = BLACK).
Fuel Injector Replacement
1. Be sure the engine has cooled enough to work on.
2. Remove seats and rear service panel (see chapter 5):
• RZ
R / RZR S: Remove both driver and passenger
seats
• RZ
R 4: Remove both rear passenger seats
3. Remove the rear cargo box (see chapter 5).
4. Place a suitable container below the quick connect
plug
at the end of the fuel rail. Hold a shop rag over
the plug and remove it to depressurize the fuel
system.
5. Disconnect the harness for the fuel injector(s) located
next
to the ignition coil. Cut the plastic tie strap and
push the harness for the fuel injector(s) up over the
air box to allow fuel injector removal.
IMPORTANT: Take note of PTO and MAG fuel injector
harn
ess connectors before disconnecting them. The
harnesses are different and
can not be connected
incorrectly (PTO - Gray; MAG - Black).
Fuel Injector Resistance Specification:
11.4 - 12.6
Disconnect Here
DO NOT
Disconnect Here
Fuel
Injector
Harness
Fuel Rail
Quick Connect
Plug
To Next Page
