BODY / STEERING / SUSPENSION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
Rear Floor Removal (RZR 4)
1. Remove all four seats and both rocker panels (see
“
Rocker Panel Removal”).
2. Remove the T27 screws retaining the console to the
floor.
3. Remove the shift handle knob and remove the
co
nsole.
4. Disconnect the battery and remove it from the vehicle.
5. Remove the (8) fasteners that retain the lower portion
of
the mid cab frame to the main frame.
6. Remove the (2) fasteners that retain the side bars to
the
mid cab frame.
7. Remove the (8) fasteners that retain the upper portion
o
f the mid cab frame.

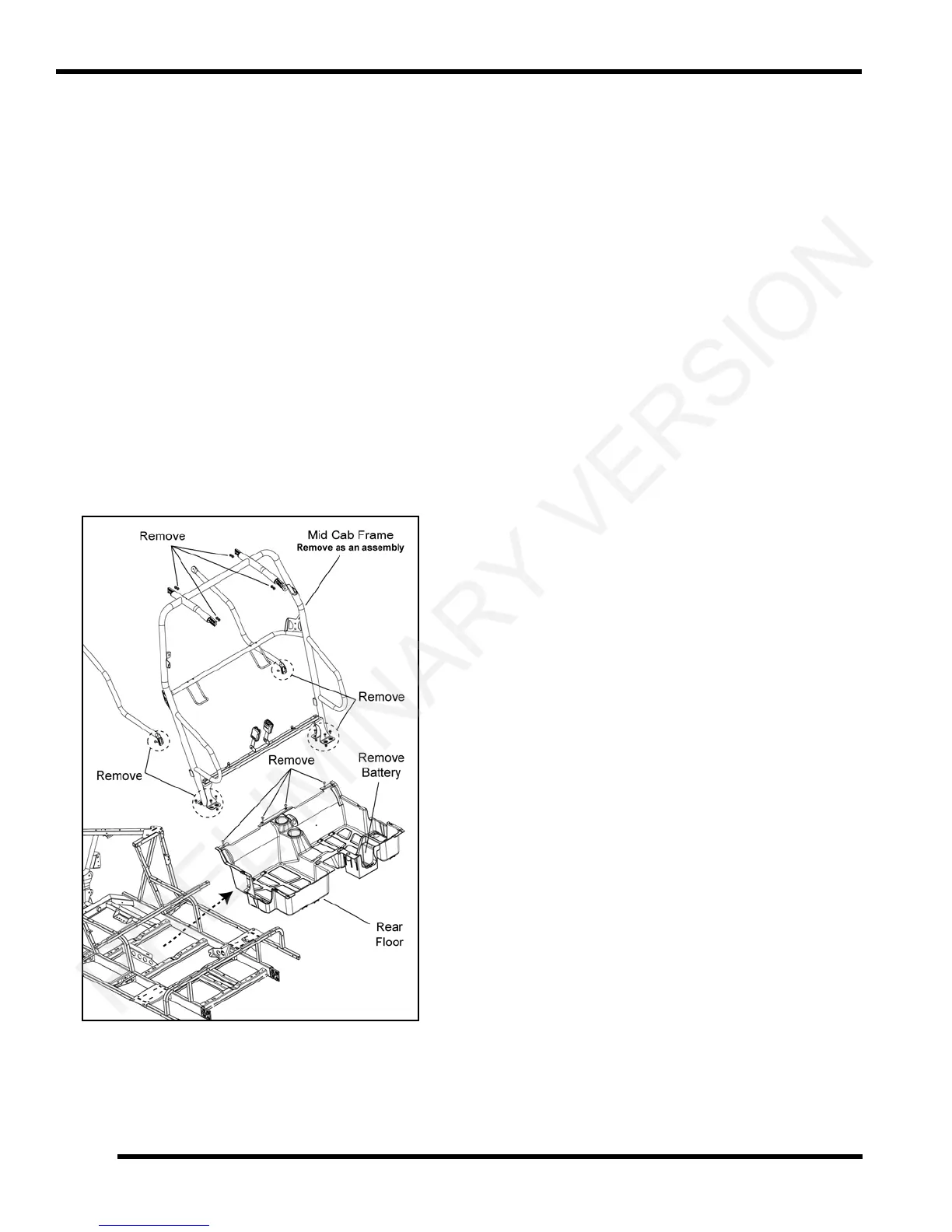

8. Using care, remove the mid cab frame from the
ve
hicle as an assembly.
9. Remove the Torx screws retaining the rear floor.
10. Disconnect the 12V outlet and ECU connector.
11. Remove the rear floor from the vehicle.
