BODY / STEERING / SUSPENSION
5
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.
27. Use the Top Fill Shock Fill Tool to charge the shock
to specification. Charge the shock for approximately
10 seconds (Fig. 27). During the charging process,
the shock rod must extend outwards.
28. Inspect both ends of the shock assembly for leaks.
29. Slide the shock body cap down to the body. Use a soft-
faced
hammer to drive the cap into the shock body
(Fig. 28).
30. Install the body cap and eyelet spherical bearings
u
sing an arbor press. Install the spiral rings on both
sides of the spherical bearings.
NOTE: After installation, be sur
e to RIDE SLOWLY
initially to ensure the shock and the vehicle’s
suspension is performing correctly.

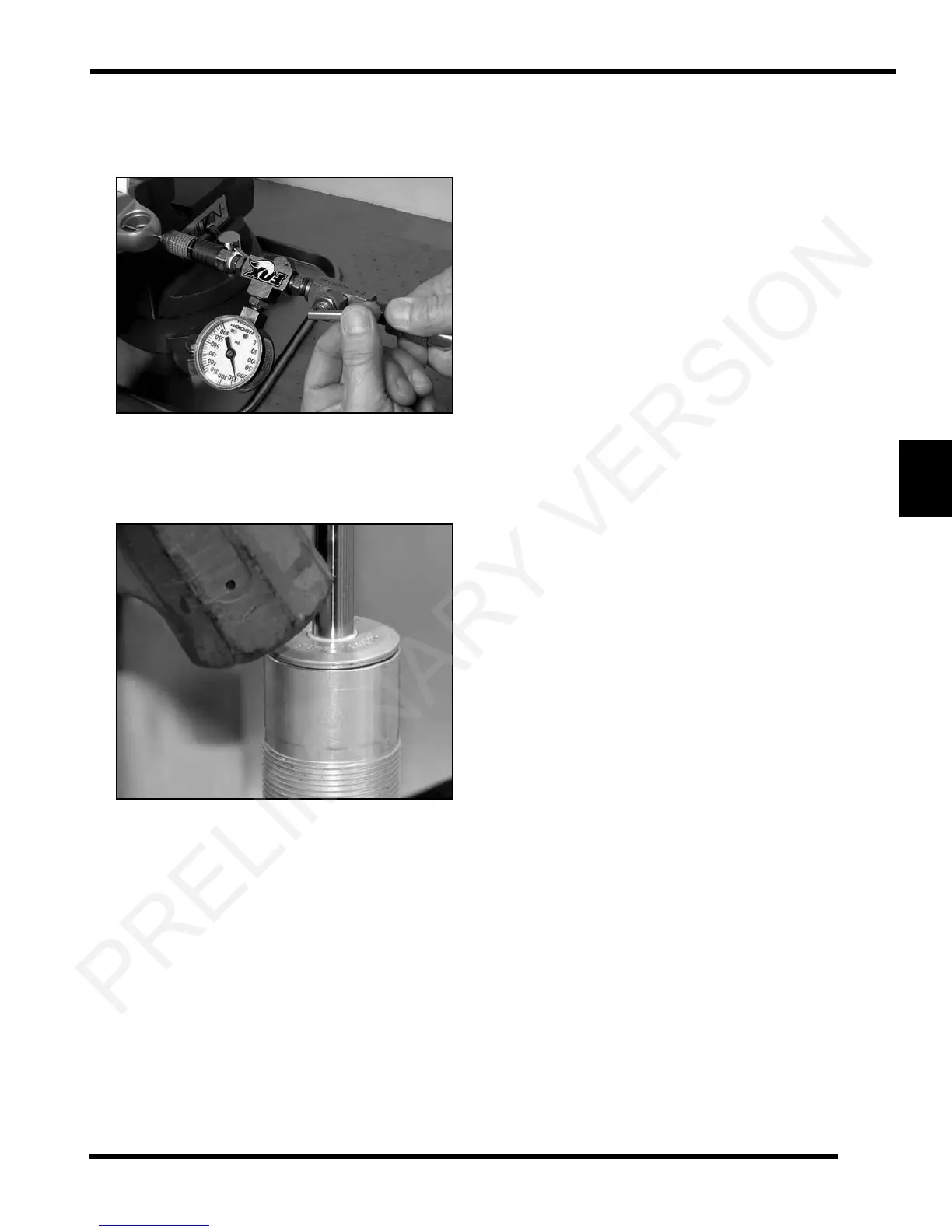

Figure 27
Figure 28
