7.23
FINAL DRIVE
7
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

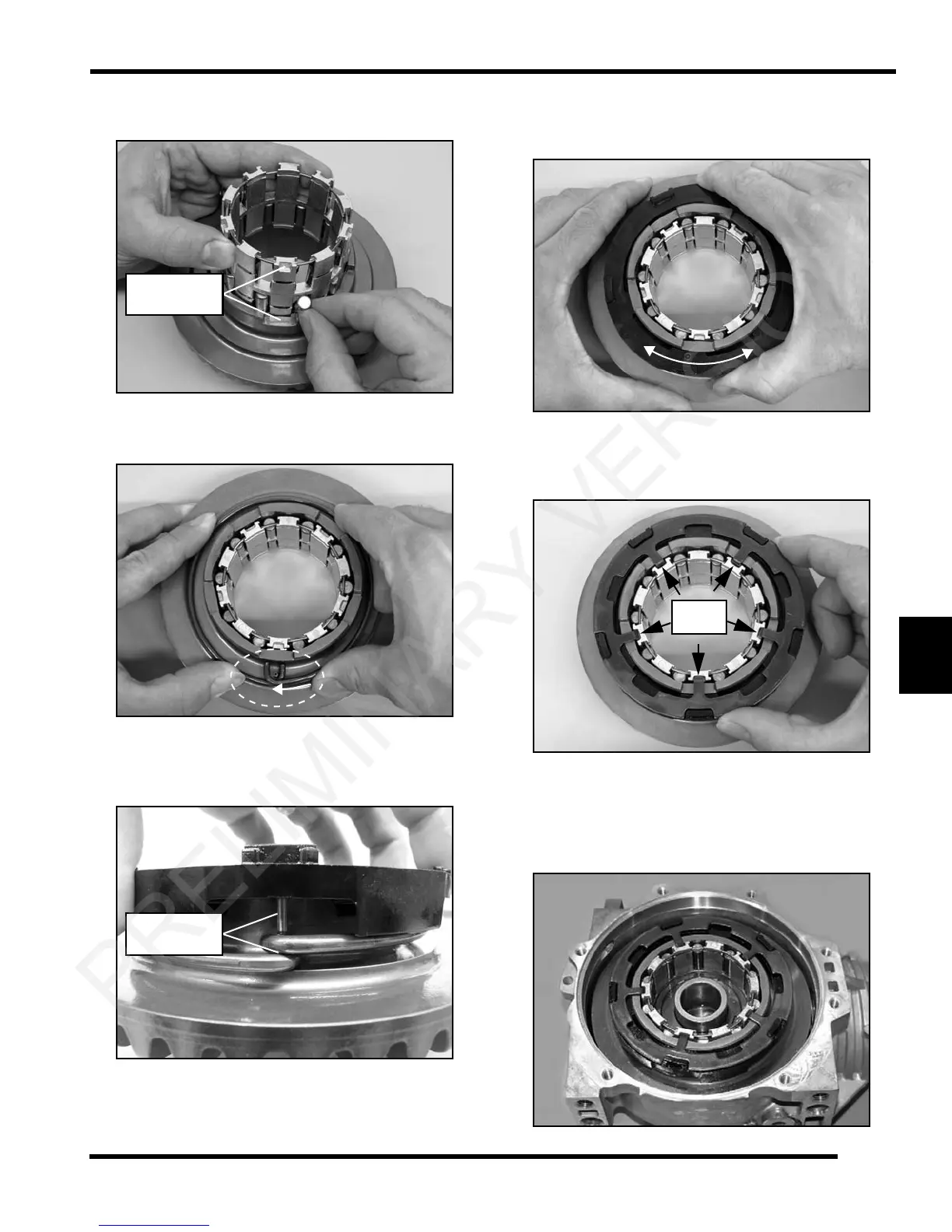

NOTE: Install the roll cage so that the ring gear
grooves line up with the roll cage slots (see below).
6. Install the torsion spring by wrapping each leg of the
spr
ing around the dowel pin on the ring gear.
7. Align the spring retainer dowel pin with the ring gear
d
owel pin and install the retainer on top of the torsion
spring.
8. Check the action of the torsio
n spring by rotating in
both directions to ensure the spring and retainer are
installed properly.
9. Be sure the armature plate tabs are fully engaged into
th
e roll cage assembly and are resting on the cut-
grooves of the ring gear.
NOTE: Verify armature plate tabs are in the slots on
the
roll cage and are resting in the ring gear grooves.
10. Carefully install the ring gear and roll cage assembly
i
nto the gearcase housing.
