TRANSMISSION
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

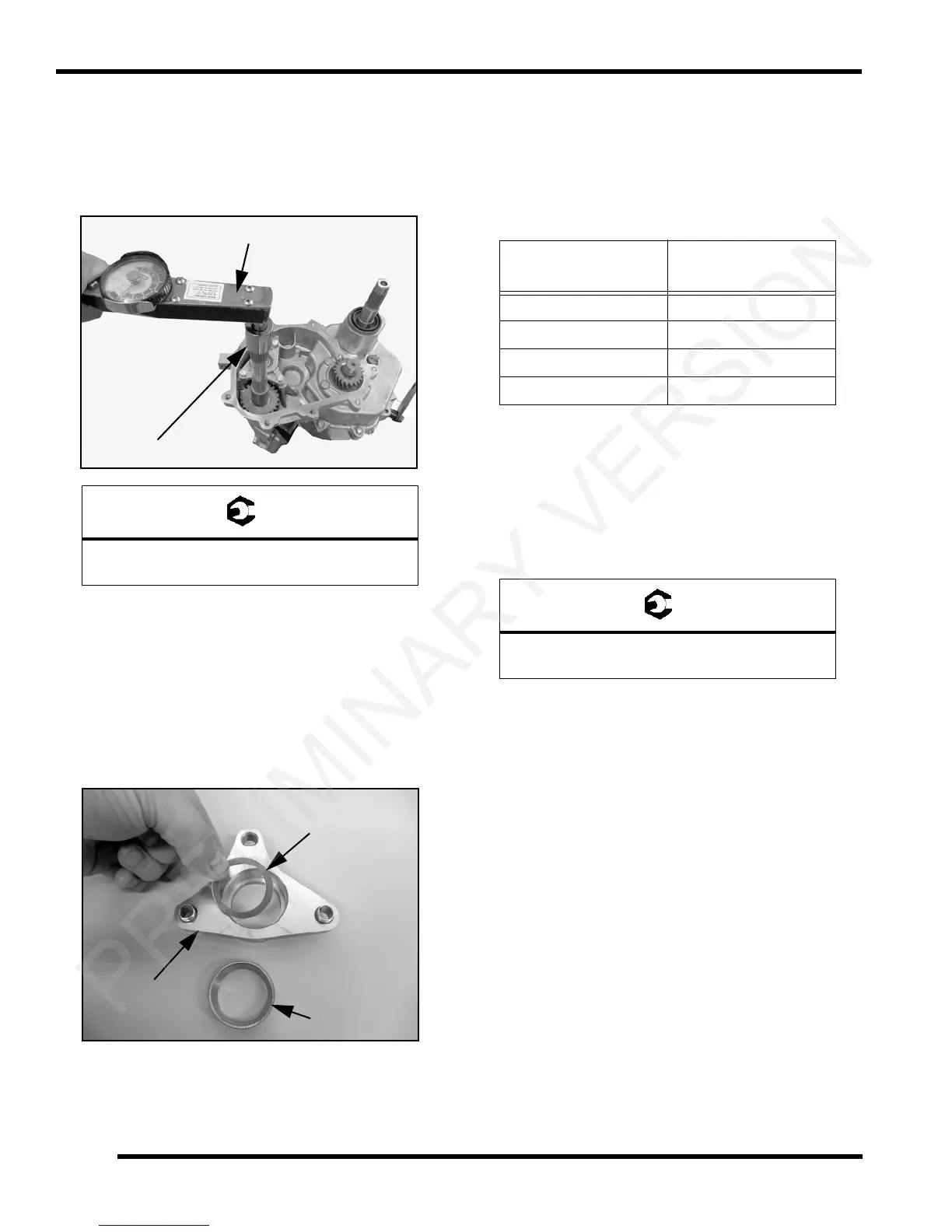

7. Place a 23 mm, 12 point socket over the splines of the
output shaft. Attach an Inch Pound (in-lbs) dial
indicator torque wrench to the socket. Check the
output pinion shaft bearing rolling preload by rotating
the output shaft both clockwise and counter-
clockwise.
8. A)
If the torque required to rotate the output shaft is
out of specification, continue to step 9.
B) If the torque required to rotate the output
shaft is
within specification, no adjustment is needed.
Proceed to step 18.
9. Remove the three bolts and the output pinion shaft
bracket f
rom the transfer case.
10. Remove the slip fit bearing race and shim(s).
11. A)
If the rolling torque measurement from step 7 was
below specification, replace the existing shim(s) with
a thicker shim or shim stack from the table below.
B) If the rolling torque measurement from step
7 was
above specification, remove or replace the existing
shim(s) with a thinner shim or shim stack from the
table below.
12. Install the selected shim(s) into the output pinion shaft
bra
cket.
13. Install the slip fit bearing race.
14. Reinstall the output pinion shaft bracket and the three
r
etaining bolts into the transfer case. Torque bolts to
specification.
15. Rotate output shaft 5-10 times both clockwise and
co
unter clockwise.
= T
Output Shaft Rolling:
4-8 in-lbs (.45 - .90 Nm)
23 mm, 12 Point
in-lbs Dial Indicator Torque Wrench
Bearing Race
Shim(s) Installed
Below Bearing Race
Output Pinion
Shaft Bracket
Shim Kit 3234567
Includes:
Quantity
.003” (.076mm) 2
.005” (.127mm) 2
.010” (.254mm) 2
.030” (.762mm) 1
= T
Retaining Bolts:
23-27 ft-lbs (31-37 Nm)
PRELIMINARY VERSION
