Polaris 2013 RANGER RZR S User Manual

10.9
ELECTRICAL
10
9924125 - 2013 RANGER RZR / RZR S / RZR 4 Service Manual
© Copyright 2012 Polaris Sales Inc.

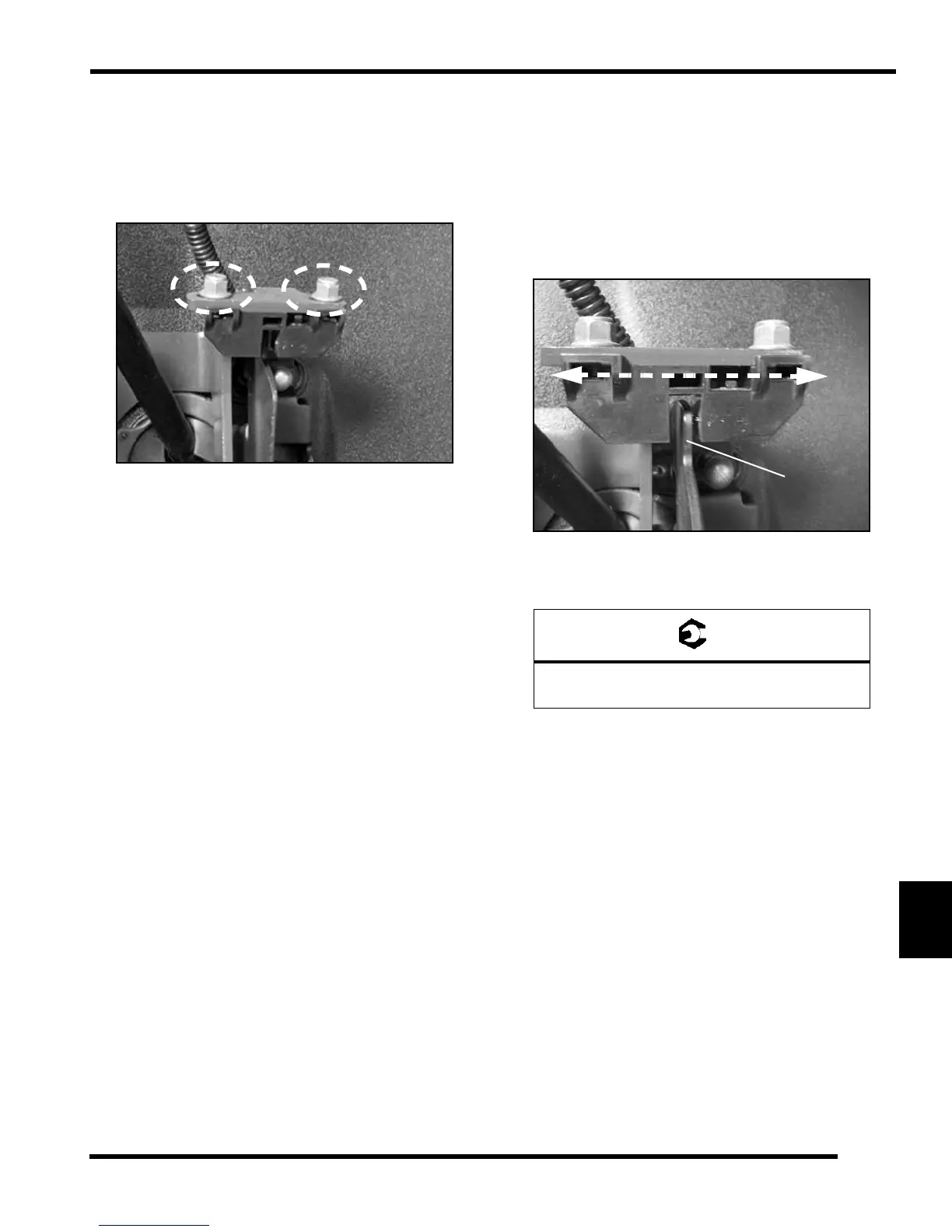

TRS Removal
1. Remove the drivers seat and disconect the negative
(-) battery cable.
2. Remove the (2) bolts securing the TRS to the throttle
pedal asm.
3. Remove the TRS from the vehicle.
TRS Installation / Adjustment
1. Place the TRS on throttle pedal asm and loosley
install the (2) fastiners.
2. The TRS mounting holes are oblonged to allow for
switch alignment. Visually center the TRS slot with
the throttle pedal blade (C). It may be necessary to
manually cycle the throttle pedal to verity the center
alignment.
3. Torque the (2) mounting bolts to specification and
connect the TRS harness connection.
4. Manually cycle the throttle pedal to verify the throttle
pedal blade is centered in the TRS slot.
5. Connect the negative (-) battery cable and install the
drivers seat.
= T
TRS Retaining Nuts:
7 ft-lbs (10 Nm)
C
