19.Install the four screws mounting the engine and PVT
intake vents. Torque screws to specification.
PVT and Engine Air Intake Screen Screws:
35 in-lb (4 Nm)

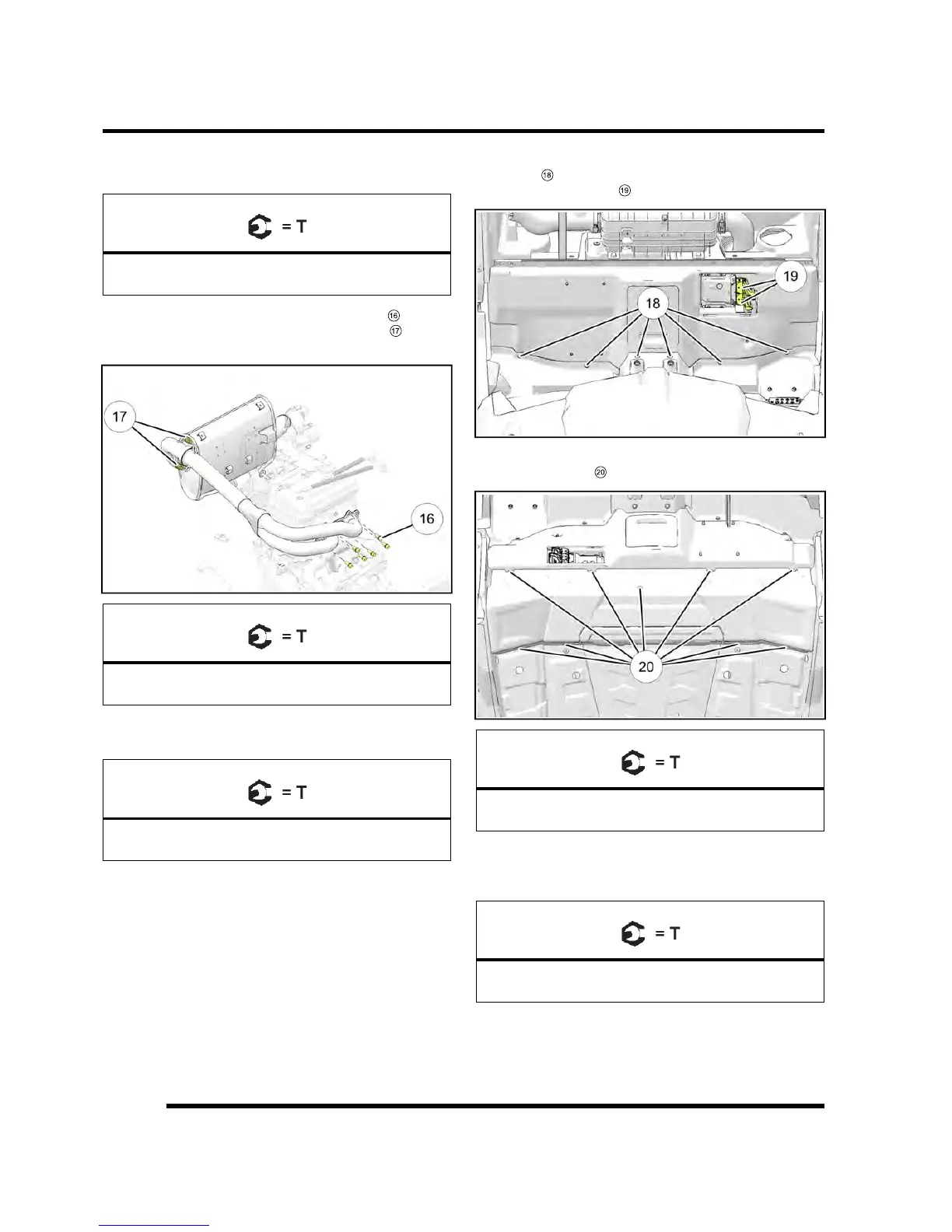

20.Install the six exhaust head pipe fasteners
16
and the
two springs retaining the pipe to the muffler
17
. Torque
screws to specification.
Exhaust Head Pipe Screws:
18 ft-lb (24 Nm)
21.Install the five bolts retaining the frame support bar
above the engine. Torque Bolts to Specification.
Frame Support Bolts:
22 ft-lb (30 Nm)
22.Install the six plastic rivets retaining the engine divider
panel
18
and install the clamp retaining the main
harness ECU leads
19
to the panel.
23.Install the nine screws for the air intake housing cover
over the air box
20
. Torque fasteners to specification.
Intake Housing Cover Screws:
8 ft-lb (11 Nm)
24.Connect the harness plugs to the ECU and install the
four screws mounting the ECU to the divider panel.
Torque screws to specification.
ECU Mounting Screws:
24 in-lb (3 Nm)
25.Install the ECU cover panel and the seat.
