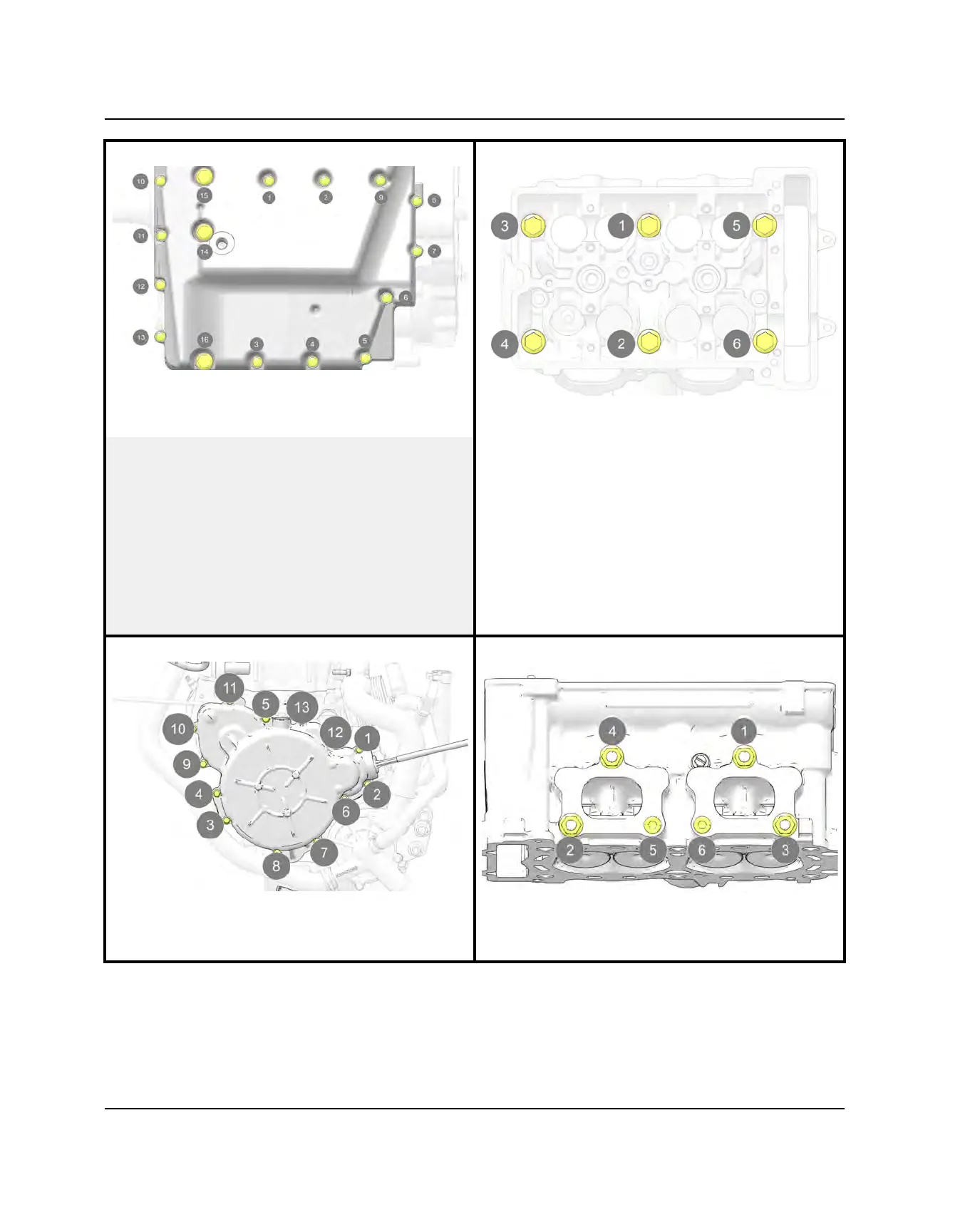

SUMP COVER / OIL PAN CYLINDER HEAD
M8
26 ft-lb (35 Nm)
Cylinder Head Bolts
Torque in sequence
Step 1: 13 ft-lbs (18
Nm)
Step 2: 26 ft-lb (35
Nm)
Step 3: Additional
180°
Step 4: Additional
180°
Step 5: M6 bolts: 7 ft-
lb (10 Nm)
M6
9 ft-lb (12 Nm)
STATOR COVER
HEAD PIPE / TURBO
Stator Cover Bolts
9 ft-lb (12 Nm)
Exhaust Head Pipe
Fasteners
18 ft-lb (24 Nm)
