9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
8.11
FRONT SUSPENSION

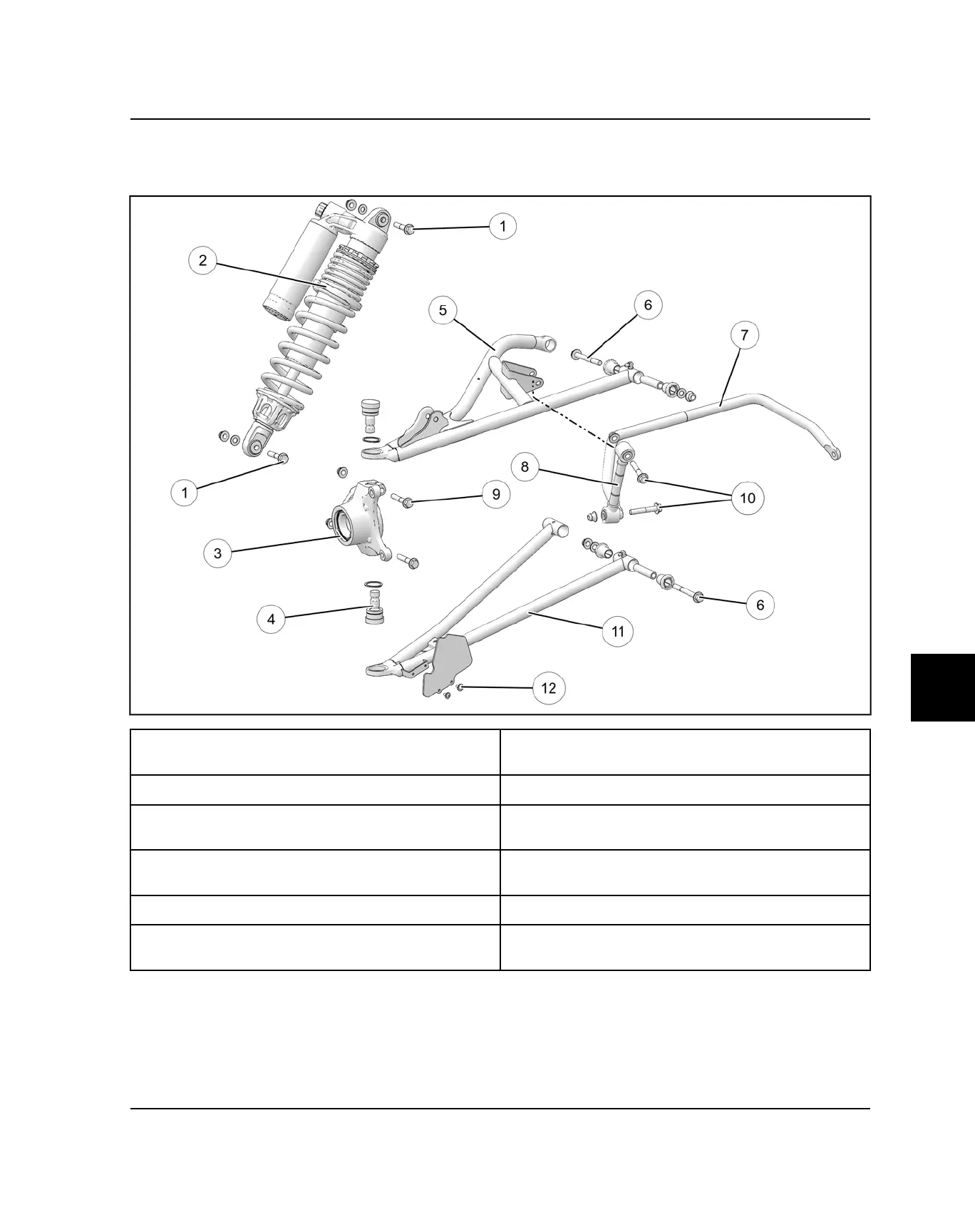

FRONT SUSPENSION ASSEMBLY VIEW
q
Shock Fasteners
42 ft-lbs (57 Nm)
u
Front Stabilizer Bar
w
Shock Assembly
i
Stabilizer Bar Link
e
Knuckle / Bearing Carrier
o
Ball Joint Fasteners
42 ft-lbs (57 Nm)
r
Ball Joint
a
Stabilizer Bar Link Fasteners
42 ft-lbs (57 Nm)
t
Upper A-Arm
s
Lower A-Arm
y
A-Arm Fasteners
42 ft-lb (57 Nm)
d
CV Guard Screws
35 in-lb (4 Nm)
