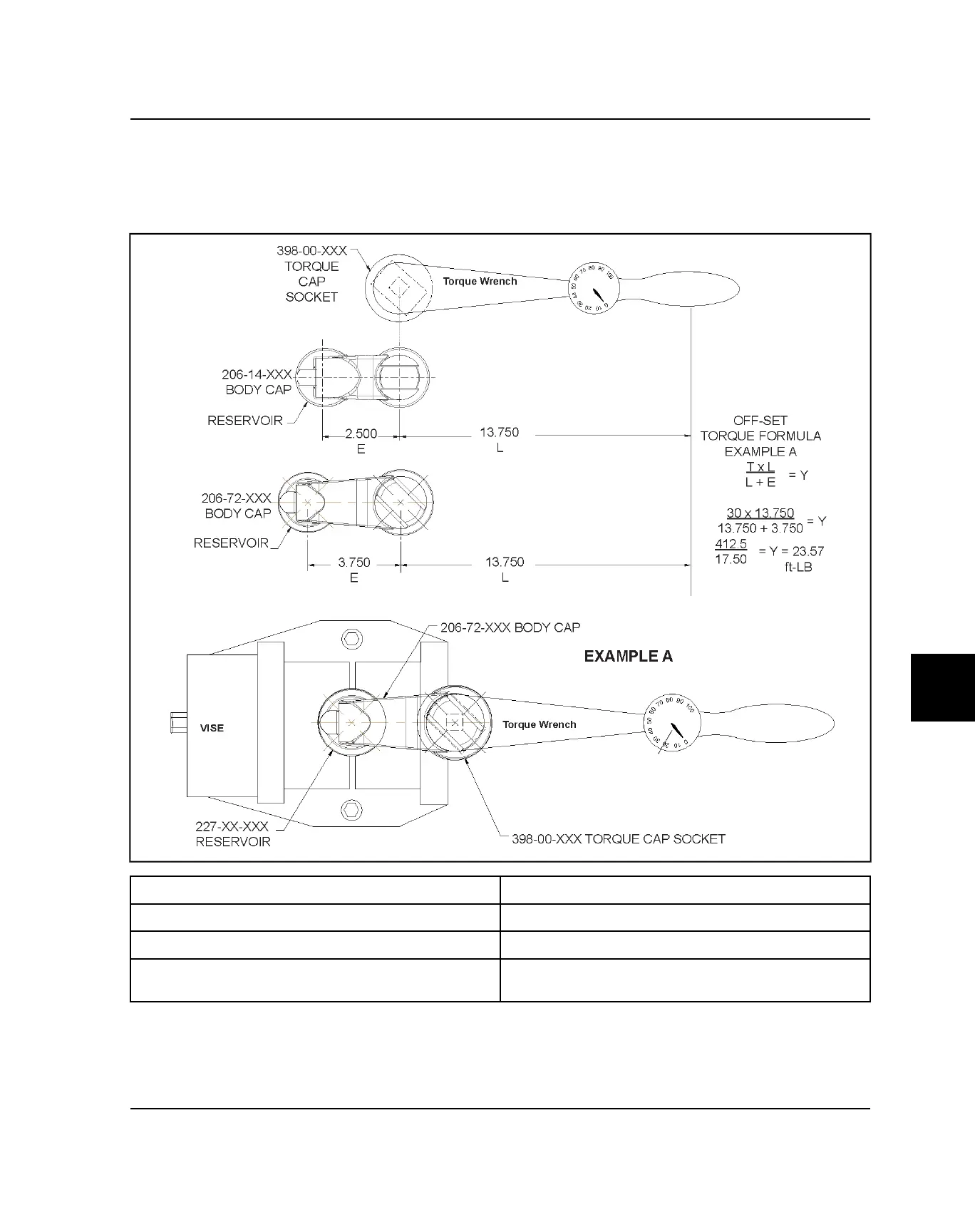

OFFSET TORQUE FORMULA
For example, if you had to torque a reservoir body on a Body Cap 206-72-XXX to 30 ft-lb
Run down Body Cap on Reservoir.
Place reservoir in Body Clamps 803–00–XXXX in a Vise.
Use Body Cap Socket 398–00–XXX to torque the body cap with a torque wrench to 24 ft-lb of torque.
Torque (T) = 30 ft-lb of desired torque
Example A
Y = Unknown Torque Value
Set Torque Wrench to 24 ft-lb
L = 13.750″
Will equal 30 ft-lb of torque applied to the reservoir.
E = 3.750″ or 2.500″
*depending on body cap
