DYNAMIX ACTIVE SUSPENSION (IF EQUIPPED)
DYNAMIX SHOCKS DISASSEMBLY / ASSEMBLY
While the Dynamix Shocks come apart similar to a FOX Podium Bypass shock, there are several differences. Refer to
the training on Univerisity of Polaris (https://lms.latitudelearning.com/home/main.aspx) and do a search for “Live Valve
Shock” for complete disassembly and assembly of a Dymanix shock.
DYNAMIX OVERVIEW

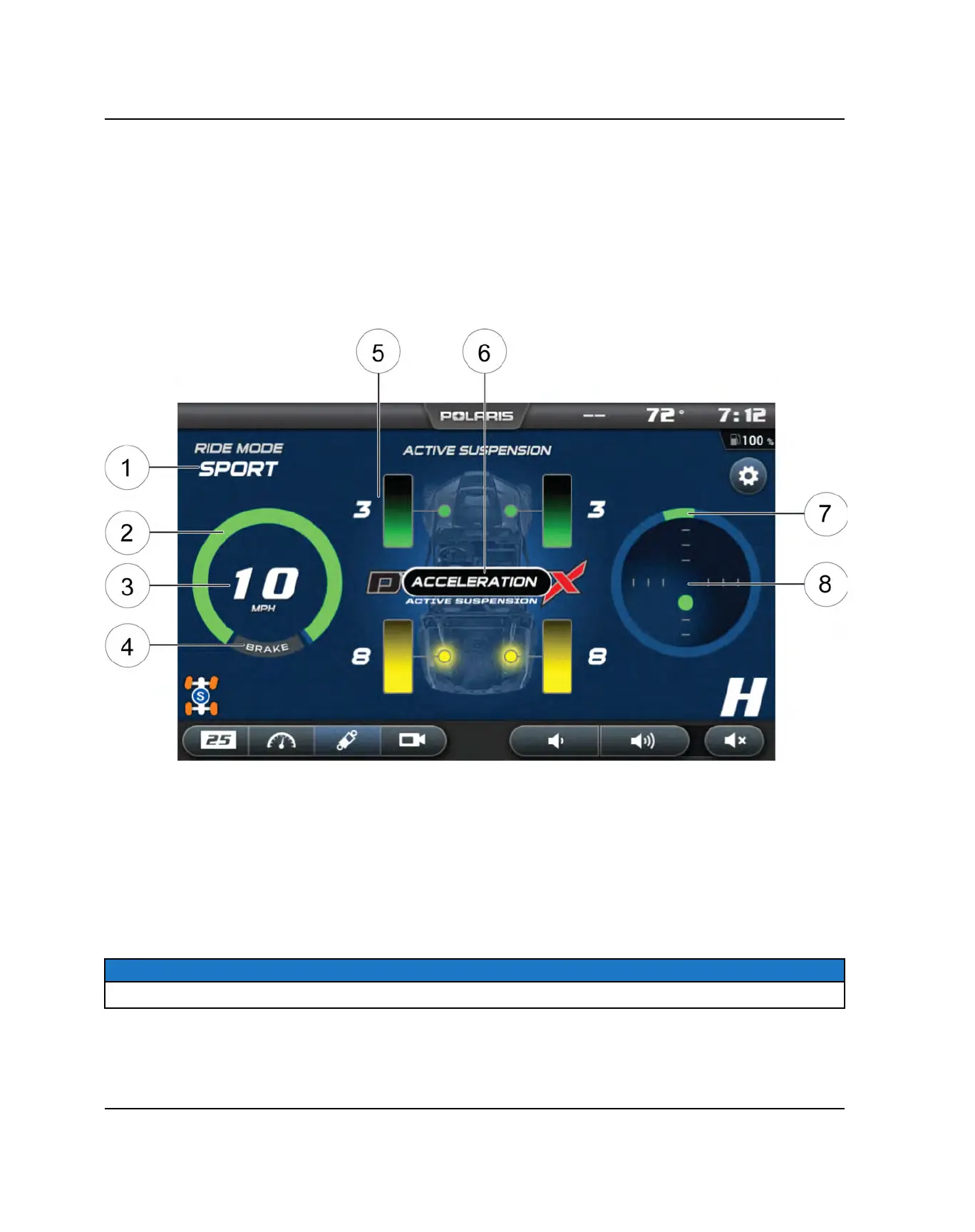

The suspension control screen provides additional information about the operation of the DYNAMIX™ Active
Suspension system.
q
Current Suspension Ride Mode
w
Accelerator Pedal Position
e
Vehicle Speed
r
Brake Status
t
Current Damping Setting (shown as both a bar gauge and an integer for each shock)
y
Active Vehicle Event State Pop-ups (Cornering, Braking, Accelerating, Airborne)
u
Steering Angle
i
G-Meter (vehicle lateral and longitudinal acceleration)
NOTE
Obtain the latest maps and trails data by going to www.polaris.com/ridecommand for updates.
